Product ID: 05-120263 – Ball for UHDE (Check Valve Component)

Description:

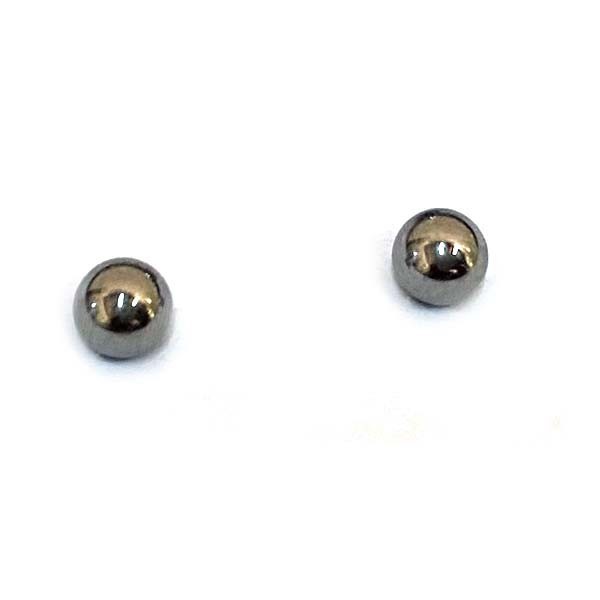

This component is a high-precision spherical ball, specifically designed as a sealing element for check valves in UHDE waterjet intensifier pumps . It serves as the moving component within the check valve assembly, working against a valve seat to create a leak-tight, one-way seal . This design allows for the controlled flow of pressurized water from the intensifier cylinder to the outlet manifold while preventing reverse flow .

Applications:

• Used as a check ball or sealing ball within the high-pressure check valve assembly of UHDE waterjet pumps .

• Suitable for ultra-high pressure waterjet systems, typically operating at 60,000 PSI (approximately 4,137 bar) or higher .

• Compatible with UHDE brand waterjet cutting systems and intensifier assemblies .

• The patented HP check valve cartridges feature exchangeable valve seats which work in conjunction with this ball element .

Features:

• High-Precision Spherical Geometry: Manufactured to exact tolerances to ensure perfect sealing contact with the valve seat .

• Wear-Resistant Material: Constructed from high-grade, durable material to withstand repeated impact, high-velocity water flow, and erosion .

• Consumable Component: The ball is a high-wear part designed to be replaced periodically to protect the more expensive check valve body .

• High-Pressure Rating: Engineered for continuous operation under extreme pressure conditions .

Maintenance:

• Critical Wear Component: The check ball is subject to wear from constant impact and water flow. A damaged or out-of-round ball will prevent the valve from sealing properly .

• Inspection: During pump overhaul, inspect the ball for signs of pitting, erosion, flat spots, or loss of spherical shape. Even minor surface damage can cause pressure loss .

• Replacement Criteria: Replace the ball immediately if any surface damage or wear is visible .

• Simultaneous Replacement: Always replace the corresponding valve seat simultaneously with the check ball. Reusing a worn seat with a new ball will compromise sealing .

• Full Depressurization: Always fully depressurize the waterjet system and follow lockout/tagout procedures before performing any maintenance .

• Water Quality: Poor water quality with contaminants accelerates wear on the ball and seat .
