Product Name: HP Seal / High Pressure Seal (Part No. 730710705)

Description:

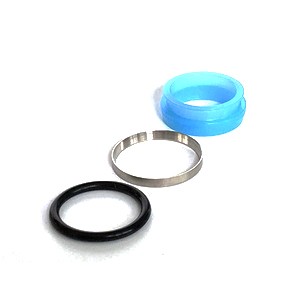

This component is a high pressure (HP) dynamic seal assembly, specifically designed for the intensifier pump in high-pressure waterjet cutting systems . It is a precision-engineered consumable component that creates a critical leak-tight seal between the reciprocating ceramic plunger and the high-pressure cylinder bore. The seal prevents ultra-high-pressure water from bypassing the plunger during the compression stroke, ensuring that full cutting pressure is delivered to the cutting head .

The HP Seal is manufactured from advanced composite materials and high-performance elastomers such as polyurethane (PU) or PTFE-based compounds . These materials are selected for their ability to withstand extreme pressure cycling, high-velocity water flow, and the erosive effects of abrasive particles in the waterjet environment . The design typically incorporates a dynamic sealing lip that is energized by system pressure to maintain contact with the plunger surface while allowing smooth reciprocating motion.

The seal operates on the principle of "critical sealing," where a microscopic layer of water is permitted to pass between the seal and plunger to provide lubrication and dissipate frictional heat, while the vast majority of water is contained within the high-pressure chamber .

Applications:

• Provides primary dynamic sealing around the reciprocating ceramic plunger within the high-pressure cylinder of the waterjet intensifier pump.

• Prevents high-pressure water bypass that would cause pressure drop and reduced cutting performance.

• Suitable for ultra-high pressure waterjet systems operating at 60,000–90,000 PSI (approximately 4,137–6,200 bar) .

• Compatible with DARDI G6D and other standard waterjet intensifier assemblies.

• Used in both pure water cutting and abrasive waterjet cutting systems.

Features:

• Ultra-High Pressure Rating: Engineered for continuous operation at pressures up to 420 MPa (60,000–90,000 PSI) without extrusion or failure .

• Wear-Resistant Material: Manufactured from high-grade composite materials and polyurethane, providing exceptional durability under high-cycle operation .

• Dynamic Sealing Design: Pressure-energized lip geometry ensures a consistent seal against the plunger as system pressure fluctuates .

• Self-Lubricating Capability: Allows a controlled microscopic water film to pass, reducing friction and heat generation during plunger reciprocation .

• High Fatigue Resistance: Designed to withstand millions of pressure cycles without loss of elasticity or sealing integrity.

• Chemical Compatibility: Resistant to water, hydraulic fluids, and common water treatment additives.

• Service Life: Under normal operating conditions with proper water quality and filtration, the seal provides 300–1,000 hours of service life .

Maintenance:

Performance Monitoring Indicators:

• Water Leakage from Weep Holes: Visible water dripping from the pump's weep or drain hole is a primary indicator that the HP seal requires immediate replacement.

• Pressure Drop: Inability to maintain rated cutting pressure (typically a drop of 10% or more from initial operating pressure) indicates seal wear.

• Increased Pump Cycling Frequency: If the intensifier cycles more frequently than normal, the HP seal may be bypassing water.

• Water Contamination in Hydraulic Oil: Milky or discolored hydraulic oil indicates that high-pressure water has breached the seal and entered the oil system. This requires immediate seal replacement and oil change.

Inspection Procedures:

• Regular Monitoring: During daily operation, check the pump weep hole for any signs of water leakage. Even minor dripping indicates seal wear.

• Pressure Check: Monitor the cutting pressure gauge during operation. A gradual or sudden drop in pressure suggests HP seal degradation.

Replacement Procedures:

• Critical Wear Component: The HP seal is a high-wear consumable part that requires periodic replacement. Do not wait for catastrophic failure; replace proactively.

• Expected Service Life: Under normal operating conditions with proper water quality, seals typically provide 300–1,000 hours of service life . Actual lifespan depends on water flow, pressure, temperature, and water quality.

• Full Depressurization: Always fully depressurize both the hydraulic system and the high-pressure water system before replacing the HP seal. Follow lockout/tagout procedures.

• Clean Area Maintenance: Perform seal replacement in a designated clean area to prevent contamination of new seals with debris or abrasive particles.

• Use Disposable Gloves: Wear clean disposable gloves during installation to prevent natural oils and contaminants from being introduced to seal materials .

• Associated Component Inspection: When replacing the HP seal, thoroughly inspect the ceramic plunger surface and the high-pressure cylinder bore for scoring, pitting, scratching, or uneven wear. A damaged plunger or cylinder will rapidly destroy a new seal.

• Surface Preparation: Thoroughly clean the cylinder bore, plunger surface, and seal grooves using a soft cloth and low-pressure water or isopropyl alcohol. Remove all debris, old seal residue, and mineral deposits. Do not use abrasive tools that could scratch sealing surfaces .

• Lubrication: Apply a generous amount of manufacturer-recommended high-pressure grease to the new seal during installation to prevent dry start-up and reduce initial friction.

• Use Proper Installation Tools: Use manufacturer-specified seal removal and installation tools to avoid damaging the seal lips or scratching the cylinder bore during the procedure.

• Complete Seal Replacement: Replace the HP seal as a complete assembly. Do not attempt to reuse individual components from an old seal.

• Water Quality Impact: Poor water quality with contaminants, hardness, or inadequate filtration accelerates seal wear . If seals require replacement too frequently, investigate and improve water filtration/treatment systems.

• Storage: Store spare HP seals in a clean, dry environment in sealed protective packaging away from direct sunlight, ozone, heat, and chemicals to prevent material degradation before use .
