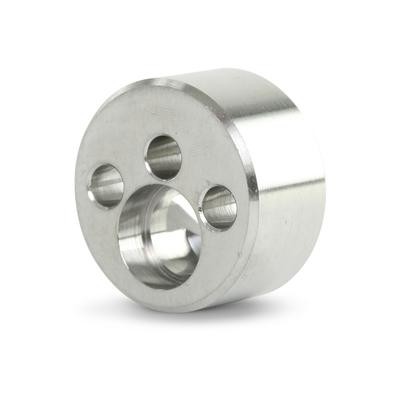

Product Name: Check Valve Retainer, Cylinder-side (Part No. 300731)

Description:
This component is a check valve retainer, specifically designed for the cylinder-side of the check valve assembly in high-pressure waterjet cutting systems . It is a precision-machined retaining component that secures the internal sealing elements—including the ceramic ball, valve seat, spring, and seals—within the check valve body on the side that connects directly to the high-pressure cylinder. The retainer is typically manufactured from high-strength, corrosion-resistant materials such as stainless steel or copper beryllium alloy to withstand extreme pressure cycling (60,000–94,000 PSI) and prevent thread galling. This component is critical for maintaining proper alignment and preload of the sealing stack, ensuring leak-free, one-way flow control .

Applications:

• Retains internal check valve components (ceramic ball, seat, spring, seals) within the cylinder-side of the check valve assembly

• Provides a secure interface between the check valve body and the high-pressure cylinder

• Suitable for ultra-high pressure waterjet systems operating at 60,000 PSI and above

• Compatible with OMAX, AccuStream, and other standard waterjet intensifier systems

Features:

• High-Strength Material: Manufactured from corrosion-resistant alloy (stainless steel or copper beryllium) for excellent strength and anti-galling properties under high torque

• Precision-Machined Threads: Ensures smooth engagement with the check valve body and accurate torque application for proper seal compression

• Cylinder-Side Design: Specifically configured for the interface between the check valve assembly and the high-pressure cylinder

• OEM Compatibility: Direct replacement part for OMAX #300731 and AccuStream systems

• Critical Retaining Function: Secures the internal sealing stack, maintaining proper preload for leak-free check valve operation

Maintenance:

Failure Diagnosis:

• External Water Leakage: Visible water weeping from the cylinder-side connection indicates the retainer may be loose or the sealing stack is compromised

• Thread Damage: Stripped, galling, or cross-threaded threads prevent proper tightening and sealing

• Difficulty Tightening: If the retainer requires excessive force or feels gritty during threading, threads may be damaged

• Visible Cracks or Deformation: Any cracking or distortion of the retainer warrants immediate replacement

Inspection and Replacement Procedures:

• Regular Inspection: Periodically inspect the retainer for signs of thread wear, galling, or surface damage during pump maintenance

• Thread Care: Before reassembly, carefully inspect threads for wear, corrosion, or damage. Clean threads thoroughly with a soft brush

• Torque Compliance: Tighten the retainer to the specific torque value listed in the equipment service manual to ensure proper seal compression without damaging threads

• Thread Lubrication: Apply a thin layer of high-pressure thread lubricant or anti-seize compound to threads during reassembly to prevent galling

• Replace if Damaged: Replace the retainer immediately if threads are damaged, cracks are visible, or the retainer shows signs of deformation

• Full Depressurization: Always fully depressurize the waterjet system and follow lockout/tagout procedures before loosening or removing the retainer

• Use Proper Tools: Use the correctly sized wrench on the retainer's wrench flats. Do not use pipe wrenches or pliers that could damage the surfaces

• Seal Replacement: When reinstalling, always replace associated O-rings and seals to ensure leak-free operation

• Component Note: This retainer works in conjunction with the check valve body (308102) and ceramic ball (200904) as part of the complete cylinder-side check valve assembly
