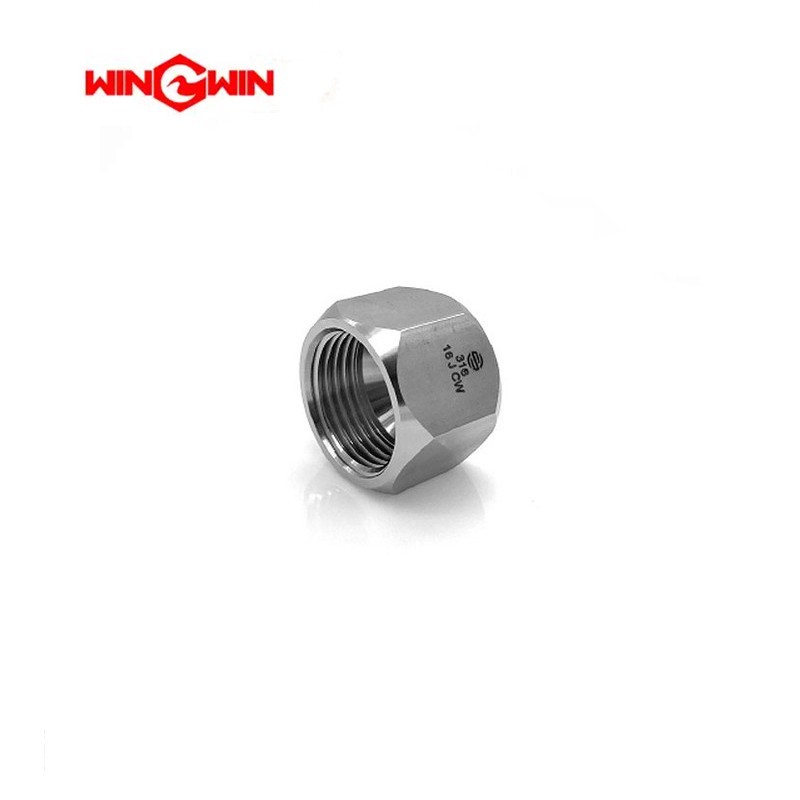

Product Name: Cap, JIC Swivel, .75 (Part No. 05069976)

Description:
This component is a protective cap with a swivel design for .75 inch (3/4") JIC (Joint Industry Council) 37° flare hydraulic fittings. It is a threaded cap that screws onto the male end of a JIC fitting or hose end to protect the precision 37° sealing flare surface from physical damage, contamination, and debris.

The cap features a "swivel" design, meaning the cap body rotates independently of the threaded portion, which makes installation and removal easier in tight spaces and prevents twisting of attached hoses. It is typically manufactured from steel with a corrosion-resistant coating such as zinc plating to withstand harsh industrial environments.

This component is listed as Item 8 in Table 12-14 of the Reservoir Assembly 72152878 for waterjet cutting systems, with a quantity of 1 required per assembly.

Applications:

• Protects .75 inch JIC male fittings and hose ends from contamination during maintenance, transport, or storage

• Seals open hydraulic ports when components are disconnected, preventing fluid leakage and dirt ingress

• Used on the reservoir assembly (72152878) of waterjet cutting systems as a protective closure

• Compatible with 3/4" JIC 37° flare hydraulic connections in waterjet intensifier pumps

Features:

• JIC 37° Flare Compatibility: Specifically designed to protect .75 inch JIC (37° flare) male fitting ends

• Swivel Design: The cap body rotates freely, allowing easy installation and removal in confined spaces without twisting attached components

• Protective Function: Prevents damage to precision sealing surfaces, keeping threads and flare seats clean from abrasive dust and debris

• Corrosion-Resistant: Typically manufactured from steel with zinc plating or stainless steel for durability in moist waterjet environments

• Direct OEM Replacement: Listed as Item 8 in the Reservoir Assembly parts diagram (72152878)

Maintenance:

Usage and Inspection:

• When disconnecting hydraulic lines, install the cap immediately on the open male fitting to prevent contamination ingress and fluid leakage

• Inspect the cap for cracks, deformation, or thread damage before installation. A damaged cap will not seal properly and may cross-thread onto the fitting

• Check the internal sealing area for debris or abrasive dust that could transfer to the fitting when installed

Cleaning:

• Clean the cap with a soft cloth and compatible solvent. Remove all debris, old seal residue, and abrasive dust

• Do not use abrasive tools that could damage the threads or sealing surfaces

Replacement Guidelines:

• Replace the cap immediately if threads are damaged, the cap is cracked or deformed, or if the cap no longer threads on smoothly

• Caps are typically reusable, but should be replaced if the protective function is compromised

• While the cap itself is not a high-wear consumable, it should be inspected during routine maintenance and replaced if damage is evident

• Cross-reference part numbers: 05069976 is interchangeable with JIC .75 swivel caps from various manufacturers conforming to SAE J514 standards

Full Depressurization:

• Before installing or removing the cap, fully depressurize the hydraulic system and follow lockout/tagout procedures
