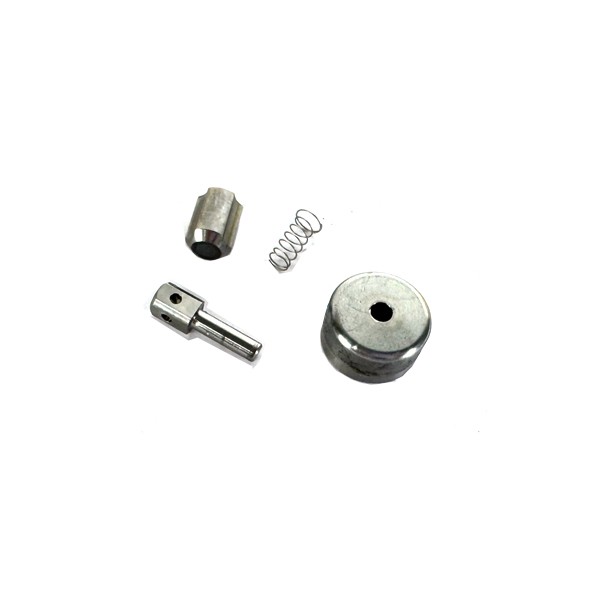

Product Name: Plunger Spring Guide (Part No. 20457372)

Description:
This component is a plunger spring guide, also referred to as a spring seat or spring retainer, designed for the shift cable assembly within the pilot valve mechanism of a waterjet intensifier pump. It is a precision-machined component that seats the return springs (typically an inner and outer spring set) and ensures they remain correctly positioned and aligned during operation. The spring guide is a critical piece of the shift mechanism that transfers the mechanical signal from the pilot valve to the main shift valve, controlling the intensifier's reciprocating motion.

Unlike the compression springs themselves, which are considered consumable wear items, the spring guide is a more durable component. Its primary function is to provide a stable seat and guide surface, preventing the springs from buckling, binding, or becoming misaligned under the high-frequency cycling inherent in waterjet operation.

Applications:

• Serves as the retention and alignment mechanism for the pilot valve return springs

• Positioned within the shift cable housing at the end nearest the pilot valve

• Guides the actuating plunger that physically shifts the main hydraulic valve

• Used during major intensifier pump overhauls and shift mechanism repairs

Features:

• Precision-Machined Construction: Manufactured to exact tolerances to ensure proper seating of the inner and outer compression springs

• Wear-Resistant Material: Designed to withstand high-cycle mechanical stress without deformation

• Durable Component Classification: Unlike the compression springs (which have defined replacement intervals), the spring guide is not a high-wear consumable but requires periodic inspection

• Critical Alignment Component: Ensures the actuating plunger moves freely and concentrically within the spring stack

Maintenance:

During Shift Cable Service:

• Inspect for Wear or Damage: When servicing the shift cable assembly, inspect the spring guide for signs of deformation, cracking, or excessive wear. The guide must be free of burrs or surface damage that could interfere with spring movement.

• Clean Thoroughly: Remove all debris, old grease, and contaminants from the spring guide and the surrounding cavity.

• Inspect the Actuating Plunger: Check that the actuating plunger is not bent, the ends are not mushroomed, and the length is approximately 2.75 inches [69.9 mm]. If the plunger is damaged, the spring guide may also be compromised.

Spring Inspection (Associated Components):

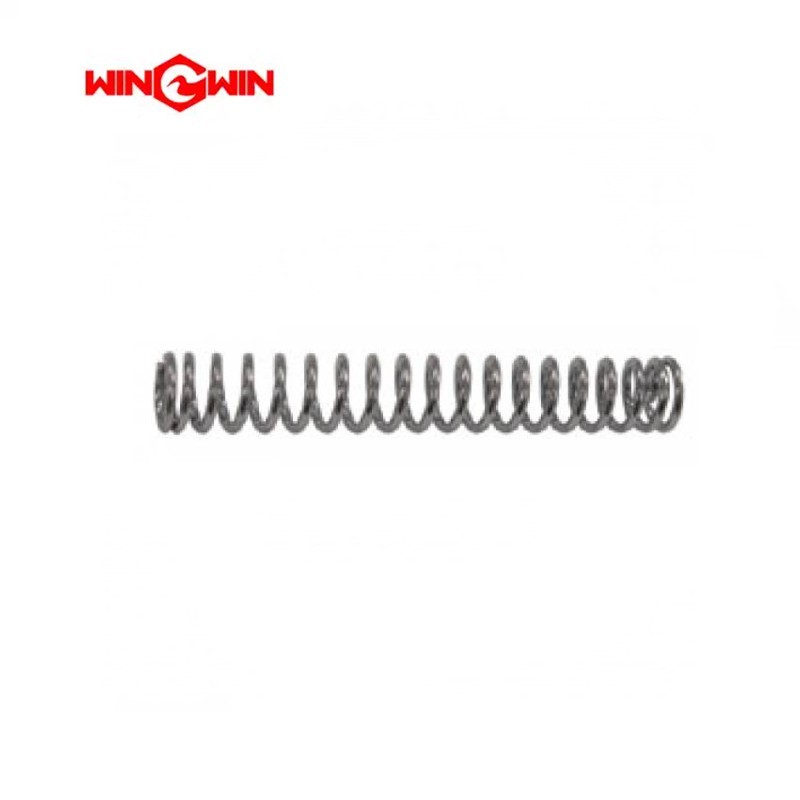

• Check the compression springs for damage: the small diameter spring must be at least 1.625" [41.275 mm] long and the larger diameter spring must be at least 2.0" [50.8 mm] long. Replace springs that are bent, have become compressed, or do not meet length specifications.

• The spring guide works in conjunction with the shift cable housing, split pin, and actuating plunger as part of the complete shift mechanism.

Reassembly Guidelines:

• Assemble the springs over the actuating plunger, then fit the large spring onto the lower end of the shift cable housing. Ensure the springs seat properly on the spring guide.

• The shift cable must have freedom of movement after assembly; binding indicates misalignment or component damage.

Full Depressurization (Critical): Before any maintenance, fully depressurize the waterjet system (high-pressure water, hydraulic system, and air supply) and follow lockout/tagout procedures.
