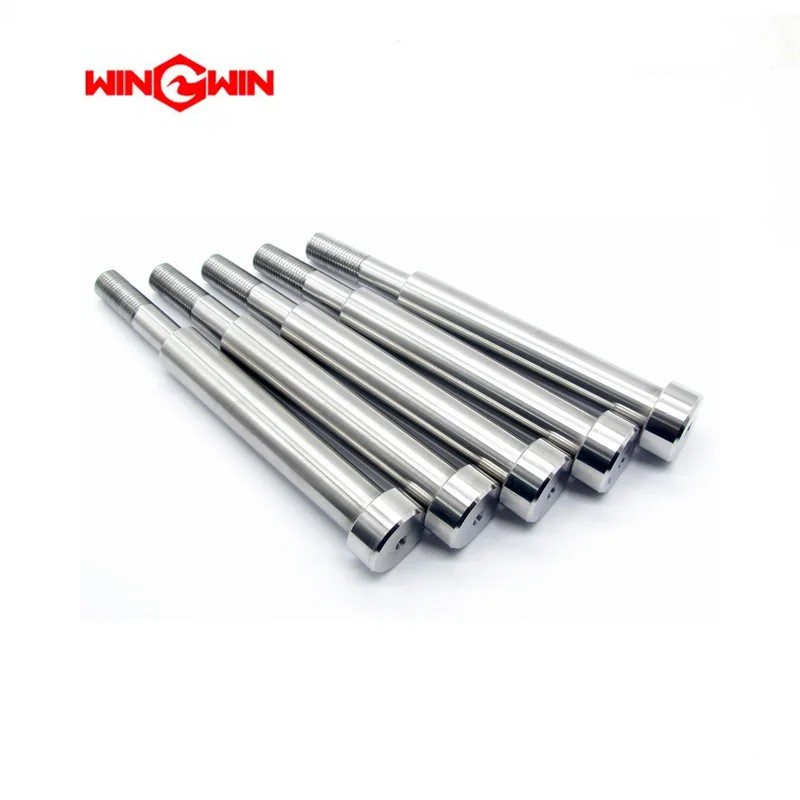

Product Name: Complete Plunger / Plunger Complete (Part No. CP022004/220)

Description:
This component is the "Plunger Complete," also known as a plunger assembly or ceramic plunger, specifically designed for BFT waterjet intensifier pumps . As a core component within the high-pressure cylinder, its primary function is to reciprocate at ultra-high speed to pressurize incoming water, converting hydraulic energy into the cutting jet .

Constructed with a stainless steel core and an advanced ceramic coating (e.g., Zirconia), the plunger provides extreme hardness, a mirror-polished surface, and superior corrosion resistance . This design minimizes friction on the high-pressure seals, significantly reducing wear and extending the service life of both the plunger and the dynamic seals. It is precision-ground to OEM tolerances to ensure perfect alignment within the cylinder bore.

Listed as Item 5 in the CP022001/2 Intensifier parts diagram , this component is rated for operation at 4,137 bar (approximately 60,000 PSI) and higher . It is fully compatible with other components in the CP022001/2 system, including the Piston Sealing (XK121/220) and Wear Ring (XF56/220), and serves as a direct OEM replacement for BFT waterjet equipment.

Applications:

• Primary pressure-generating element within BFT waterjet intensifier pumps

• Converts hydraulic energy into ultra-high-pressure water flow for precision cutting

• Installed inside the high-pressure cylinder assembly

• Used during scheduled preventive maintenance or when plunger wear is detected

• Suitable for ultra-high pressure waterjet systems operating at 60,000 PSI (4,100 bar) and above

Features:

• Ceramic-Coated Construction: Premium stainless steel core with advanced ceramic coating for exceptional durability and wear resistance

• High-Pressure Rating: Engineered for continuous operation at up to 60,000 psi (4,100 bar)

• Precision-Machined Surface: Low-friction surface finish minimizes seal wear and ensures consistent pressure output

• OEM-Level Precision: Manufactured to exact tolerances for perfect alignment and reliable fitment

• Cross-Compatibility: Designed for BFT intensifier assemblies CP022001/2 and HT022012/172

• Direct Replacement: Listed as Item 5 in CP022001/2 intensifier parts list; replaces OEM part CP022004/220

Maintenance:

Failure Diagnosis (When to Replace):

• Pressure Drop: Inability to maintain rated cutting pressure indicates plunger surface wear or scoring

• Increased Seal Wear: Premature failure of dynamic seals often indicates a worn or damaged plunger surface

• Visible Surface Damage: During disassembly, inspect the plunger surface for scoring, scratching, pitting, or diameter reduction. Any visible damage warrants immediate replacement

• Water Contamination in Hydraulic Oil: Milky hydraulic oil may indicate plunger seal failure allowing water intrusion

• External Water Leakage: Water weeping from the pump weep hole suggests plunger or seal failure

• Scheduled Preventive Maintenance: Replace the plunger according to the manufacturer’s recommended service intervals based on operating hours

Inspection and Replacement Guidelines:

• Full Depressurization (Critical): Before any maintenance, fully depressurize the waterjet system (high-pressure water, hydraulic system, and air supply) and follow lockout/tagout procedures

• Clean Area Maintenance: Perform replacement in a designated clean area to prevent contamination

• Surface Inspection: Under good lighting, inspect the plunger surface for scoring, pitting, or wear. Even minor surface damage warrants replacement

• Cylinder Bore Inspection: When replacing the plunger, inspect the high-pressure cylinder bore for scoring, pitting, or out-of-round conditions. A damaged cylinder will rapidly destroy a new plunger

• Simultaneous Seal Replacement: When replacing the plunger, always replace all associated dynamic seals, O-rings, and backup rings simultaneously

• Lubrication: Apply manufacturer-recommended high-pressure grease to the plunger surface and seals during installation to prevent dry start-up

• Proper Handling: The plunger is heavy and precision-ground. Handle with care to avoid dropping or impacting the ceramic-coated surface

• Torque Compliance: When reassembling, tighten all retaining components to the specific torque values listed in the equipment service manual

Cross-Reference Information:

• BFT #: CP022004/220

• Item 5 in Intensifier Assembly CP022001/2

• Also referenced in HT022012/172 intensifier parts list

• Works with: Piston Sealing (XK121/220), Wear Ring (XF56/220)

• Component of BFT waterjet pump wet-end assembly
