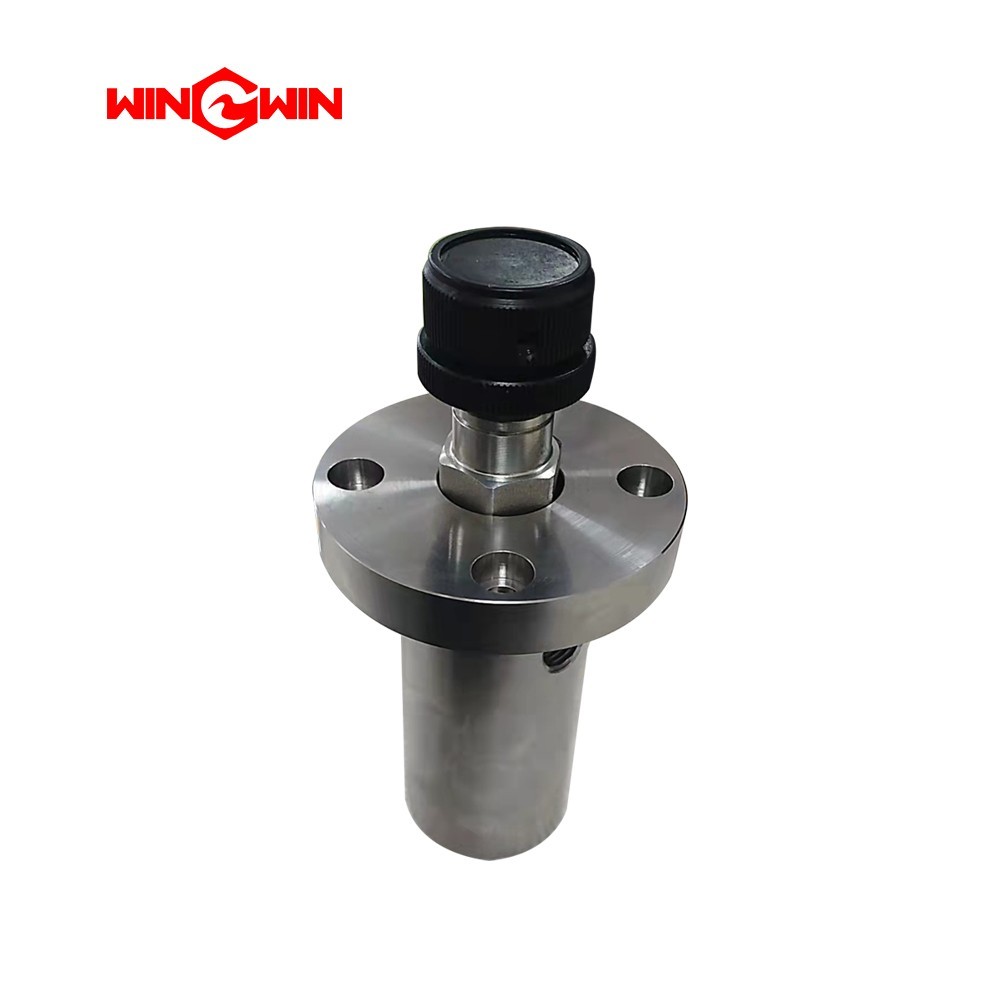

Product Name: Pressure Control Valve (Racine) / Hydraulic Pressure Reducing Valve – Part Nos. 20460183 / 400027-1

Description:
This component is a hydraulic pressure control valve manufactured by Racine, specifically designed for the hydraulic manifold of a high-pressure waterjet intensifier pump. It functions as a pressure reducing or relief valve, tasked with maintaining a stable and precise hydraulic pressure supply to the system. By regulating the flow and pressure of the hydraulic fluid, it ensures the intensifier pump operates at its designated pressure, providing consistent cutting force. This valve is crucial for protecting the hydraulic circuit from damaging pressure spikes that could lead to seal failure or component damage.

Applications:

• Mounted directly on the hydraulic manifold (manifold assembly) of the waterjet intensifier pump.

• Regulates the hydraulic oil pressure supplied to the directional control valve and the main hydraulic cylinder .

• Serves as the primary over-pressure protection for the low-pressure hydraulic circuit.

• Suitable for 60k-94k PSI waterjet intensifier systems.

Features:

• Racine Precision Engineering: Manufactured to high tolerances for reliable and accurate pressure regulation.

• Pressure Limiting Function: Automatically diverts flow when system pressure exceeds the set limit, preventing component damage.

• Vibration Resistance: Designed to withstand the high-frequency pressure cycling inherent in waterjet intensifier operation.

• Adjustability: Typically features an adjustment mechanism (e.g., a lock nut and set screw) to calibrate the valve’s set pressure to the pump manufacturer’s specifications.

• Direct OEM Replacement: Interchangeable with OEM part numbers 20460183 and 400027-1 for H2O Jet and compatible waterjet systems.

Maintenance:

Failure Diagnosis (When to Replace or Adjust):

• Inability to Build Pressure: If the intensifier pump fails to reach the required cutting pressure, a malfunctioning pressure control valve could be bypassing flow back to the tank .

• Pressure Instability (Oscillation): Fluctuating cutting pressure or erratic intensifier cycling ("chatter") can indicate a worn or sticky valve spool or a damaged spring .

• Overheating Hydraulic System: If the hydraulic oil temperature rises abnormally, the valve may be stuck in a partially open bypass state, creating heat.

• External Leakage: Visible hydraulic oil leaking from the valve body or adjustment stem indicates seal failure.

• Excessive Noise: A squealing or chattering noise from the valve is a sign of mechanical wear or incorrect system pressure settings .

Inspection and Adjustment Guidelines:

• Full Depressurization (Critical): Before any maintenance, place the main electrical disconnect in the OFF position, fully depressurize both the high-pressure water system and the hydraulic system, and follow lockout/tagout procedures.

• Pressure Gauge Verification: Use a calibrated pressure gauge on the hydraulic manifold to diagnose the valve's performance. Note the system pressure at idle and under load .

• Check for Contamination: Dirt or metal particles lodged in the valve spool are a common cause of malfunction. If contamination is found, the entire hydraulic oil system should be flushed.

• Torque Compliance: If the valve is replaced, tighten the mounting bolts and hydraulic fittings to the specific torque values listed in the equipment service manual.

• Replacement Criteria: Due to the precision nature of the spool and seat, a worn or damaged pressure control valve is typically replaced as a complete unit rather than rebuilt in the field. Replace the valve if it fails to hold set pressure, leaks externally, or is physically damaged.

Cross-Reference Information:

• H2O Jet / Racine #: 20460183

• Alternative #: 400027-1

• Primary component of the Hydraulic Manifold Assembly.
