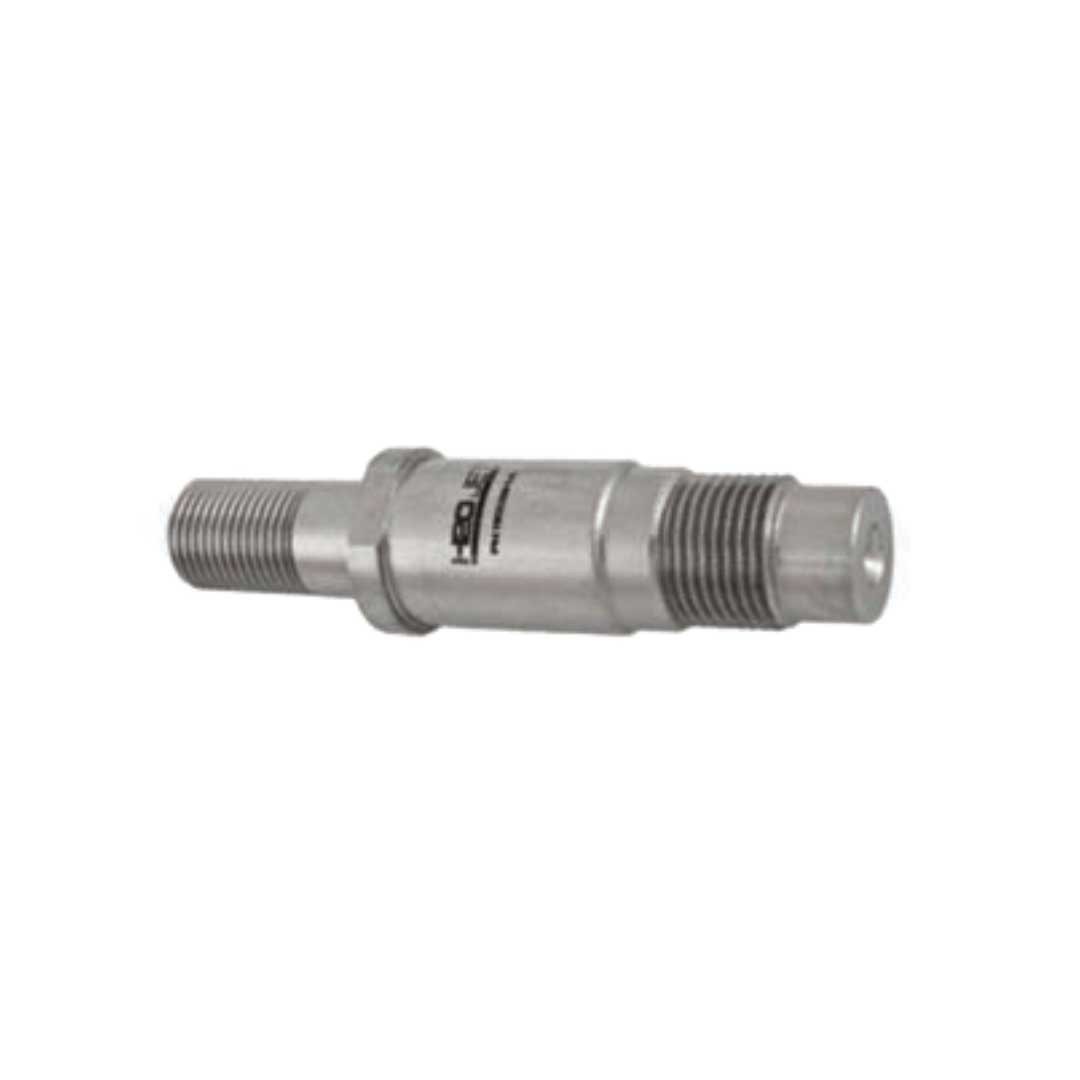

Product Name: Advantage EP Nozzle Body (Part No. 190026-1)

Description:
This component is the main structural housing of the cutting head assembly for an extreme pressure (EP) waterjet system, rated for operation at 94,000 PSI (approximately 6,480 bar). The nozzle body serves as the central manifold that aligns and secures critical internal components, including the water orifice (jewel nozzle), the mixing chamber, and the focusing tube (mixing tube). Its primary function is to provide a perfectly coaxial flow path for high-pressure water and abrasive to ensure a coherent, high-velocity cutting stream.

Applications:

• Main housing for the cutting head assembly in EP waterjet systems

• Aligns the water orifice with the mixing tube for optimal jet coherence

• Provides the mounting interface for the pneumatic on/off valve (mini valve) and the focusing tube retainer

• Suitable for cutting hard materials (metal, stone, composites) under continuous high-pressure operation

Features:

• High-Pressure Rating: Engineered specifically for 94,000 PSI (6,200 bar) extreme pressure systems

• Corrosion-Resistant Construction: Machined from hardened stainless steel to withstand abrasive environments

• Precision Alignment: Internal bore machined to exact tolerances to ensure the waterjet and mixing tube are perfectly coaxial

• Integrated Abrasive Port: Features a side inlet designed for the Venturi effect to draw garnet into the water stream

Maintenance:

• Component Inspection: Regularly inspect the internal bore for signs of erosion or scoring. Excessive wear will degrade cutting performance and require body replacement

• Seal Replacement: When servicing the cutting head, always replace the O-rings and high-pressure seals that interface with the nozzle body

• Alignment Check: Ensure retaining nuts (e.g., Gland Nut 190026-3) are tightened to manufacturer's specified torque to maintain proper alignment and prevent leaks

• Full Depressurization: Before any disassembly or maintenance, always fully depressurize the waterjet system and follow lockout/tagout procedures
