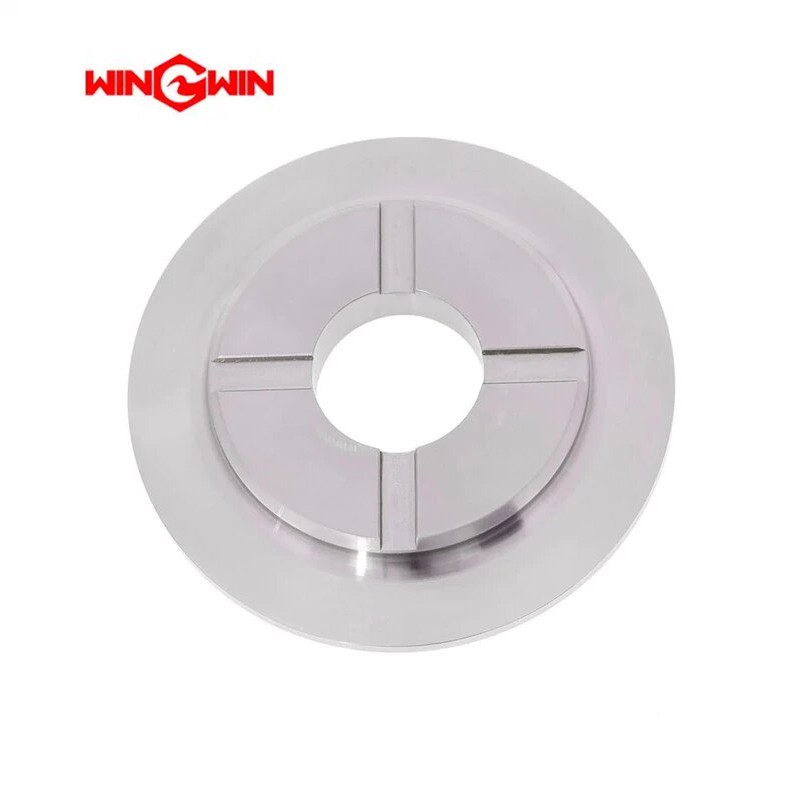

Product Name: Plunger Retainer / Plunger Retainer Ring (Part No. 20458062)

Description:
The Plunger Retainer (P/N 20458062) is a precision-engineered retaining ring or locking component specifically designed for the high-pressure intensifier pump assembly in waterjet cutting systems. As a critical component listed in the intensifier assembly (P/N 20458728), its primary function is to securely hold and position the reciprocating ceramic plunger (P/N 20457912) within the hydraulic piston assembly.

Manufactured from hardened steel, this retainer ensures proper axial alignment of the plunger during high-speed reciprocating motion, preventing axial displacement and maintaining mechanical stability under ultra-high pressure operation up to 60,000–94,000 PSI (approximately 4,137–6,480 bar). It is designed to withstand extreme pressure cycling, vibration, and mechanical stress while providing a secure, leak-free connection between the plunger and the hydraulic piston.

During pump disassembly, the plunger is secured by a retainer mechanism that includes retainer pins (typically 6 pins) that grip the plunger button, and the plunger retainer works in conjunction with these components to hold the plunger firmly in place.

Applications:

• Secures and aligns the high-pressure ceramic plunger (20457912) within the hydraulic piston assembly

• Works in conjunction with retainer pins (typically 6 pins) that grip the plunger button to hold the plunger securely

• Part of the intensifier assembly (20458728) in waterjet pump systems

• Used during plunger replacement, pump rebuilds, and major maintenance procedures

• Rated for continuous operation at 60,000–94,000 PSI (4,137–6,480 bar)

• Compatible with KMT, FLOW, OMAX, WSI, BFT, and other standard waterjet systems

Features:

• Hardened Steel Construction: Provides exceptional mechanical strength, fatigue resistance, and corrosion protection for high-cycle operation

• Precision-Machined Tolerances: Ensures a perfect fit with the plunger rod, piston, and seal assembly, minimizing friction and preventing vibration loosening

• Critical Positioning Component: Secures the plunger button and prevents axial movement during reciprocating motion

• Semi-Wear Part Classification: Under normal operating conditions, the plunger retainer is not a high-wear consumable; however, it should be inspected for damage or wear during major overhauls

• Direct OEM Replacement: Interchangeable with OEM part number 20458062 as listed in intensifier assembly parts diagrams

Maintenance:

Failure Diagnosis (When to Inspect or Replace):

• During Plunger Replacement: The plunger retainer should be inspected whenever the plunger (20457912) is removed and replaced

• Hydraulic Performance Issues: Loss of cutting pressure or erratic intensifier cycling may indicate plunger retention issues

• Visible Wear or Damage: During disassembly, inspect the retainer for signs of deformation, cracking, galling, or wear

• Plunger Movement: If the plunger shows signs of misalignment or can be moved axially when the pump is disassembled, the retainer may be worn

• Scheduled Major Overhaul: It is standard practice to inspect the plunger retainer during complete intensifier rebuilds

Inspection and Replacement Guidelines:

• Special Tool Required: Use the cartridge/plunger removal tool to extract the plunger retainer and plunger assembly

• Retainer Pin Check: Verify that all 6 retainer pins are equally extended to grip the plunger button properly

• Full Depressurization (Critical): Before any maintenance, fully depressurize the waterjet system (high-pressure water, hydraulic system, and air supply) and follow lockout/tagout procedures

• Clean Area Maintenance: Perform the rebuild in a designated clean area to prevent contamination. Thoroughly clean the retainer and mating surfaces with a soft cloth and low-pressure water

• Lubrication: Apply a thin, uniform layer of manufacturer-recommended high-pressure grease to the retainer components during reassembly

• Torque Compliance: When reinstalling components, tighten all retaining hardware to the specific torque values listed in the equipment service manual

• Inspect Related Components: When replacing the plunger retainer, inspect the ceramic plunger surface and the retainer pins for scoring, pitting, or wear

• Replacement Criteria: Replace the plunger retainer immediately if visible deformation, cracking, thread damage, or uneven wear is detected

Cross-Reference Information:

• H2O Jet / KMT #: 20458062

• Listed as Item 12 in Intensifier Assembly 20458728

• Works with: Ceramic Plunger (20457912), Hydraulic Piston Assembly (20458869), Seal Assembly (20458773)
