CP022100-220-HP-seal-kit-for-BFT-waterjet.125.3-1

Short Description:

Used for BFT/BHDT pump.
We enable precise cutting and protect your efficient production.
With genuine BFT parts, your waterjet system always runs like new.
1. Performance revitalized, costs halved.
2. Choose BFT, choose reliability.

INQUIRY

Details

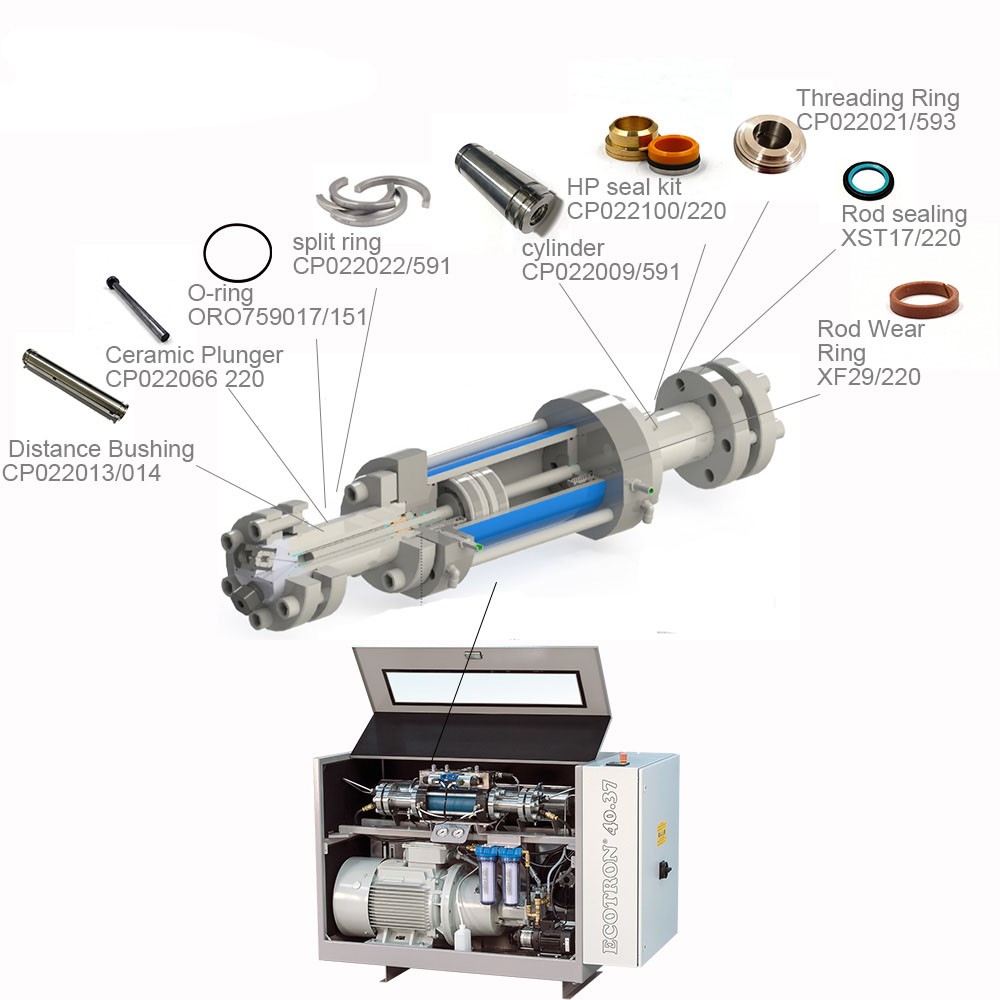

Product Name: High Pressure (HP) Seal Kit / Seal Assembly (Part No. CP022100/220)

Description:
The CP022100/220 is a complete high-pressure (HP) seal kit specifically designed for the high-pressure cylinder assembly of BFT waterjet intensifier pumps . It is a critical component for maintaining the seal integrity of the pump's wet end .

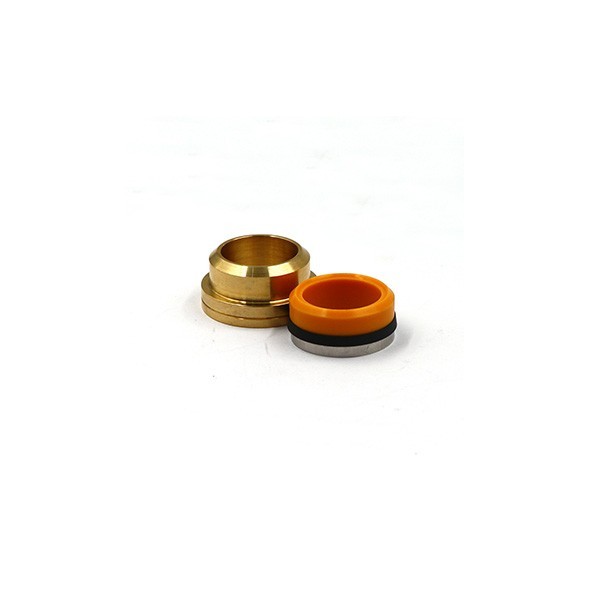

This kit is a complete "seal assembly" that contains the essential high-wear components, including a steel ring, a plastic seal, a quad-ring, and a brass support ring . As a consumable item, it is engineered to be replaced as a set during routine maintenance or when leaks occur to restore system pressure and efficiency .

Applications:

Rebuilding the high-pressure cylinder assembly of BFT waterjet intensifier pumps.
Used as a direct replacement for the OEM CP022100/220 in BFT systems.
Compatible with BFT, WJS, Maximator Jet, and STM waterjet systems .
Suitable for ultra-high pressure waterjet systems operating up to 60,000 PSI (approximately 4,137 bar) .

Features:

Complete Kit: Contains all required components (steel ring, plastic seal, quad-ring, brass support ring) for a full cylinder rebuild .
Precision Components: Manufactured from robust materials including plastic, brass, and rubber to withstand extreme pressures .
Critical Application: The kit is specifically engineered to seal the connection between the high-pressure cylinder and the cylinder end cover .
OEM Compatibility: Interchangeable with OEM part numbers including MJ0040275, 5300185, and 1100144 .

Maintenance:

Failure Diagnosis: The primary indicator for replacement is water leaking from the small hole on the cylinder end cover .
Replacement:

Full Depressurization: Always fully depressurize the waterjet system and follow lockout/tagout procedures before servicing.
Installation: It is recommended to purchase the high-pressure cylinder together with the seal kit to ensure a perfect fit and proper component matching .
Lubrication: Apply a thin film of clean hydraulic oil or high-pressure grease to all seals during installation.
