CP022109-844-Suction-valve-for-BFT-waterjet.127.3-1

Short Description:

Used for BFT/BHDT pump.
We enable precise cutting and protect your efficient production.
With genuine BFT parts, your waterjet system always runs like new.
1. Performance revitalized, costs halved.
2. Choose BFT, choose reliability.

INQUIRY

Details

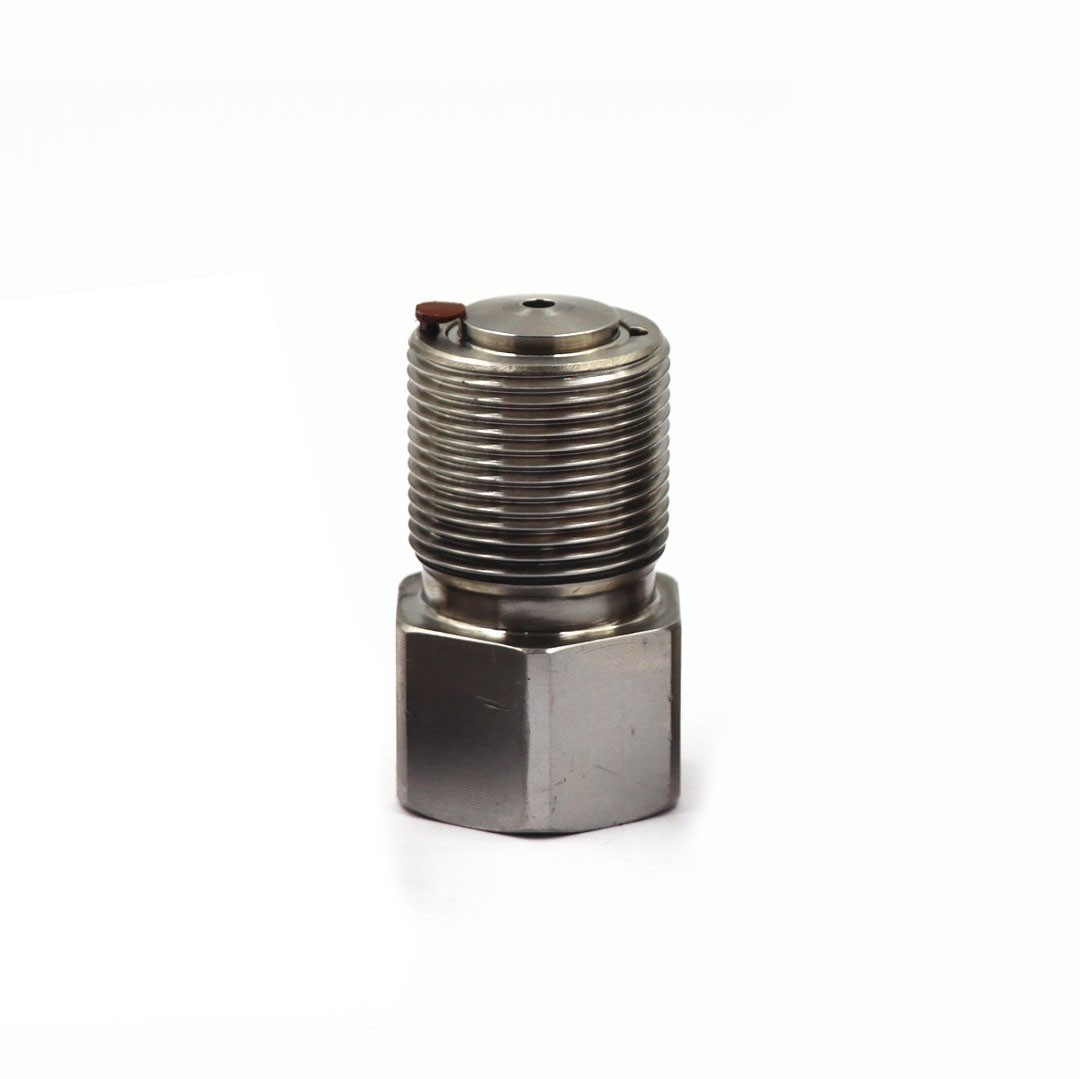

Product Name: Suction Valve Complete (Part No. CP022109/844)

Description:
This component is a complete suction valve assembly, specifically engineered for the high-pressure intensifier pump in BFT waterjet cutting systems . It is also known as an inlet check valve, responsible for controlling the one-way flow of low-pressure water into the high-pressure cylinder .

The assembly is constructed primarily from high-grade stainless steel with integral plastic sealing components. It is designed as a self-contained unit that replaces the individual valve parts (poppet, seat, spring) with a single, drop-in assembly. This valve is critical for the intake stroke of the pump; it opens to allow water to fill the cylinder and closes instantly during the compression stroke to prevent dangerous backflow. It is rated for continuous operation at up to 4,137 bar (approximately 60,000 PSI) .

Applications:

Installed in the low-pressure water intake circuit of BFT (and compatible) waterjet intensifier pumps .
Controls the filling of the high-pressure cylinder during the intake stroke.
Suitable for ultra-high pressure waterjet systems operating at 60,000 PSI (4,137 bar) and above .
Compatible with BFT, BHDT, WJS, Maximator Jet, and STM waterjet systems .

Features:

Complete Assembly: Unlike loose repair kits, this is a pre-assembled unit for faster drop-in replacement .
Stainless Steel Construction: Provides excellent corrosion resistance and structural integrity under extreme pressure cycling .
High-Pressure Rating: Engineered for continuous operation at 4,137 bar (60,000+ PSI) .
Direct OEM Replacement: Interchangeable with OEM part numbers MJ0040124, 1100020, and 1-18291 .
Weight: Approximately 0.35-0.40 kg .

Maintenance:

Failure Diagnosis (When to Replace):

Reduced Cutting Pressure: A drop in cutting performance indicates the valve may be leaking or failing to seat properly .
System Pressure Fluctuations (Pulsation): Erratic intensifier cycling or pressure spikes can be caused by a stuck or worn suction valve.
External Leakage: Water weeping from the valve body indicates internal seal failure.
Increased Pump Noise: Knocking or hammering sounds during the compression stroke often point to a faulty check valve.
Scheduled Preventive Maintenance: Replacing the suction valve as a complete assembly during major overhauls prevents unplanned downtime.

Replacement and Inspection Guidelines:

Full Depressurization (Critical): Before any maintenance, shut down the pump, fully depressurize the high-pressure water system, and follow lockout/tagout procedures.
Drop-In Replacement: This part is designed to be removed and replaced as a single unit; do not attempt to disassemble the internal components.
Clean Installation: Thoroughly clean the mounting cavity in the manifold block before inserting the new valve.
Lubrication: Apply a thin film of clean hydraulic oil or high-pressure grease to the O-rings and sealing surfaces during installation.
Torque Compliance: Tighten the retaining nut or manifold bolts to the specific torque value listed in the equipment service manual to prevent damage.
Storage: Keep spare assemblies in clean, sealed packaging to prevent contamination of the internal sealing surfaces.
