XF56-220-Wear-Ring-for-BFT-waterjet.1571.3-1

Short Description:

Used for BFT/BHDT pump.
We enable precise cutting and protect your efficient production.
With genuine BFT parts, your waterjet system always runs like new.
1. Performance revitalized, costs halved.
2. Choose BFT, choose reliability.

INQUIRY

Details

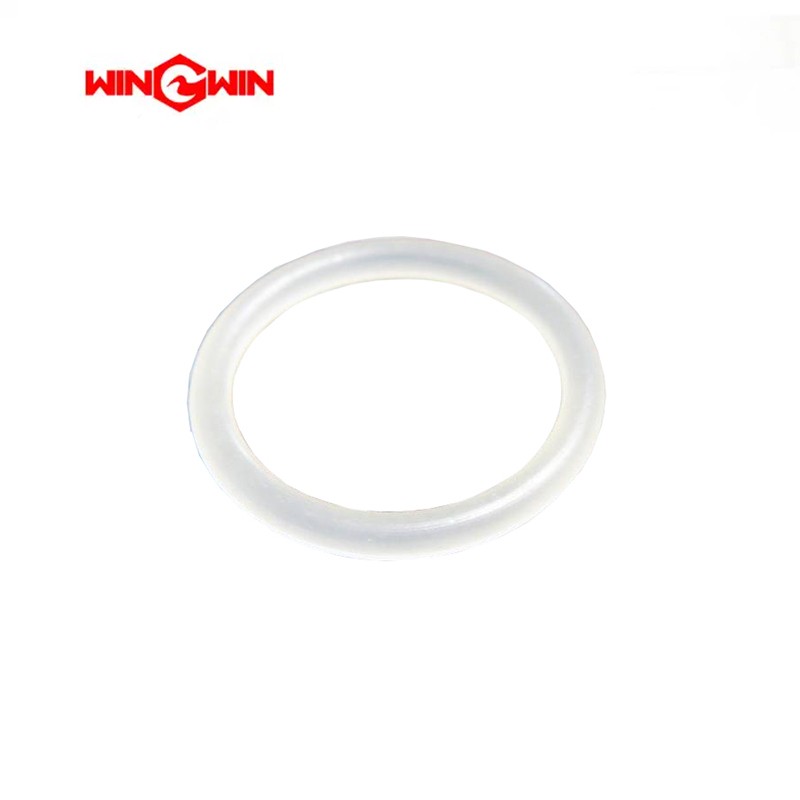

Product Name: XF56/220 Wear Ring / Piston Guide Ring

Description:
The XF56/220 is a precision-engineered wear ring (often referred to as a guide ring or piston bearing) specifically designed for the high-pressure intensifier pump in BFT waterjet cutting systems . Classified as a dynamic component, it is installed on the hydraulic piston assembly.

Unlike an elastomeric seal, which is designed to prevent fluid from passing, the primary function of the wear ring is to provide low-friction radial support and guidance to the reciprocating piston as it moves within the cylinder bore. By maintaining precise concentricity and absorbing lateral loads, it effectively prevents direct metal-to-metal contact between the piston and the cylinder wall. This protective function is critical for safeguarding the more expensive cylinder and piston components from scoring, galling, and premature wear .

The wear ring is identified as Item 4 in the standard BFT intensifier parts diagram for both the CP022001/2 and HT022012/172 assemblies . It is manufactured from advanced, self-lubricating polymer materials (often PTFE-based composites) designed to minimize friction and heat generation under extreme pressure cycling up to 60,000–94,000 PSI (approximately 4,137–6,480 bar) .

Applications:

Provides radial support and precise guidance for the hydraulic piston within the cylinder bore.
Absorbs lateral mechanical loads, preventing piston deflection and metal-to-metal contact .
Installed as part of the piston assembly alongside the piston sealing (XK121/220) .
Used during scheduled preventive maintenance, major pump overhauls, or when signs of piston wear or abnormal pump noise are detected.
Compatible with BFT intensifier assemblies, specifically CP022001/2 and HT022012/172 .

Features:

Low-Friction Material: Typically manufactured from PTFE or reinforced polymer for minimal friction and high wear resistance.
Sacrificial Wear Design: Engineered as a consumable wear component; designed to wear preferentially, protecting the more expensive metal cylinder and piston components .
Critical Guidance Function: Essential for maintaining proper piston-to-cylinder clearance and alignment, which is vital for dynamic seal life and pressure stability.
High-Pressure Rating: Designed for continuous operation at 60,000-94,000 PSI (4,137-6,480 bar) .
Direct OEM Replacement: Interchangeable with BFT part number XF56/220, listed in official parts diagrams .

Maintenance:

Failure Diagnosis (When to Replace):

Reduced Cutting Pressure: A worn wear ring allows the piston to wobble, disrupting the oil film seal and causing a loss of high pressure.
Excessive Vibration or Pump Noise: Unusual knocking or rattling from the pump area indicates excessive clearance in the piston-to-cylinder fit.
Premature Seal Failure: Frequent or rapid failure of piston dynamic seals often suggests a worn wear ring allowing too much piston deflection.
Visible Damage During Disassembly: During major pump overhauls, inspect the wear ring for scoring, galling, cracking, uneven wear, or loss of thickness.
Metal Particles in Hydraulic Oil: Metallic debris in the oil or filters indicates that the wear ring may have failed, allowing metal-to-metal contact.
Scheduled Preventive Maintenance: Standard industry practice to inspect and replace wear rings during major pump overhauls (typically every 4,500-5,000 operating hours or when the piston assembly is serviced) .

Inspection and Replacement Guidelines:

Full Depressurization (Critical): Before any maintenance, fully depressurize the waterjet system and hydraulic system, and follow lockout/tagout procedures .
Disassembly: Remove the hydraulic piston assembly from the cylinder bore to access the wear ring.
Clean Installation: Perform the rebuild in a designated clean area. Thoroughly clean the piston, cylinder bore, and all mating surfaces with a soft, lint-free cloth. Remove all debris, old seal residue, and mineral deposits.
Dimensional Inspection: Measure the wear ring thickness and piston outside diameter using precision tools. Compare to manufacturer specifications to detect out-of-tolerance wear.
Cylinder Bore Inspection: When replacing the wear ring, inspect the hydraulic cylinder bore for scoring, pitting, or out-of-round wear. A damaged cylinder will rapidly wear out a new ring.
Lubrication: Apply a thin, uniform layer of manufacturer-recommended high-pressure grease or clean hydraulic oil to the wear ring and cylinder bore during assembly.
Installation: Slide the new wear ring onto the piston. Use a ring compressor to properly size the ring so it fits into the cylinder bore.
Replace as a Set: When servicing the piston assembly, it is recommended to replace all wear rings, piston seals, and O-rings simultaneously using a complete repair kit .
Torque Compliance: When reinstalling the piston assembly and end bells, tighten tie rod nuts to the torque values specified in the equipment service manual.

Cross-Reference Information:

BFT #: XF56/220 .
Also known as: Wear Ring, Guide Ring, Piston Wear Ring, Piston Bearing .
Component of Intensifier Assemblies: CP022001/2 & HT022012/172 .
Works with: Piston Sealing (XK121/220), Piston (CP022031/069), Cylinder (CP022002/190) .
Rated Pressure: 60,000-94,000 PSI (4,137-6,480 bar).
