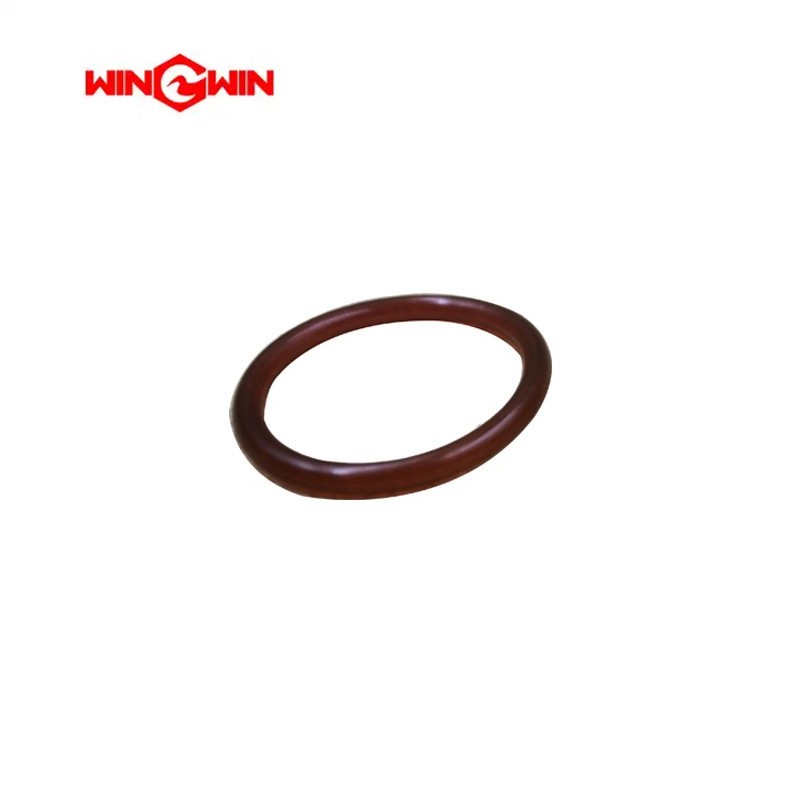

Product Name: Intensifier O-Ring (Part No. 20460108)

Description:
The Intensifier O-Ring (20460108) is a critical static or dynamic sealing element used within the intensifier pump assembly of a high-pressure waterjet cutting system. Typically manufactured from durable elastomers such as Viton (FKM) or Nitrile (Buna-N), it is engineered to withstand the extreme pressures and cycling inherent in waterjet operation. It serves as a high-integrity barrier against high-pressure water and hydraulic oil, preventing fluid from leaking between mated metal surfaces.

Applications:

• Sealing the interface between the Hydraulic Cylinder and the End Bell.

• Sealing the High-Pressure Cylinder and its associated End Cap.

• Sealing connections within the internal hydraulic circuit of the intensifier.

• Used extensively as part of seal kits (such as P/N 20458773) during pump maintenance.

Features:

• High-Performance Material: Formulated from compounds (FKM, NBR, etc.) offering excellent resistance to compression set, chemical degradation, and temperature extremes.

• Critical Pressure Barrier: Essential for maintaining system pressure by preventing internal bypass and external leakage.

• OEM Specification: Designed as a direct OEM replacement, meeting the precise dimensional tolerances for a perfect fit in the designated groove.

Maintenance:

Failure Diagnosis (When to Replace):
The O-ring (20460108) is a consumable item. Failure typically manifests as:

• External Water or Oil Leakage: Visible fluid dripping from the intensifier joints.

• Pressure Drop: Inability to maintain rated cutting pressure or slow intensifier cycling.

• Physical Inspection: Hardening, cracking, nicks, or permanent flattening (compression set) of the O-ring when disassembled.

Replacement Guidelines:

• Full Depressurization (Critical): Before any maintenance, depressurize the waterjet system and follow Lockout/Tagout procedures.

• One-Time Use: Always replace the O-ring with a new one whenever the assembly is disassembled (do not reuse).

• Clean and Lubricate: Thoroughly clean the groove and mating surfaces. Lubricate the new O-ring with a thin film of high-pressure grease or hydraulic oil to prevent pinching and ensure proper seating.

• Alignment Fixture: During reassembly of the intensifier, use the alignment fixture to square the End Bells, preventing O-ring damage and manifold leaks.

• Inspect Mating Surfaces: Check the bore or groove for scratches, burrs, or corrosion which could damage the new seal.
