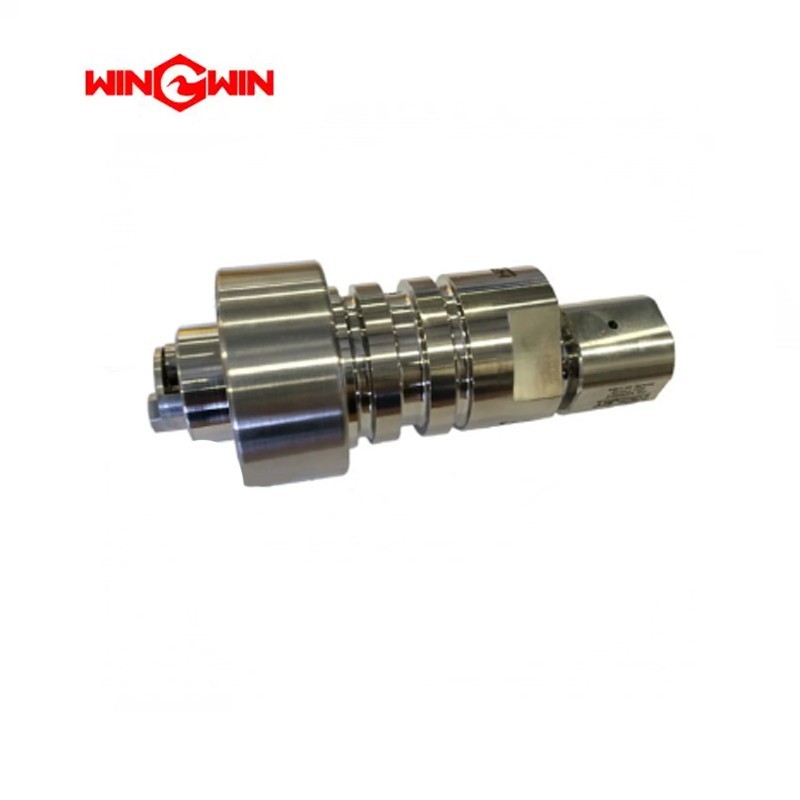

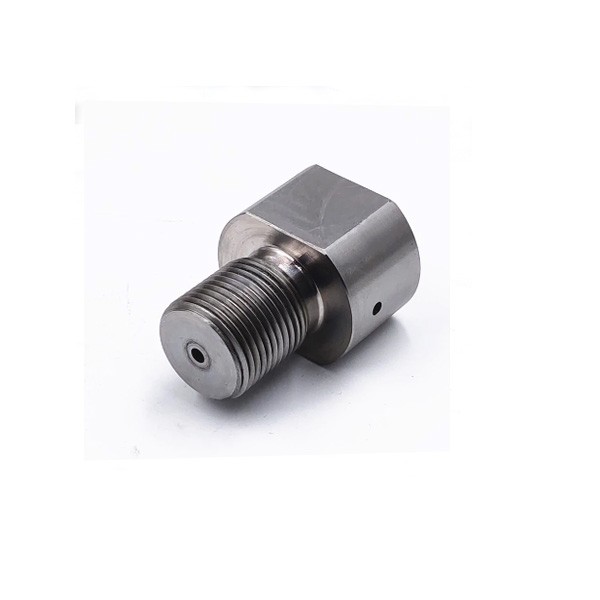

Product Name: Electronic Shift Assembly Check Valve (Part No. 80085756)

Description:
This component is an electronic shift assembly check valve, a critical control component for the hydraulic shifting mechanism in high-pressure waterjet intensifier pumps. It serves as the electro-hydraulic interface that directs pilot pressure to actuate the main directional control valve, which controls the reciprocating motion of the intensifier piston.

In waterjet systems, the intensifier pump relies on precise hydraulic shifting to alternate the piston between forward and return strokes, generating continuous high-pressure water flow. The electronic shift assembly integrates an electrical solenoid (pilot valve) with a hydraulic check valve function to ensure proper shifting timing. This assembly is typically mounted on the hydraulic manifold and works in conjunction with the main spool valve to control oil flow direction.

The "Check Valve" function within this assembly is designed to maintain one-way flow of pilot oil, preventing backflow that could cause erratic shifting or complete loss of directional control.

Applications:

• Controls the hydraulic shifting sequence in waterjet intensifier pump assemblies

• Provides pilot pressure to actuate the main directional control valve

• Suitable for 60,000 PSI (approximately 4,137 bar) and higher waterjet systems

• Compatible with intensifier pumps requiring electronic shift control

Features:

• Electro-Hydraulic Integration: Combines solenoid pilot operation with check valve functionality for precise shifting control

• One-Way Flow Control: Internal check valve prevents backflow of pilot oil, maintaining system integrity

• Fast Response Time: Provides rapid shifting for continuous, stable pressure output

• OEM Compatibility: Direct replacement for specific waterjet intensifier models

Maintenance:

When to Replace (Failure Diagnosis):

• Pump Fails to Shift Direction: If the intensifier piston stops at the end of its stroke and does not reverse, the shift assembly may be faulty

• Erratic or Inconsistent Shifting: Irregular cycling or "double stroking" indicates shifting issues

• Solenoid Coil Failure: Check for proper voltage across the solenoid coil; open or short circuit requires replacement

• Contamination: Dirt or debris in the pilot oil can cause the check valve to stick. Clean with diesel or appropriate solvent

Inspection and Replacement Guidelines:

• Full Depressurization (Critical): Before any maintenance, place the main electrical disconnect in the OFF position, fully depressurize the hydraulic system, and follow lockout/tagout procedures

• Electrical Test: Remove the shift assembly and test the solenoid operation with a magnet or power source to verify function

• Valve Cleaning: If the shift valve is stuck due to contamination, disassemble and clean internal components with diesel or cleaning solvent

• Seal Replacement: Always replace all O-rings and seals when servicing the shift assembly

• Torque Compliance: When reinstalling, tighten all mounting hardware to the specific torque values listed in the equipment service manual
