English Translation of Title:
Manifold Assembly for Water Jet Cutting Machine Parts – Model No. 72157461-Manifold-Assembly.1280.3-1

Introduction, Application, Features, and Maintenance:

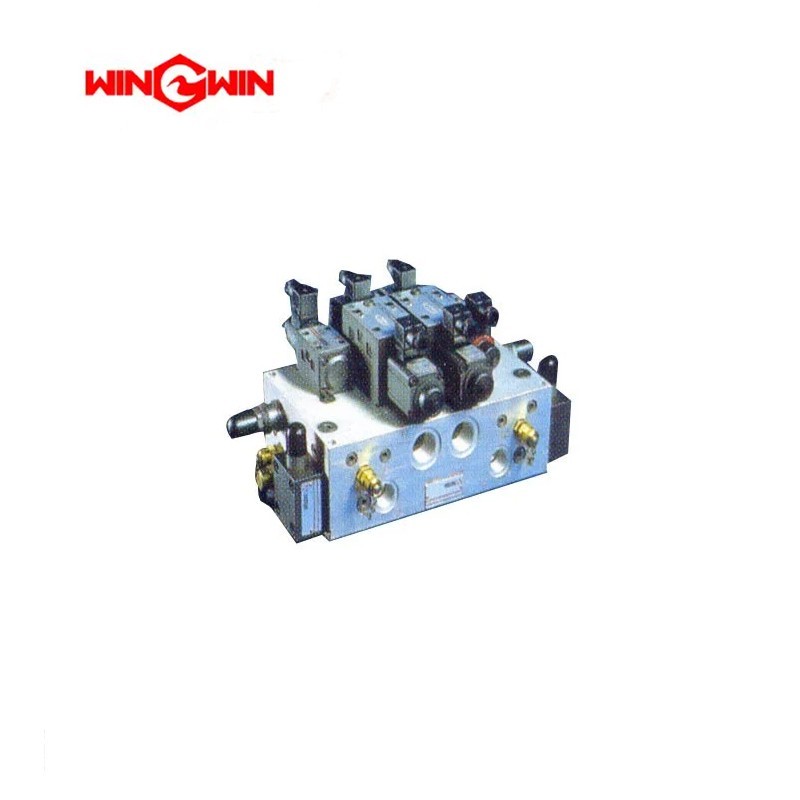

This component is a manifold assembly designed for water jet cutting systems. It is a fluid distribution block with multiple ports and internal passages that directs and distributes water, abrasive slurry, or hydraulic fluid to various components within the machine.

Application:
Used in water jet cutting machines to distribute fluids to pumps, valves, cutting heads, cooling circuits, or auxiliary components. Typical installations include pump inlet or outlet manifolds, abrasive slurry distribution blocks, and hydraulic valve assemblies where centralized fluid routing is required.

Features:

• Rated for pressures appropriate to the system design (may vary from low‑pressure water to high‑pressure hydraulic circuits).

• Multiple ports allow simultaneous distribution to several circuits or components.

• Manufactured from high‑strength, corrosion‑resistant material suitable for water, abrasive slurry, and hydraulic fluid exposure.

• Precision‑machined internal passages ensure efficient flow with minimal pressure drop.

• Compact block design simplifies plumbing and reduces the number of individual fittings.

• May include integrated mounting holes for secure attachment to the machine frame.

Maintenance:

• Regularly inspect the manifold body and connections for signs of corrosion, cracking, or leakage.

• Check all threaded connections for proper torque and signs of wear.

• Monitor system pressure and flow; unusual fluctuations may indicate internal blockage or damage.

• Replace the manifold immediately if any cracks, deformation, or persistent leakage is detected.

• Clean the manifold and surrounding area periodically to prevent debris accumulation.

• Follow specified torque values for all connections.
