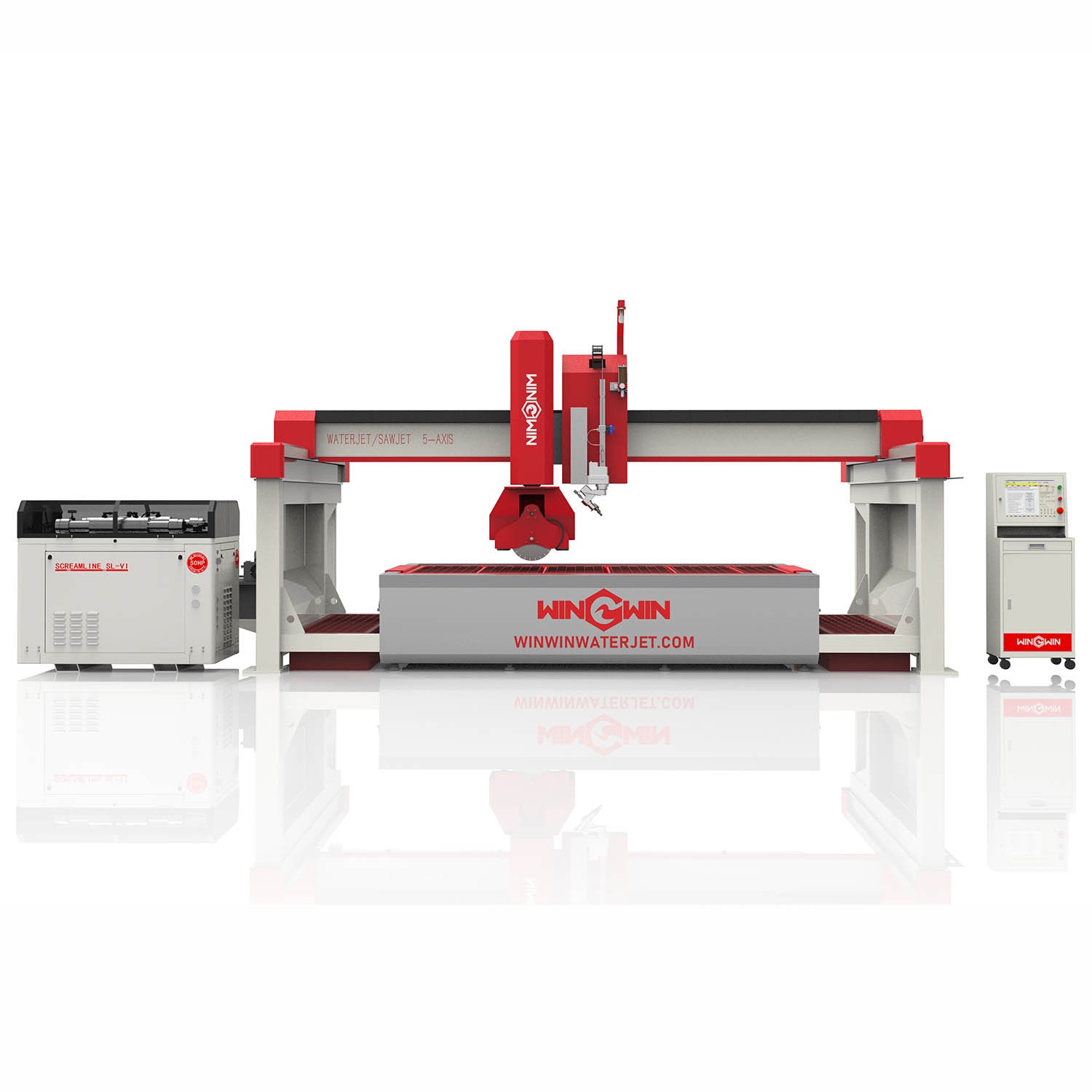

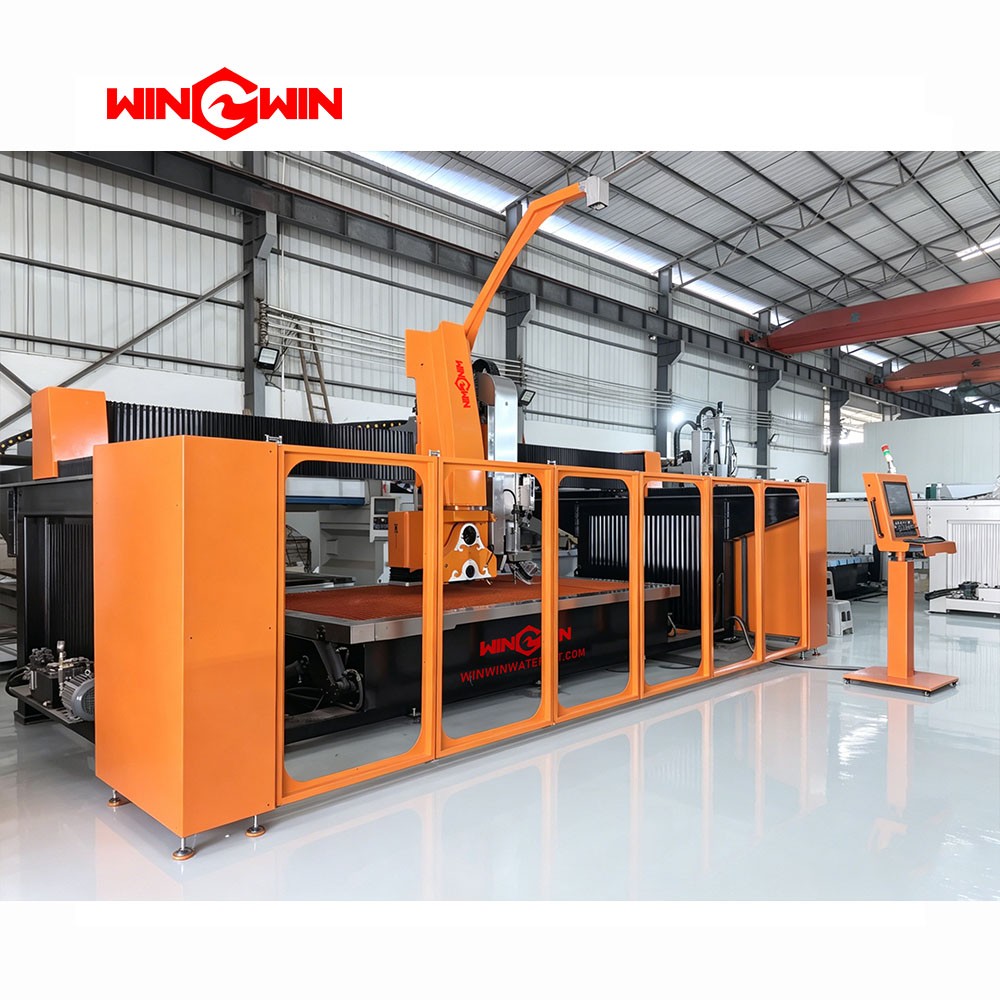

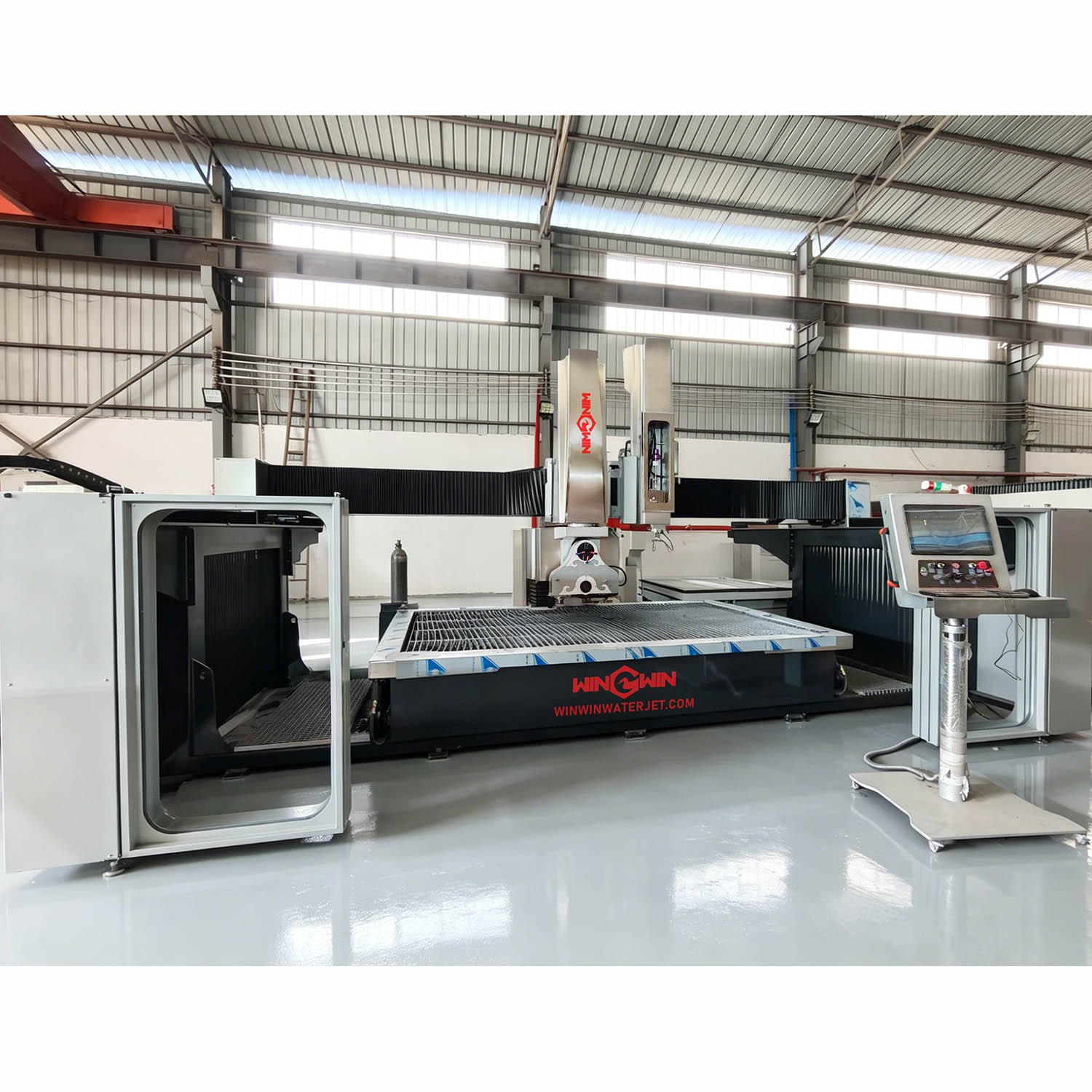

5 Axis CNC Sawjet Machine

Short Description:

Dual Cutting Technology – Integrates a high-speed diamond saw and an ultra-high-pressure waterjet for both straight-line and intricate shape cutting.

CNC Precision Control – Computer-controlled axes ensure accurate, repeatable cuts with tight tolerances based on programmed designs.

Versatile Material Processing – Capable of cutting a wide range of materials, including stone, glass, metal, and composites.

Bevel and Miter Cutting Ability – Allows angle cuts and beveling (e.g., 45° edges)





Details







Cutting table sizeSpindle speedMilling cutter speedMachine size
3300*2050mm3000-6000rpm18000rpm6100*3700*3500mm
Processing sizeCutting accuracyBooster cabinet sizePackage size
3200*2000mm±0.1mm1900*1450*1200mm6100*2350*2300mm
Saw blade diameterCutting speedBooster cabinet powerTotal weight
350-450mm0.8-3m/min37KW7000KG
Spindle powerMilling cutter powerTotal power
15KW5.5KW62KW


5 Axis CNC Sawjet Machine Waterjet Cutting Sawjet Machine
