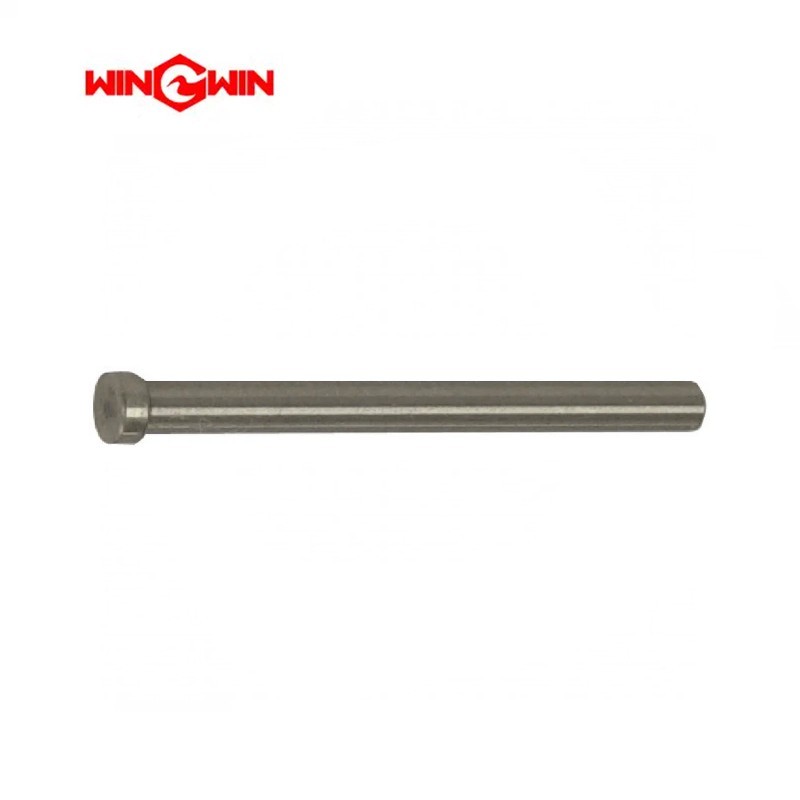

Product Name: Electronic Shift Assembly Firing Pin (Part No. 20457897)

Description:
This component is an electronic shift assembly firing pin, a precision-machined actuation component within the electronic shifting mechanism of a waterjet intensifier pump. It is directly cross-referenced with part number 100051-2 .

The firing pin serves as the mechanical interface within the shift assembly, transmitting the force generated by the electronic pilot solenoid to actuate the main hydraulic directional control valve. When the electronic shift assembly receives the signal to reverse the intensifier piston, the firing pin moves to physically shift the pilot spool, redirecting hydraulic flow to the opposite side of the intensifier cylinder .

As a critical component in the intensifier's shift logic, the firing pin ensures precise timing for the alternating forward and return strokes of the hydraulic piston. Proper function of this component is essential for maintaining consistent pump cycling, stable pressure output, and preventing erratic operation such as over-stroking or "banging" during shift events.

Applications:

• Transmits mechanical force from the electronic pilot solenoid to the hydraulic directional control valve

• Acts as the physical link in the electronic shift assembly for intensifier pump reversing

• Suitable for 60,000-90,000 PSI (approximately 4,137-6,200 bar) waterjet intensifier systems

• Used in intensifier pumps requiring electronic shift control with mechanical actuation

Features:

• Precision-Machined Construction: Manufactured to exact tolerances for smooth, repeatable actuation

• Wear-Resistant Material: Designed to withstand millions of shift cycles without deformation

• Direct OEM Replacement: Cross-referenced with H2O Jet #100051-2 and multiple industry part numbers including B-1702-1, A-25-0013, and T200-1137

• Critical Timing Component: Ensures accurate shift timing for stable pump operation

Maintenance:

When to Replace (Failure Diagnosis):

• Pump Fails to Shift Direction: If the intensifier piston stops at the end of stroke and does not reverse, the firing pin may be worn or broken

• Erratic or Inconsistent Shifting: Irregular cycling or "double stroking" may indicate firing pin wear or damage

• Unusual Shift Noise: Loud banging or clunking during shift events suggests excessive clearance or a worn firing pin

• Visible Wear During Inspection: Remove the shift assembly and inspect the firing pin for signs of galling, scoring, mushrooming, or breakage

Inspection and Replacement Guidelines:

• Full Depressurization (Critical): Before any maintenance, place the main electrical disconnect in the OFF position, fully depressurize the hydraulic system, and follow lockout/tagout procedures

• Remove Shift Assembly: Remove the electronic shift assembly from the hydraulic manifold according to equipment service manual instructions

• Inspect Firing Pin: Examine the firing pin for wear, scoring, mushrooming, or cracks. Replace if any damage is visible

• Check Pilot Spool: When replacing the firing pin, inspect the mating pilot spool surface for wear or damage

• Proper Lubrication: Apply clean hydraulic oil to the firing pin during installation to ensure smooth operation

• Torque Compliance: When reassembling, tighten shift assembly mounting hardware to the specific torque values listed in the equipment service manual

• Cross-Reference Part Numbers: Interchangeable with 100051-2, B-1702-1, A-25-0013, and T200-1137
