Short Description:

Used for BFT/BHDT pump.
We enable precise cutting and protect your efficient production.
With genuine BFT parts, your waterjet system always runs like new.
1. Performance revitalized, costs halved.
2. Choose BFT, choose reliability.

INQUIRY

Details

Product Name: Helical Spring / Compression Spring (Part No. CP020034/255)

Description:
This component is a helical compression spring (specifically listed as a "helical spring" or "compression spring"), specifically designed for BFT waterjet intensifier pumps . It is a precision coiled component manufactured from high-grade stainless steel , which provides resistance to corrosion and maintains spring tension under extreme pressure cycling.

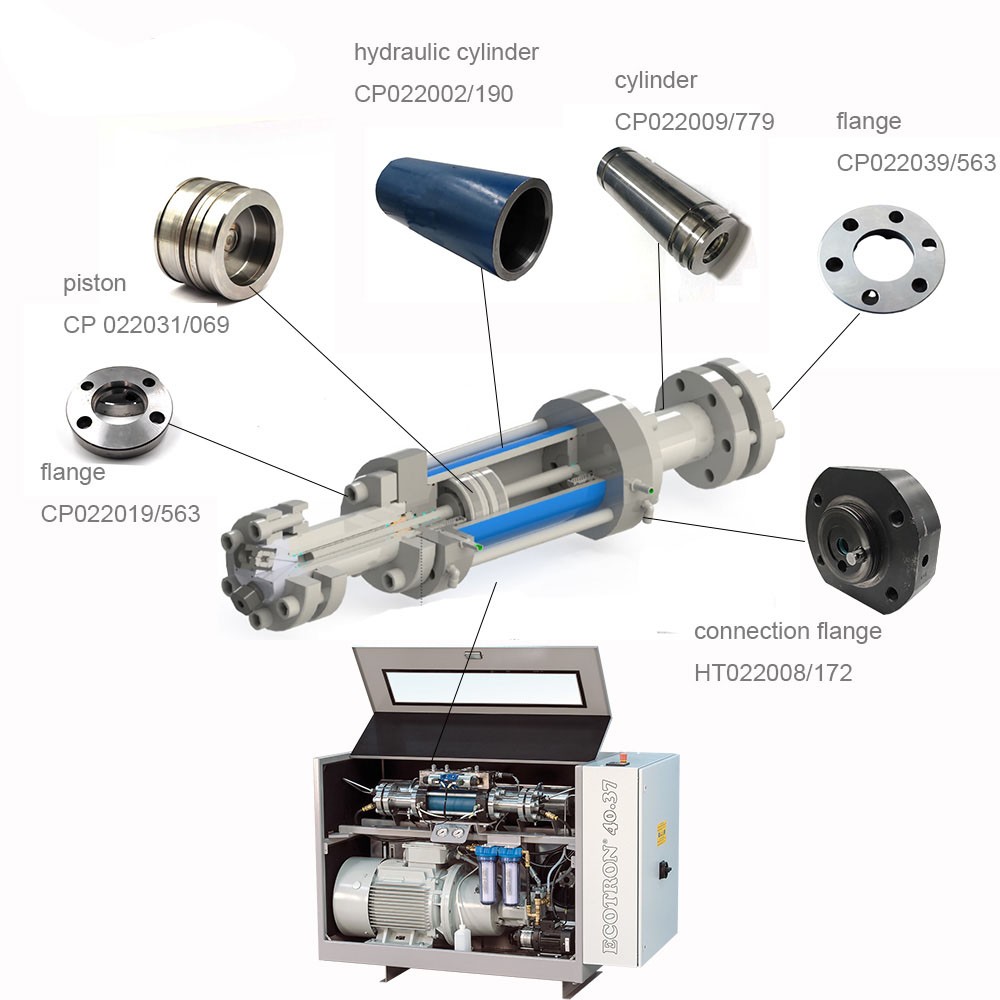

Engineered for reliability in ultra-high pressure waterjet environments, this spring is a critical component used in the intensifier assembly. According to parts lists for the CP022001/2 Intensifier, this spring is installed in the hydraulic control section of the pump and is listed as Item 21 .

Applications:

Used as a component in the intensifier assembly of BFT waterjet cutting systems (Part of CP022001/2) .
Serves as a mechanical element, primarily to ensure the precise function of the piston displacement sensor .
Compatible with BFT intensifiers, as well as systems from BHDT, Maximator Jet, STM, and Intermac Primus .
Rated for ultra-high pressure operation up to 4,137 bar (approximately 60,000 PSI) .

Features:

Stainless Steel Construction: Manufactured from high-grade stainless steel for corrosion resistance and long-term fatigue life .
Precision Coiled Design: Manufactured to exact tolerances to ensure consistent spring force and reliable operation under high cycle rates.
Critical Positioning Function: Directly responsible for the precise operation of the piston position sensor, affecting pump shift timing .
Lightweight: Weight is approximately 0.001 kg (1 gram), making it easy to handle during maintenance .
Cross-Reference Compatibility: Interchangeable with part numbers MJ0040084, 4100794, and 106777 .

Maintenance:

Failure Diagnosis: A symptom of a broken or fatigued spring is often erratic intensifier shifting or the pump failing to change direction properly, as the sensor cannot detect the piston position accurately .
Inspection: When the intensifier is disassembled for maintenance, inspect the spring for signs of permanent deformation (shortening), cracking, or corrosion. Compare its free length to manufacturer specifications.
Replacement: This is a high-cycle wear component. It should be replaced during major pump overhauls or immediately if the intensifier exhibits erratic shifting behavior.
Full Depressurization (Critical): Before any maintenance, place the main electrical disconnect in the OFF position, bleed down all high-pressure lines, and follow lockout/tagout procedures.
Clean Installation: Ensure the spring cavity is clean and free of debris before inserting the new spring.
Torque Compliance: When reassembling the intensifier, tighten the relevant retaining components to the torque values specified in the equipment service manual.
