Product Name: Inline Filter Screen (Part No. 400052-1)

Description:

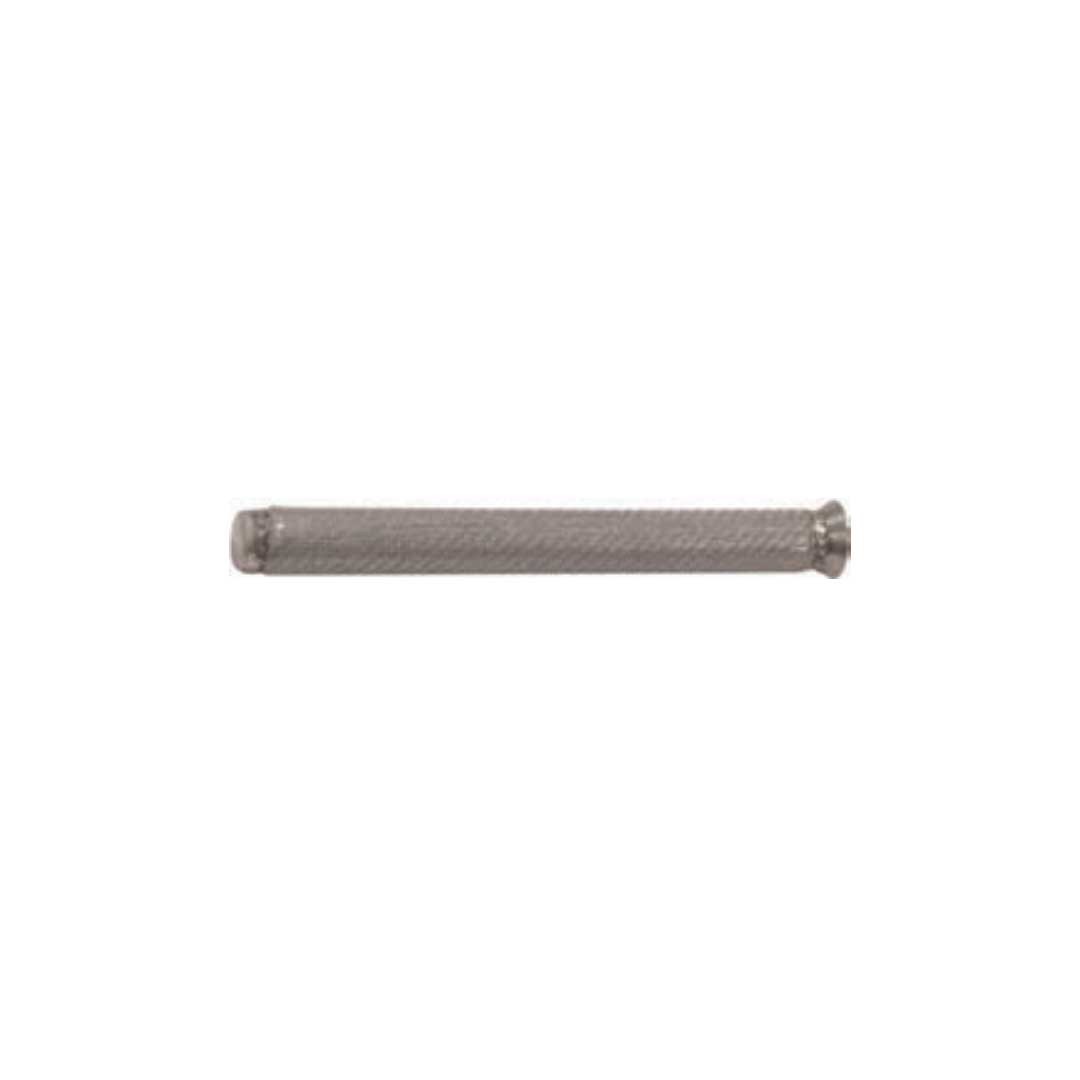

This component is an inline filter screen, a fine-mesh filtration element specifically designed for the low-pressure water supply line in high-pressure waterjet cutting systems . Its primary function is to act as a coarse or secondary filter, capturing large particulate contaminants, sediment, and debris from the water supply before it enters the sensitive high-pressure intensifier pump . This is a crucial pre-filtration stage that helps protect the high-pressure seals, check valves, and the cutting head's jewel orifice from premature wear and clogging . Unlike a disposable paper filter, this screen is typically a cleanable, reusable component made of stainless steel mesh.

Applications:

• Installed inline on the low-pressure water supply line upstream of the high-pressure pump or intensifier .

• Serves as a primary or secondary sediment filter to remove rust, sand, and other visible particles from the water .

• Protects sensitive components like the high-pressure cylinder, dynamic seals, and check valves from contamination .

Features:

• Reusable Design: Constructed from durable stainless steel mesh, designed to be removed, cleaned, and reinstalled multiple times.

• Coarse Filtration: Captures larger particles that could damage downstream components.

• Inline Configuration: Easily integrates into the standard low-pressure water line for straightforward servicing.

• Critical Pre-Filter: Acts as the first line of defense for the high-pressure pump's water supply .

Maintenance:

This is a serviceable, cleanable component.

When to Inspect/Clean:

• Scheduled Maintenance: Regularly inspect the screen during routine filter changes or pump servicing.

• Reduced Flow or Pressure: If there is a noticeable drop in water flow or supply pressure, a clogged screen may be restricting the line.

• Premature Component Wear: Frequent clogging of downstream fine filters or wear on seals/orifices may indicate this screen is not being cleaned often enough.

Service and Replacement Guidelines:

• Full Depressurization (Critical): Before any maintenance, shut off the water supply, fully depressurize the waterjet system, and follow lockout/tagout procedures.

• Removal: Disconnect the inline housing and carefully remove the filter screen.

• Inspection: Visually inspect the screen for holes, tears, or corrosion. A damaged screen must be replaced.

• Cleaning: Clean the screen by back-flushing with water or using compressed air to dislodge trapped debris. For stubborn deposits, soak in a mild cleaning solution.

• Reinstallation: After cleaning, reinstall the screen, ensuring it is properly seated to prevent unfiltered water from bypassing it. Tighten the housing connections securely.

• Replacement: If the screen mesh is torn or the housing is damaged, replace the entire unit. Do not use a damaged screen, as it will fail to protect the pump.
