Product Name: The Edge™ Cutting Head (Part No. 301050-1-XX)

Description:

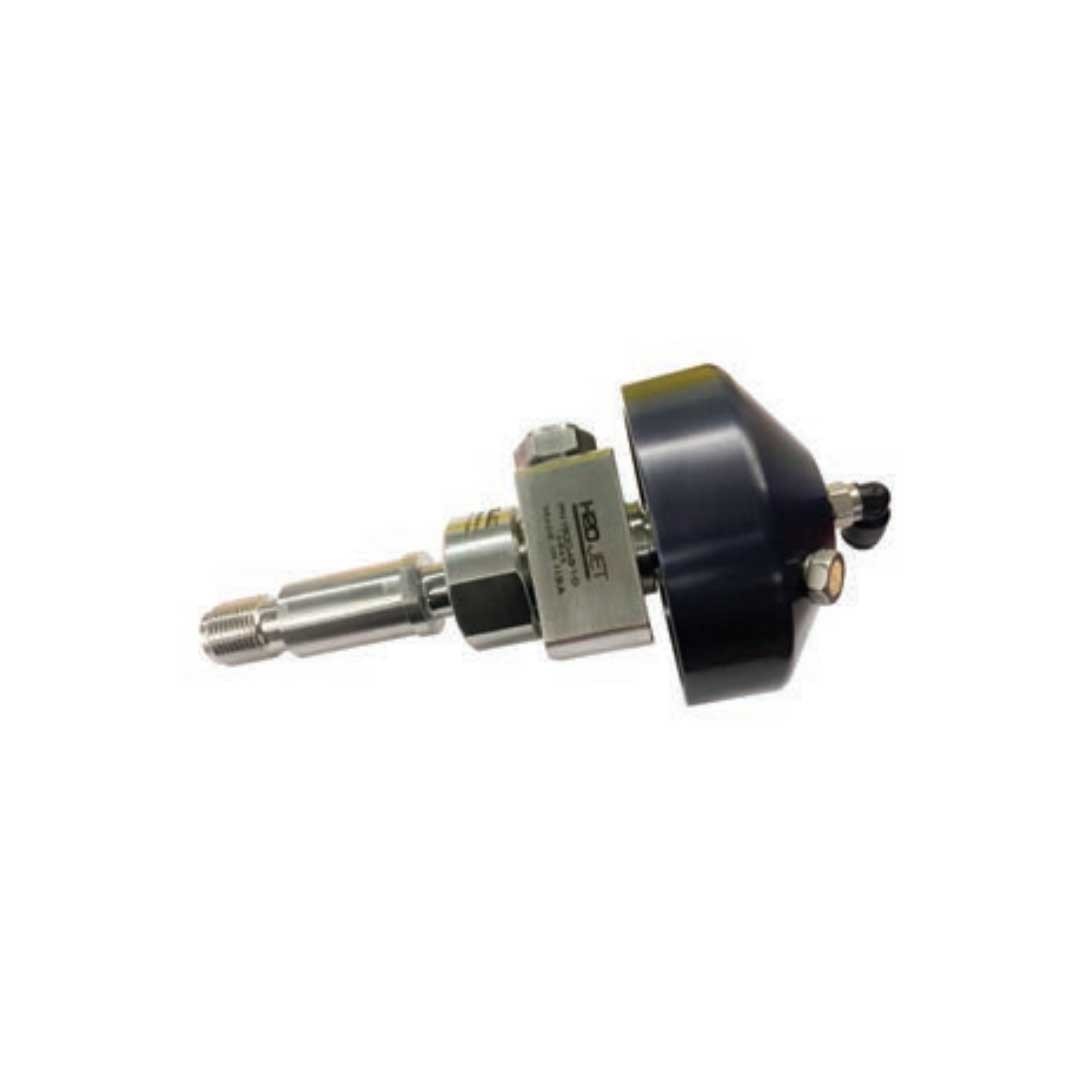

This component is The Edge cutting head, a complete abrasive waterjet nozzle assembly designed for high-performance cutting applications . Engineered to be smaller and leaner than traditional cutting heads, it provides an ideal solution for everyday waterjet operations at a competitive price point .

The cutting head features a low-profile design specifically engineered to fit into confined spaces and works seamlessly with 5-axis motion systems . The -XX suffix in the part number denotes specific configuration options, including the choice of ruby orifice diameter (available in sizes ranging from .010 inches to .014 inches) .

A key design feature of The Edge is its ability to allow the abrasive inlet tube to swivel 360° around the nozzle nut . This eliminates the need for "clocking" (precise rotational alignment) during installation, significantly simplifying setup, reducing machine costs, and allowing the abrasive feed hose to be positioned optimally for any job .

The assembly is specifically designed to work with the P-III Ruby or Diamond Orifice Assembly, allowing operators to select the best jewel type for their specific cutting requirements . It is fully compatible with all major manufacturers' on/off valves and is made to fit with the P-III Nozzle Body and other standard 3/4-16 threaded connections .

Applications:

• Serves as the primary cutting head for abrasive waterjet cutting systems

• Installed at the end of the high-pressure water line and abrasive feed tube

• Suitable for cutting hard materials including metal, stone, glass, ceramics, and composites

• Ideal for use in confined spaces and with 5-axis motion systems

• Works with P-III Ruby or Diamond orifice assemblies for versatility

Features:

• 360° Swiveling Abrasive Inlet: Allows the abrasive feed hose to be positioned anywhere around the nozzle nut, eliminating clocking and simplifying setup

• Low-Profile Design: Compact form factor allows the cutting head to fit into tight spaces not accessible by larger nozzle assemblies

• P-III Orifice Compatibility: Accepts both Ruby and Diamond P-III orifice assemblies (.010"-.014" sizes) for application flexibility

• Universal Compatibility: Fully compatible with all major manufacturers' on/off valves and 3/4-16 threaded connections

• Competitive Pricing: Designed to minimize unnecessary raw material and machining costs, providing a premium product at an accessible price point

Maintenance:

Component Integration:

• The cutting head comes with one Ruby P-III Orifice assembly. The nozzle/mixing tube is not included and must be ordered separately

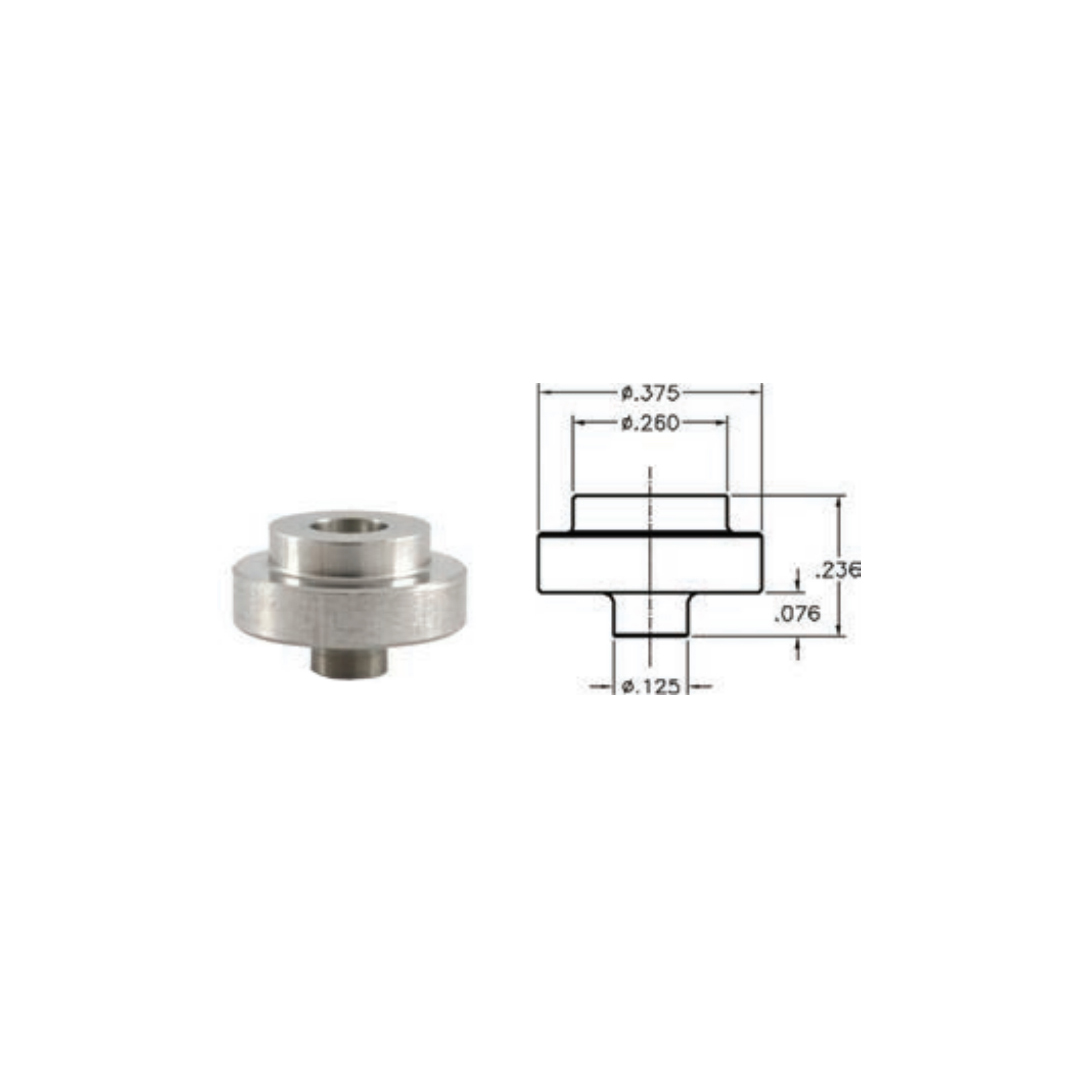

• The Edge is designed to work with standard P-III orifice assemblies (orderable under 203501-XX or 201501-XX)

Standard Maintenance Practices:

• Orifice Replacement: Replace the ruby or diamond orifice when cutting performance degrades or the waterjet stream becomes divergent

• Mixing Tube Replacement: Regularly inspect the mixing tube exit orifice for ovality, flaring, or wear; replace when cut quality decreases

• Keep the Abrasive Inlet Clear: Ensure the swiveling inlet port and feed hose remain free of blockages; use compressed air to clear clogs if necessary

• Check for Leaks: Inspect all connections for high-pressure water weepage; tighten gland nuts to torque specifications in the equipment service manual

• Lubricate Threads: Apply high-pressure anti-seize lubricant to threads during reassembly to prevent galling and ensure proper torque

• Full Depressurization (Critical): Always fully depressurize the waterjet system and follow lockout/tagout procedures before any maintenance
