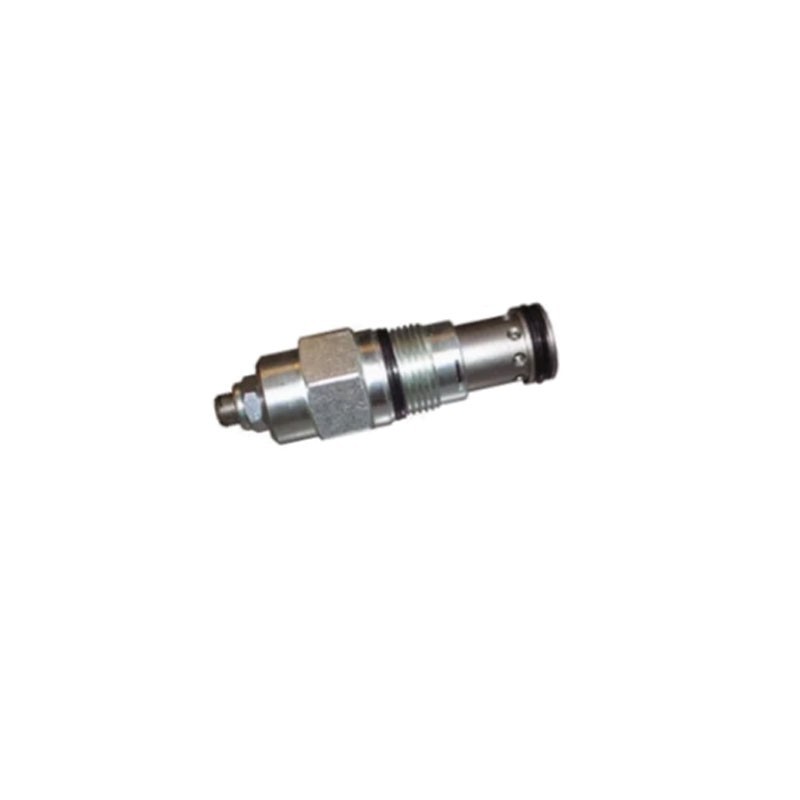

Product Name: Relief Valve, Hydraulic Manifold Side Mount – Adjustable (Part No. 400076-1)

Description:
This component is a side-mount adjustable relief valve, specifically designed for the hydraulic manifold of a high-pressure waterjet intensifier pump . Its primary function is to protect the hydraulic system from over‑pressure by limiting the maximum pressure entering the manifold. If the hydraulic pressure exceeds the valve’s set limit (typically around 3,400 psi / 234 bar for 60K systems), the valve opens to bypass excess oil to the tank, preventing damage to seals, hoses, and other components . The valve is equipped with a drain line that prevents oil from collecting behind it, ensuring consistent pressure regulation under all operating conditions .

Applications:

• Provides over‑pressure protection for the main hydraulic circuit in waterjet intensifier pumps.

• Mounted directly on the side of the system’s hydraulic manifold block.

• Helps maintain stable system pressure by diverting flow when the set point is exceeded.

• Compatible with 60K / 94K waterjet intensifier systems.

Features:

• Side‑mount adjustable design: The valve mounts to the side of the manifold and includes an adjustment mechanism (e.g., a screw under an acorn nut) to change the pressure setting .

• Factory calibrated (recommended): Although the valve is adjustable, some manufacturers specify that it is factory set and not intended for field adjustment . Tampering without proper calibration tools may lead to system damage.

• Integral drain line: Prevents pressure fluctuations by ensuring no oil accumulates behind the relief valve .

• High‑pressure rating: Engineered for the extreme pressures and cycling demands of waterjet cutting (up to 60,000 psi water pressure, with hydraulic relief typically set around 3,400 psi / 234 bar).

• Direct OEM replacement: Interchangeable with H2O Jet part number 400076-1 and WE000045 .

Maintenance:

Failure Diagnosis (When to Inspect / Adjust / Replace):

• Hydraulic system overheating: A relief valve that cracks open (opens slightly) below its set point can continuously bypass high‑pressure oil, generating excessive heat and overloading the cooling system .

• Inability to build pressure: If the valve is stuck open, hydraulic oil will bypass directly to the tank, preventing the system from reaching cutting pressure.

• Pressure spikes or erratic operation: A valve that is stuck closed can cause dangerous pressure spikes; erratic cycling may also indicate a sticking valve spool due to contamination .

• External leakage: Oil weeping from the valve body or adjustment stem indicates seal failure.

• Temperature rise in the valve body: If the relief valve body feels significantly hotter than surrounding components during operation, it may be partially opening under normal conditions .

Inspection and Adjustment Guidelines:

• Full depressurization (critical): Before any maintenance, lock out the main electrical disconnect, fully depressurize the high‑pressure water system and the hydraulic system, and follow lockout/tagout procedures.

• Use a calibrated pressure gauge: Never attempt to adjust the relief valve without a calibrated hydraulic pressure gauge connected to the manifold. Adjust the valve by turning the adjustment screw with a flat blade screwdriver – clockwise increases pressure, counter‑clockwise decreases pressure .

• Check for contamination: If the valve sticks or the system overheats, dirt or metal particles may be lodged in the spool. If contamination is found, the entire hydraulic system should be flushed, the oil changed, and filters replaced .

• Factory calibration note: Some manufacturers state that the main system relief valve is factory calibrated and not serviceable . In such cases, replace the valve as a unit rather than attempting field repair.

• Replacement: Due to the precision fit of the spool and seat, a worn or damaged relief valve is typically replaced as a complete assembly rather than rebuilt in the field.

Cross‑Reference Information:

• H2O Jet #: 400076‑1

• WE000045

• Side‑mount, adjustable hydraulic relief valve

• Component of the hydraulic manifold assembly
