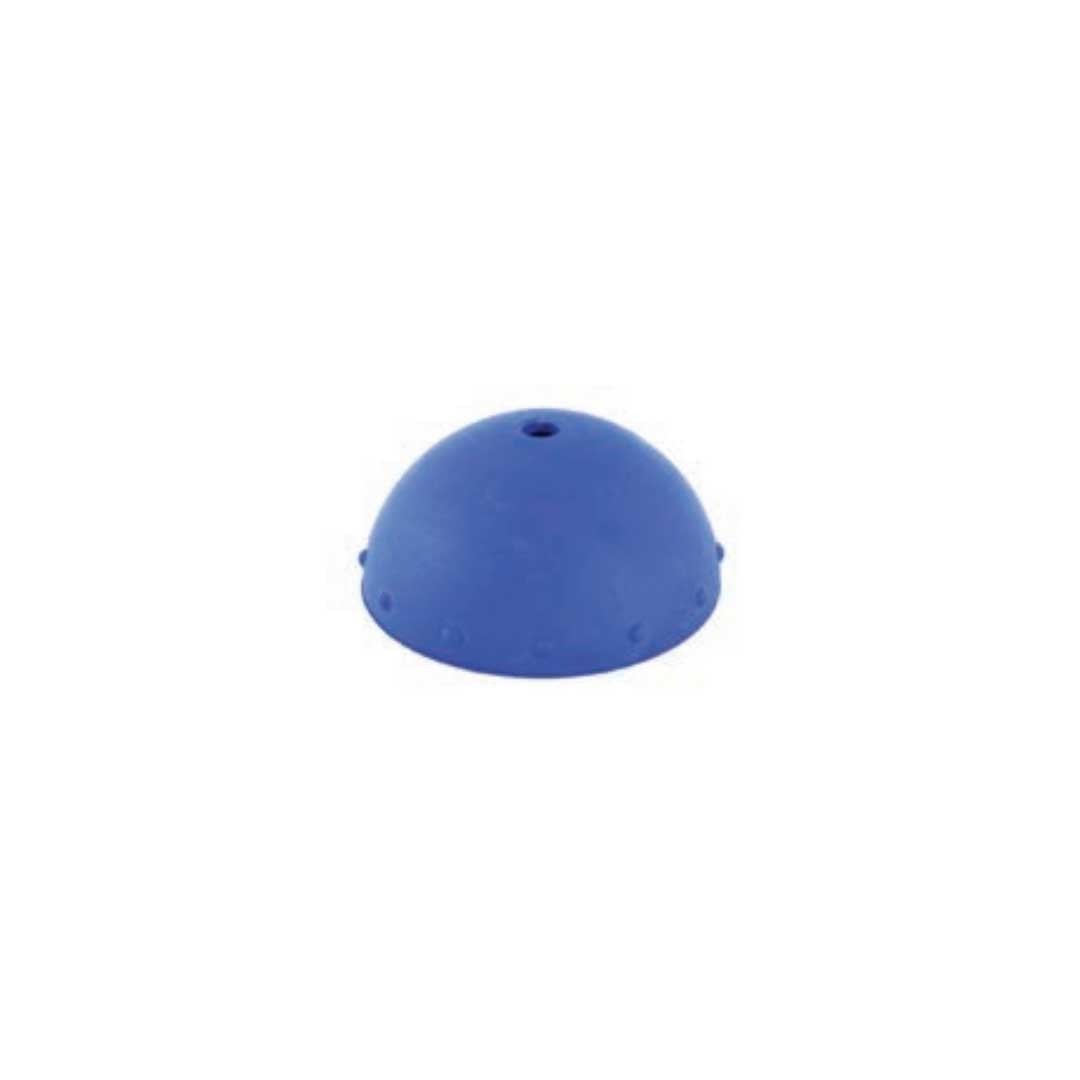

Product Name: IDE III Splash Guard / Nozzle Splash Guard (Part No. 400222-1)

Description:
This component is a protective splash guard specifically designed for the IDE III (Integral Diamond Eductor) cutting head assembly in abrasive waterjet cutting systems . It is a cylindrical cover, typically manufactured from durable, wear-resistant rubber or polymer material, that slips over the focusing tube (mixing tube) of the cutting head.

Its primary function is to contain the high-pressure water spray and abrasive garnet dust generated during the cutting process. As the ultra-high-pressure waterjet exits the mixing tube, it creates a fine mist of water and abrasive particles. This splash guard acts as a physical barrier, deflecting the spray downward into the catch tank, which significantly reduces airborne particulate matter, protects the operator, and prevents abrasive ingress into sensitive machine components such as the Z-axis bearings and linear rails .

Applications:

• Installed over the focusing tube (mixing tube) of the IDE III cutting head assembly

• Contains and deflects high-pressure water spray and abrasive dust during cutting operations

• Protects the Z-axis motion system and machine components from abrasive contamination

• Suitable for abrasive waterjet cutting systems operating at 60,000-90,000 PSI (approximately 4,137-6,480 bar)

Features:

• Durable Construction: Made from wear-resistant rubber or polymer material to withstand constant exposure to high-pressure water spray and abrasive particles

• Spray Containment: Effectively reduces the spray radius of the high-pressure waterjet, protecting surrounding components

• Easy Installation: Designed to slip over the mixing tube and is held in place by friction; requires no tools

• Abrasive Deflection: Deflects high-velocity garnet particles back into the tank, preventing them from embedding into machine ways or accumulating on sensitive sensors

• Operator Safety: Reduces the risk of operator exposure to high-pressure water mist and airborne abrasive dust

Maintenance:

Failure Diagnosis (When to Replace):

• Visible Cracks or Tears: The guard may exhibit cracks, tears, or fraying at the bottom edge due to abrasive wear

• Loss of Containment: If excessive water mist or abrasive dust escapes the cutting area, the guard is likely worn out and no longer effective

• Hardening: Over time, exposure to UV light, water, and chemicals can cause rubber guards to harden and lose their flexibility, leading to cracking

• Short Service Life: Standard rubber splash guards typically last between 100 and 350 operating hours, depending on material quality and piercing frequency

Inspection and Replacement Guidelines:

• Regular Inspection: Check the condition of the splash guard daily or before each major cutting job; look for signs of wear at the tip where the water jet exits

• Cleaning: Periodically rinse the guard with water to remove accumulated abrasive dust and debris that can harden and cause the material to become brittle

• Full Depressurization (Critical): Always fully depressurize the waterjet system and follow lockout/tagout procedures before installing or removing the splash guard

• Replacement: Replace the guard immediately if it shows signs of cracking, tearing, hardening, or if excessive spray is observed. A compromised guard will allow abrasive ingress, potentially damaging machine components

• Proper Seating: Ensure the guard is pushed fully onto the mixing tube to cover the exit area completely. An improperly seated guard will not contain spray effectively

• Upgrade Option: For longer life, consider carbides or hardened metal splash guards which offer superior resistance to abrasive wear

Cross-Reference Information:

• H2O Jet / AccuStream #: 400222-1

• IDE III Splash Guard

• Consumable wear part

• Weight: Lightweight, typically under 0.1 lbs
