Product Name: Check Valve Body / High Pressure Check Valve Housing (P/N WJ070060/591)

Description:
The Check Valve Body (WJ070060/591) is a precision-machined, high-strength stainless steel housing that serves as the central structural component for the check valve assembly in a BFT waterjet intensifier pump . This valve body houses the internal check valve cartridges, including both the pressure (discharge) and suction (inlet) valves, and controls the unidirectional flow of ultra-high-pressure water within the intensifier system . As a critical component of the pump's hydraulic circuit, the valve body ensures that water flows in the correct direction during each pump stroke, preventing destructive backflow that can damage the intensifier and cutting head .

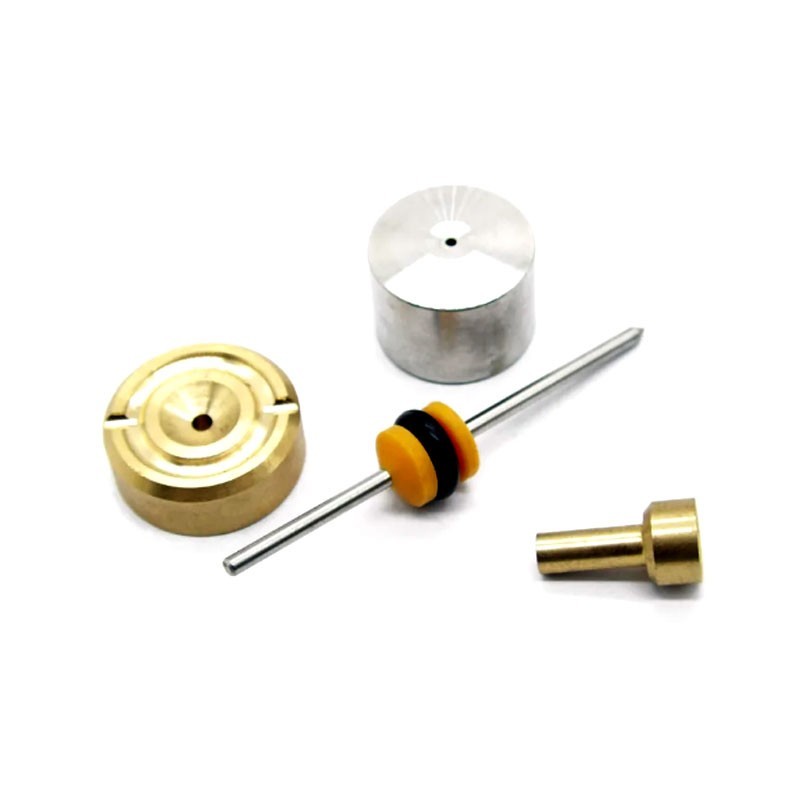

The valve body provides precisely machined sealing surfaces and bores to accept internal components such as the poppet, seat, spring, and Quad-Ring . The CP022040/591 designation is a direct OEM equivalent for BFT intensifier assemblies (models CP022001/2 and HT022012/172) . Proper alignment and sealing of this valve body are essential for maintaining system pressure integrity, preventing leaks, and ensuring consistent cutting performance .

Applications:

• Serves as the structural housing for inlet and outlet check valves in BFT waterjet intensifier pumps

• Houses the pressure (discharge) valve cartridge and suction (inlet) valve cartridge

• Controls unidirectional water flow from the low-pressure supply to the high-pressure cylinder and from the cylinder to the cutting head

• Used during scheduled preventive maintenance, major pump overhauls, or when symptoms of check valve failure appear

• Compatible with BFT intensifier assemblies CP022001/2 and HT022012/172, and cross-referenced with STM HD400052

Features:

• High-Strength Stainless Steel Construction: Provides excellent corrosion resistance and structural integrity under extreme pressure cycling up to 60,000-94,000 PSI (approximately 4,137-6,480 bar)

• Precision-Machined Internal Passages: CNC-machined to exact tolerances for proper fit with poppet, seat, spring, sealing rings, and Quad-Ring components

• Critical Flow Control: Directly responsible for preventing backflow and maintaining system pressure; failure can cause pressure drop, erratic intensifier cycling, and overheating of check valve bodies

• Direct OEM Replacement: Interchangeable with BFT part number CP022040/591 and cross-referenced with 5102206, 10170, and STM HD400052

• Component Integration: Works with Quad-Ring (9704521/220), O-ring backring (034858/220), back rings (CP022012/780, CP022015/527), and sealing components

Maintenance:

Failure Diagnosis (When to Replace):

• Backflow: If the check valve body fails to close properly, water can flow backward from the cutting head into the pump, causing damage to system components

• External Water Leakage: Visible water weeping from the valve body area indicates seal failure or body damage, requiring immediate inspection and replacement

• Pressure Drop: Inability to maintain rated cutting pressure suggests worn internal components or valve body erosion, often indicated by higher temperatures on the high-pressure cylinder or check valve

• Erratic Intensifier Cycling: Irregular piston movement or "knocking" may point to a faulty check valve within the body

• Overheating Check Valve Body: Excessive heat at the valve body indicates internal leakage; if one check valve body is hotter than the opposite side, internal backflow is occurring

• Visible Damage or Thread Wear: Inspect for cracks, severe internal erosion, pitting, scoring, or damaged threads during pump disassembly

• Scheduled Preventive Maintenance: It is recommended to inspect intensifier cylinders and valve bodies at least once per year or after every 2,000 to 3,000 hours of operation

Inspection and Replacement Guidelines:

• Full Depressurization (Critical): Before any maintenance, place the main electrical disconnect in the OFF position, bleed down all high-pressure lines, and follow lockout/tagout procedures

• Replace Internal Components as a Set: When servicing the check valve assembly, replace the Quad-Ring, O-ring backup ring, back rings, poppet, and seat simultaneously as a complete repair kit to ensure proper sealing and component compatibility

• Clean Installation: Perform the rebuild in a designated clean area. Thoroughly clean the valve body cavity and all sealing surfaces with a soft, lint-free cloth. Remove all debris, old seal residue, and mineral deposits

• Inspect for Damage: Examine the valve body bore for scoring, pitting, erosion, or thread damage. If the body is cracked, severely eroded, or has damaged threads, the entire valve body must be replaced

• Lubrication: Apply a thin, uniform layer of manufacturer-recommended high-pressure grease to O-rings, backup rings, and the Quad-Ring during installation to prevent pinching, rolling, or tearing during assembly

• Torque Compliance: When reinstalling the check valve body and retaining components, tighten all hardware to the specific torque values listed in the equipment service manual

• Inspect Mating Surfaces: Check the sealing head and cylinder interfaces for scratches or mechanical damage. Lap surfaces or replace if necessary

• Cross-Reference Information: Interchangeable with BFT #CP022040/591, 5102206, 10170, STM HD400052, 105787, and 5300007

Cross-Reference Information:

• BFT #: CP022040/591, WJ070060/591

• Other #: 5102206, 10170, STM HD400052, 105787, 5300007

• Component of Intensifier Assemblies: CP022001/2 & HT022012/172

• Works with: Quad-Ring (9704521/220), O-ring backring (034858/220), Back Ring (CP022012/780, CP022015/527), High Pressure Cylinder (CP022009/779)

• Rated Pressure: 60,000-94,000 PSI (4,137-6,480 bar)
