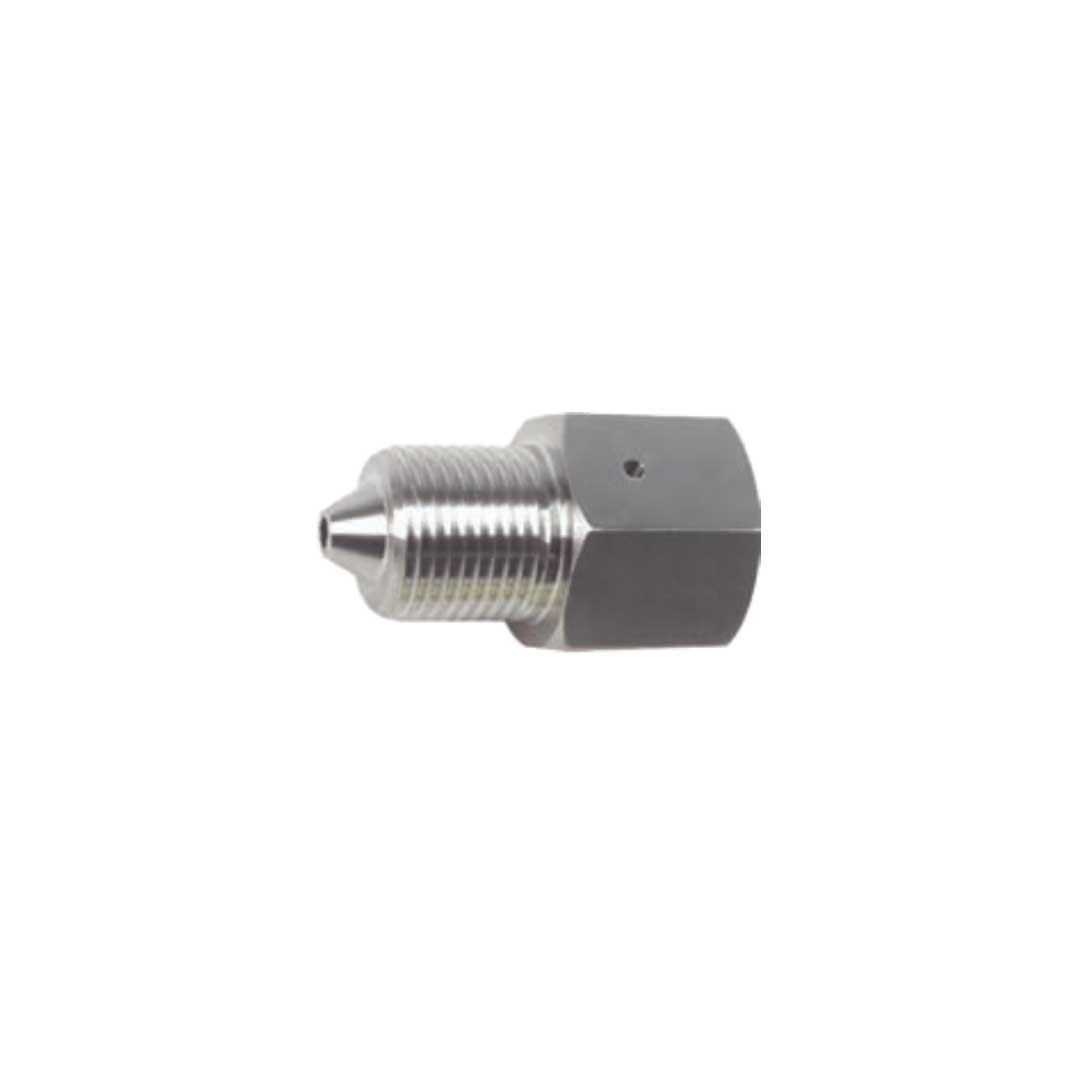

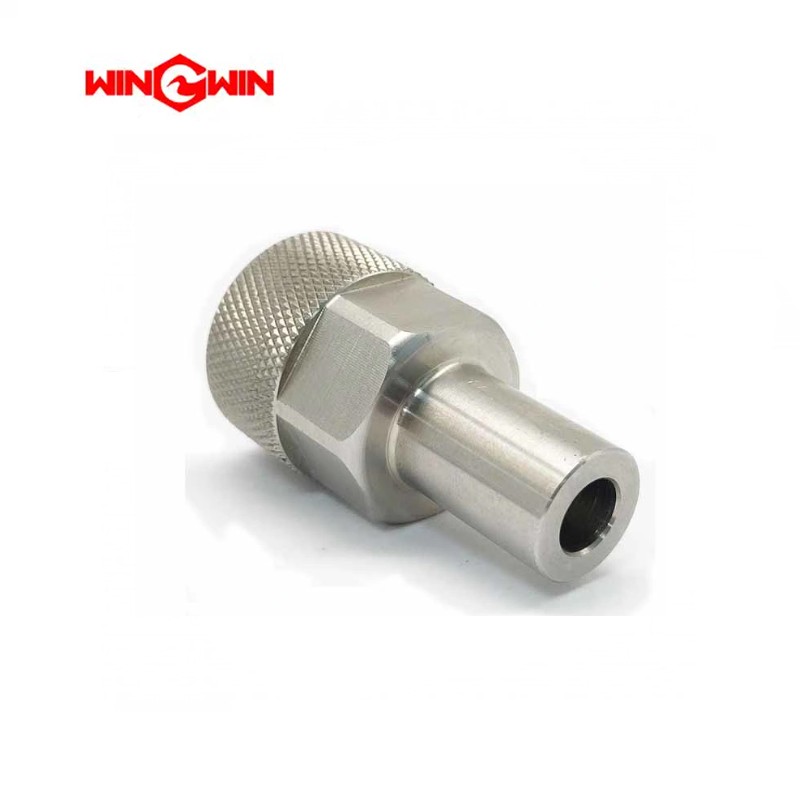

Product Name: Short Stop Filter Adapter Body / Inline Filter Housing (Part No. 100157-1)

Description:
This component is the adapter body for the "Short Stop" inline high‑pressure filter, specifically designed for waterjet cutting systems . It serves as the central housing that contains the replaceable filter element and connects directly into the high‑pressure water line, typically just before the cutting head or intensifier pump . The "Short Stop" filter is a critical safety and maintenance device, designed to capture microscopic debris and protect the ultra‑precision diamond or sapphire orifice from erosion and clogging .

This adapter body features a 3/8 inch high‑pressure connection, making it compatible with standard waterjet plumbing. It is manufactured from corrosion‑resistant stainless steel to withstand continuous operation at pressures up to 60,000‑94,000 PSI (approximately 4,137‑6,480 bar). This part number is an OEM direct replacement for H2O Jet machines and is cross‑referenced with WSI #FL20454288 and KMT #20454288 .

Applications:

• Installed as the final filtration stage (last chance filter) in the high‑pressure water line immediately before the cutting head or intensifier pump

• Holds the replaceable fine mesh filter element that captures particles that could damage the jewel orifice

• Essential for protecting the IDE (Integrated Diamond Eductor) cutting head and other high‑precision nozzles from contamination

• Rated for 60k‑94k PSI ultra‑high pressure waterjet systems

Features:

• Stainless Steel Construction: High‑strength, corrosion‑resistant material ensures long service life in harsh waterjet environments

• 3/8 Inch High‑Pressure Connections: Industry‑standard port size for direct integration into existing HP plumbing

• Inline Design: Allows easy access for routine filter element replacement without disassembling other system components

• Direct OEM Replacement: Interchangeable with H2O Jet #100157‑1, WSI #FL20454288, and KMT #20454288

• Lightweight: Approximately 0.222 lbs for easy handling during maintenance

Maintenance:

Failure Diagnosis:

• Gradual Pressure Drop: A slow decline in cutting pressure often indicates a clogged filter element inside the adapter body

• Premature Orifice Wear: Frequent replacement of jewel orifices suggests the filter element is not being changed often enough or the adapter body seal is allowing bypass

• External Water Leakage: High‑pressure water weeping from the adapter body connections indicates seal failure or a cracked housing

• Visible Filter Condition: During maintenance, if the filter element appears heavily discolored, coated with sediment, or physically deformed

Replacement and Inspection Guidelines:

• Filter Element Replacement Frequency: Replace the internal filter element regularly (typically every 500‑1,000 operating hours) or more frequently if water quality is poor

• Critical for IDE Heads: Use of a Short Stop filter is mandatory for warranty protection of IDE III cutting heads and is highly recommended for optimal diamond orifice life

• Full Depressurization (Critical): Before any maintenance, fully depressurize the waterjet system and follow lockout/tagout procedures

• Housing Inspection: When changing the filter element, inspect the adapter body bore and sealing surfaces for pitting, erosion, or scoring

• Seal Replacement: Always replace the large O‑ring or seal that seals the adapter body cap during each filter change to prevent external high‑pressure water leaks

• Inspect for Debris: Check the inside of the adapter body for accumulated sludge, rust, or grit; excessive contamination indicates a need for better primary filtration

• Torque Compliance: When reassembling, tighten the cap to the torque value specified in the equipment service manual to avoid damaging threads or causing leaks

• Water Quality Impact: Poor water quality accelerates filter clogging; maintain proper primary filtration to extend element life
