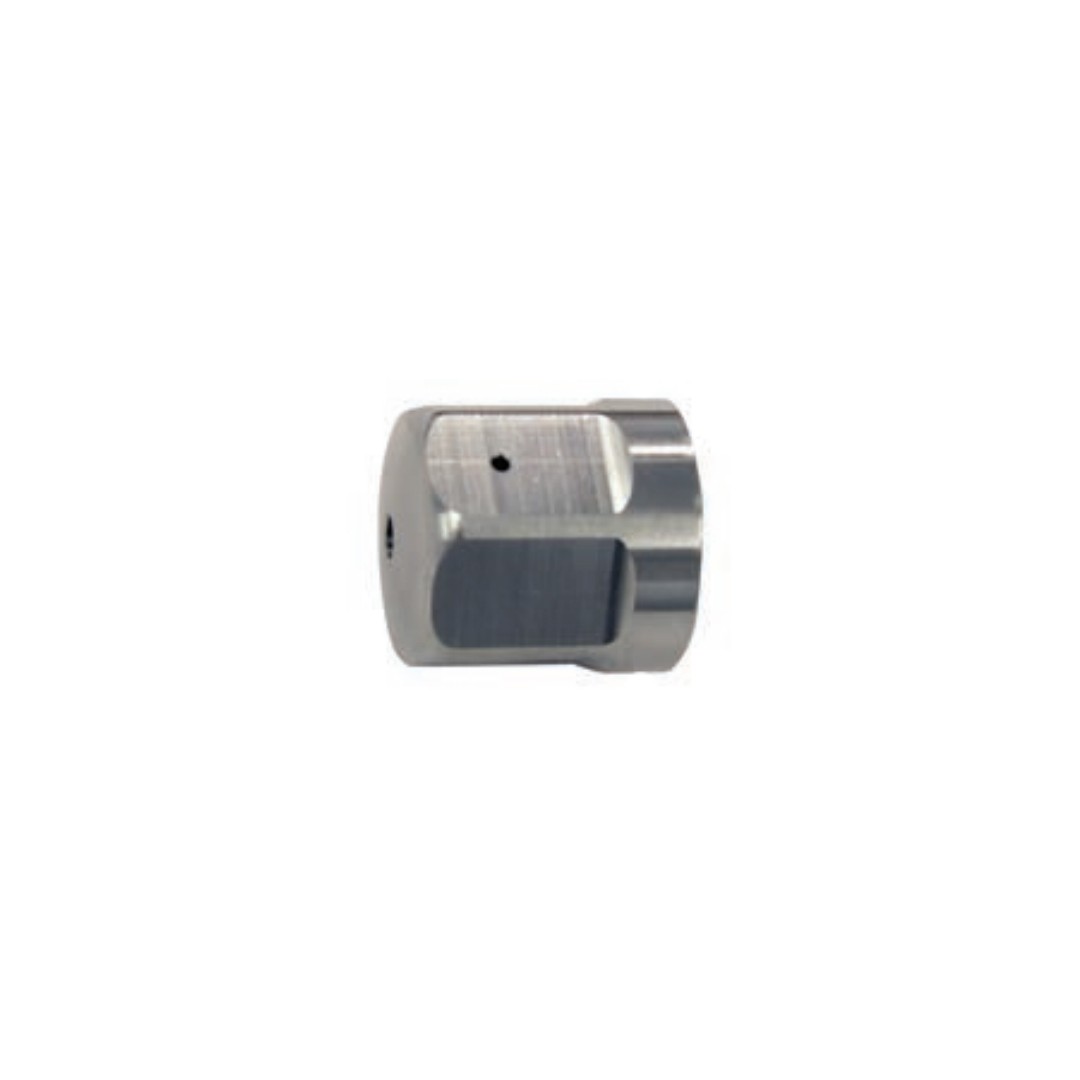

Product Name: Short Stop Filter Adapter Insert (Part No. 100192-1)

Description:
This component is a precision stainless steel adapter insert designed for the "Short Stop" inline high-pressure filtration system used in waterjet cutting equipment. It functions as the internal flow guide and sealing interface that positions the replaceable filter element within the filter housing (part number 100157-1) [citation:2]. The insert ensures that high-pressure water is directed through the filter media, capturing contaminants before they reach the cutting head orifice. This design is critical for protecting expensive components like intensifier seals and diamond orifices from microscopic debris [citation:1].

Applications:

• Serves as the internal structural component of the Short Stop inline filter assembly (e.g., 100157-1).

• Positions and seals the replaceable filter element (typically 0.006" absolute filtration) [citation:1].

• Directs the flow of ultra-high-pressure water (60,000–94,000 PSI) through the filtration media.

• Essential for maintaining water purity in the final stage before the waterjet mixing tube.

Features:

• High-Strength Material: Manufactured from corrosion-resistant stainless steel to withstand the extreme erosive forces of UHP water.

• Precision Fit: Machined to tight tolerances to ensure a leak-proof seal within the housing.

• Protective Function: Acts as the last line of defense to prevent clogging of the jewel orifice.

• Compatibility: Rated for extreme pressure (EP) systems, often used with IDE (Integrated Diamond Eductor) cutting heads [citation:1].

Maintenance:

• Regular Inspection: During filter changes, inspect the insert for signs of pitting, erosion, or scoring caused by high-velocity water flow or debris.

• Cleaning: Wipe the insert with a lint-free cloth. Do not use metal tools that could scratch the sealing surface.

• Replacement: The insert itself is not a regular consumable (unlike the filter element). However, replace it immediately if the sealing surface is damaged or if the water bypasses the filter element.

• Full Depressurization: Always shut down and fully depressurize the waterjet system before disassembling the Short Stop filter assembly.
