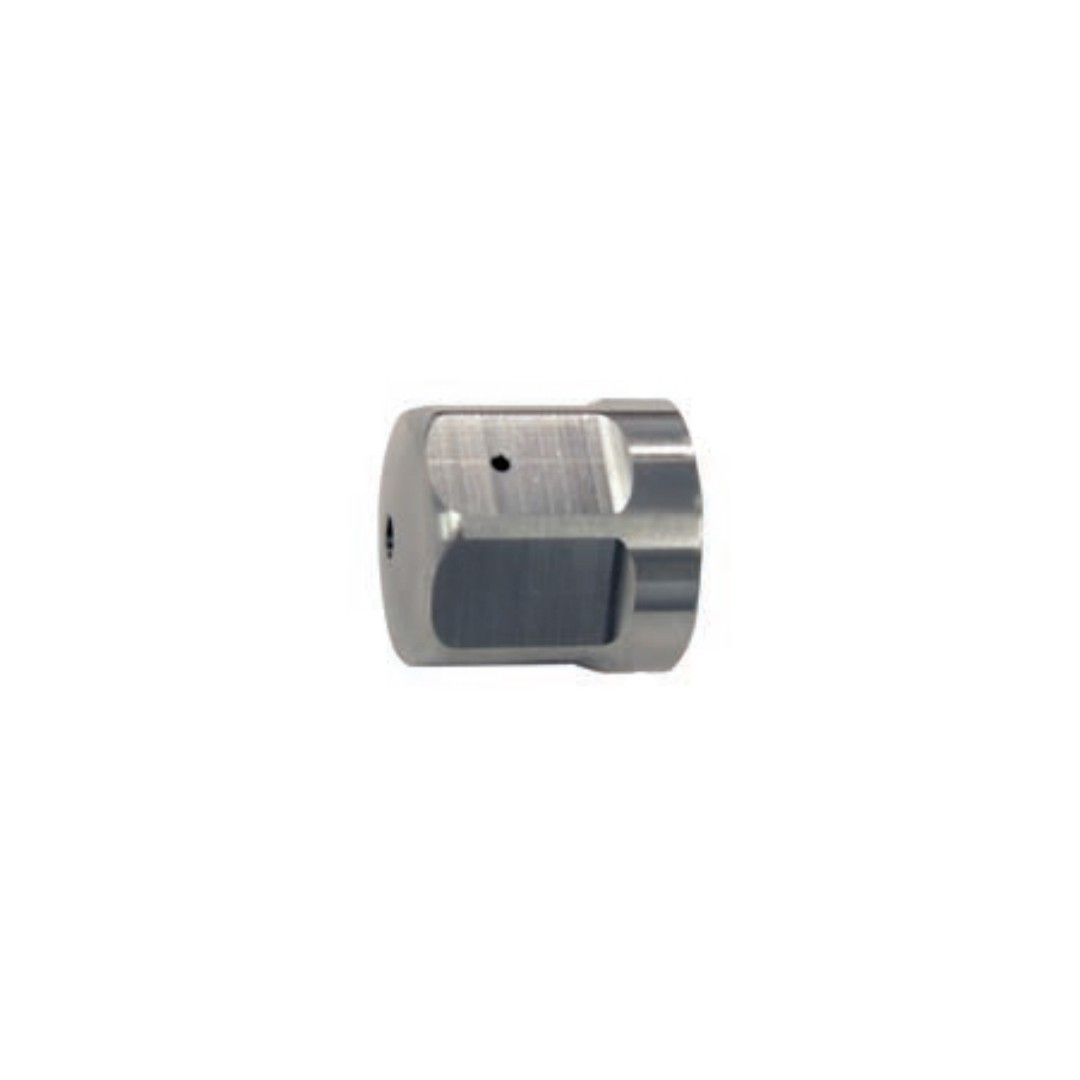

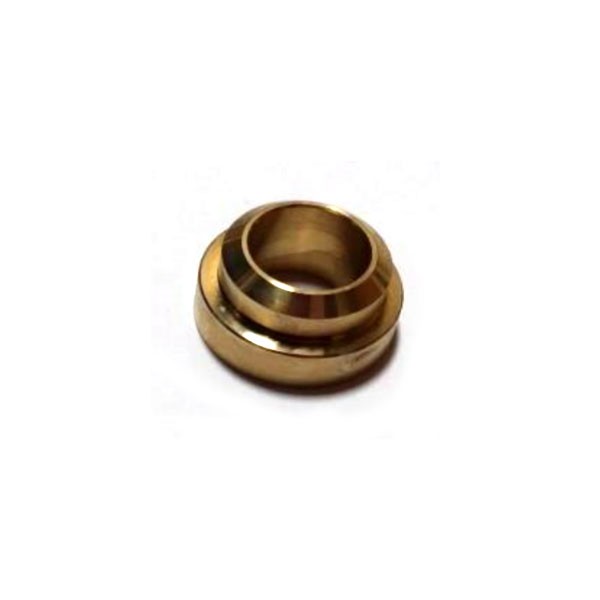

Product Name: Hi-Performance Nozzle Nut (Part No. 100038-1)

Description:
The Hi-Performance Nozzle Nut (100038-1) is a precision-machined retaining nut that serves as a critical fastening component for the cutting head assembly in high-performance waterjet cutting systems. It is designed to securely hold the nozzle, mixing tube, and other internal components in position during ultra-high-pressure cutting operations. This component is manufactured from high-strength, corrosion-resistant stainless steel to withstand the intense vibration and mechanical stress inherent in waterjet intensifier pumps operating at 60,000–90,000 PSI (approximately 4,137–6,200 bar).

The nozzle nut functions by threading onto the nozzle body (such as P/N 100037-1) or cutting head housing, applying the necessary clamping force to create a leak-tight, metal-to-metal seal for the high-pressure water circuit. It is also cross-referenced under part numbers 1-13632  and 1-12751 .

Applications:

• Secures the nozzle, mixing tube, and seal stack within the cutting head assembly

• Provides the clamping force required for a leak-tight high-pressure seal

• Maintains coaxial alignment between the water orifice and mixing tube for cutting accuracy

• Suitable for abrasive waterjet cutting systems operating at 60,000–90,000 PSI (4,137–6,200 bar)

• Compatible with H2O Jet, AccuStream, Flow, and other standard waterjet systems

Features:

• High-Strength Stainless Steel Construction: Provides excellent corrosion resistance and structural integrity under extreme pressure cycling

• Precision-Machined Threads: Ensures smooth engagement with the nozzle body and consistent torque application

• Wrench Flats: Machined flats for reliable torquing with standard wrenches

• Non-Wear Component Classification: The nozzle nut itself is not a direct wear part; however, long-term exposure to vibration, high pressure, and repeated installation may cause thread wear or deformation over time

Maintenance:

Failure Diagnosis (When to Inspect or Replace):

• Thread Damage: Stripped, galled, or corroded threads prevent proper tightening and will cause high-pressure leaks—replace immediately

• External Water Leakage: High-pressure water weeping from the nozzle nut connection area indicates seal failure or insufficient clamping force

• Loose Connection: If the nut becomes loose during operation due to vibration, inspect threads for wear and replace if necessary

• Visible Cracks or Deformation: Any cracking, warping, or visible distortion of the nut requires immediate replacement

• Difficult Assembly: If the nut requires excessive force or feels gritty during threading, threads may be damaged

• Performance Degradation: Poor cutting quality or jet divergence may indicate loose connection allowing misalignment

Inspection and Replacement Guidelines:

• Full Depressurization (Critical): Before any maintenance, place the main electrical disconnect in the OFF position, bleed down all high-pressure lines, follow lockout/tagout procedures, and purge residual pressure from the system

• Thread Inspection: Before reassembly, carefully inspect the nut's internal threads for wear, galling, corrosion, or damage—clean threads thoroughly

• Torque Compliance: Tighten the nozzle nut to the specific torque value listed in the equipment service manual using a calibrated torque wrench

• Two-Wrench Method: Use the appropriately sized wrench on the nut's wrench flats; counter-hold the nozzle body with a second wrench to avoid twisting stress on the assembly

• Thread Lubrication: Apply a thin, even layer of high-pressure anti-seize lubricant to the threads during reassembly to prevent galling and ensure accurate torque application

• Proper Alignment: After tightening, verify that any abrasive inlet port remains correctly oriented (e.g., accessible on the side of the cutting head)

• Seal Inspection: When reinstalling the nozzle nut, inspect and replace the associated O-rings, backup rings, and gaskets to ensure leak-free operation

• Non-Wear Part Note: Under normal operating conditions with proper installation and clean threads, the nozzle nut is not a high-wear consumable and can provide long service life

• Storage: Store spare nozzle nuts in a clean, dry environment away from impact and corrosive substances

Cross-Reference Information:

• H2O Jet / AccuStream #: 100038-1

• 1-13632

• 1-12751

• Used with Hi-Performance Nozzle Body 100037-1

• Also known as Retaining Nut, Nozzle Clamp Nut, Waterjet Nozzle Nut
