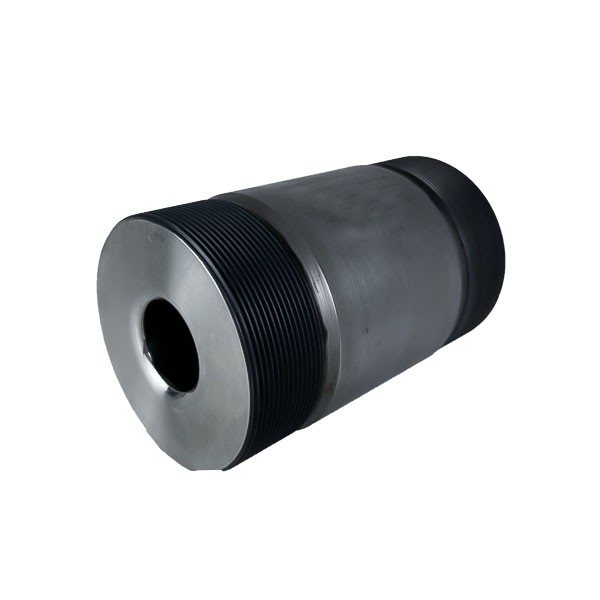

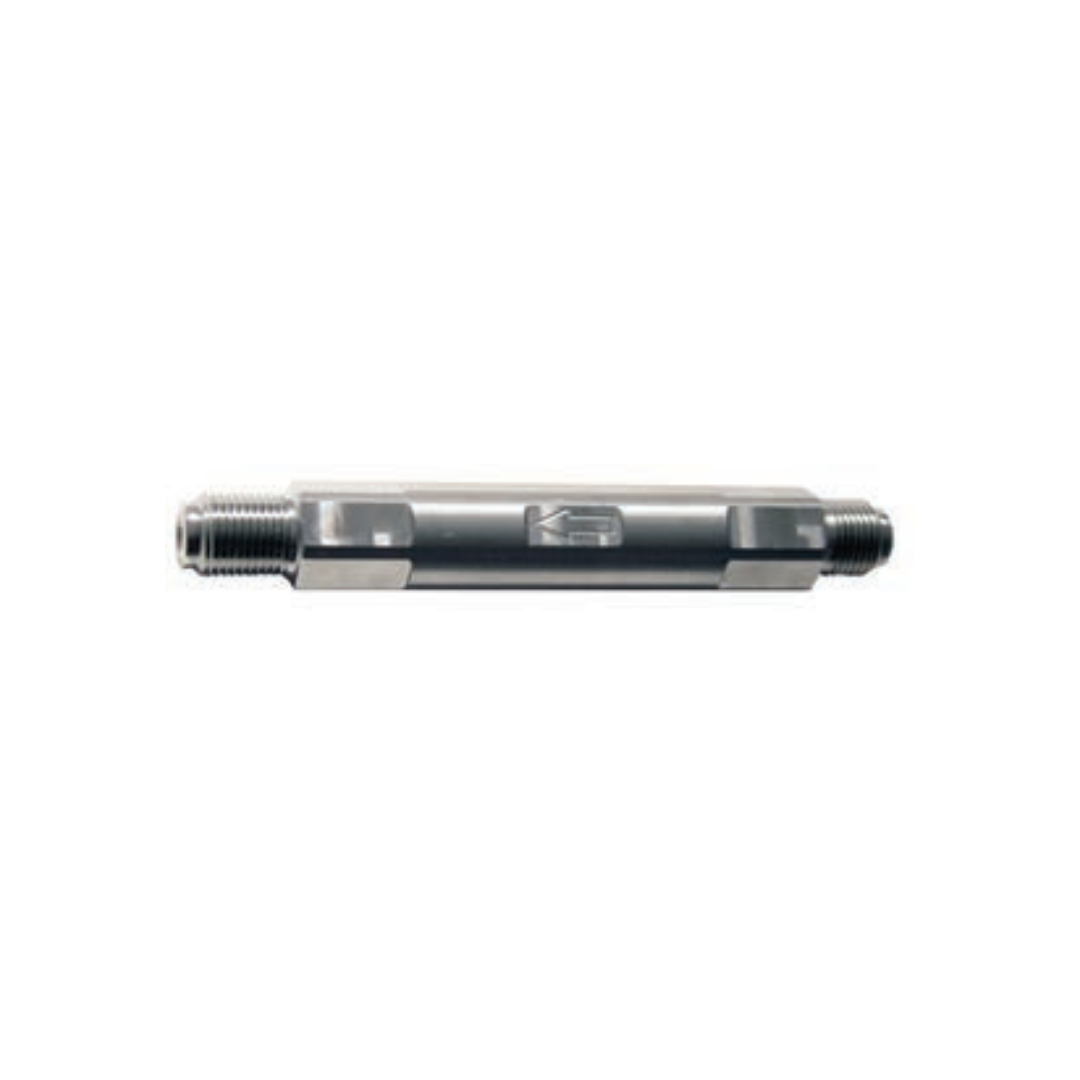

Product Name: Hi-Performance Nozzle Body (Part No. 100037-1)

Description:
The Hi-Performance Nozzle Body (100037-1) is a precision-machined stainless steel component that serves as the central structural housing of a waterjet cutting head assembly. It functions as the critical interface that connects the water on/off valve (water switch) to the mixing chamber and focusing tube. Designed to maintain strict coaxial alignment between the water orifice and the mixing tube, its precision internal bore ensures a smooth, high-velocity water flow with minimal turbulence and pressure loss. This component is rated for continuous operation at up to 60,000 PSI (approximately 4,137 bar) and is a direct OEM replacement for H2O Jet, AccuStream, and Flow waterjet systems.

Applications:

• Main structural interface between the water on/off valve and the mixing chamber

• Aligns and supports the water orifice, mixing chamber, and focusing tube

• Provides a high-pressure water conduit from the valve to the cutting head assembly

• Suitable for both pure water cutting and as the base for abrasive waterjet cutting heads

Features:

• Precision-machined stainless steel construction for structural integrity and corrosion resistance

• Hi-performance internal geometry for smooth water flow, minimizing turbulence and pressure loss

• Maintains perfect coaxial alignment between orifice and mixing tube for cutting accuracy and extended consumable life

• Direct OEM replacement (cross-references: WE000248, 1-14448)

Maintenance:

Critical Torque Specification:

• Maximum Torque: 25 ft-lbs (33.9 Nm) . Exceeding this torque can distort the precision sealing face, creating a groove that will cause high-pressure leaks.

General Care:

• Inspect for Erosion: During routine cutting head maintenance, inspect the internal bore and cone sealing surfaces for erosion, pitting, or scoring. Internal damage will degrade cutting performance.

• Thread Care: Clean all threads thoroughly before reassembly. Inspect for galling or damage.

• Lubrication: Apply a thin, even layer of high-pressure anti-seize thread lubricant to male threads during reassembly to prevent galling and ensure accurate torque application.

• Full Depressurization (Critical): Before any disassembly or maintenance, fully depressurize the waterjet system, shut off the high-pressure pump, trigger the cutting head to release residual pressure, and follow all lockout/tagout procedures.
