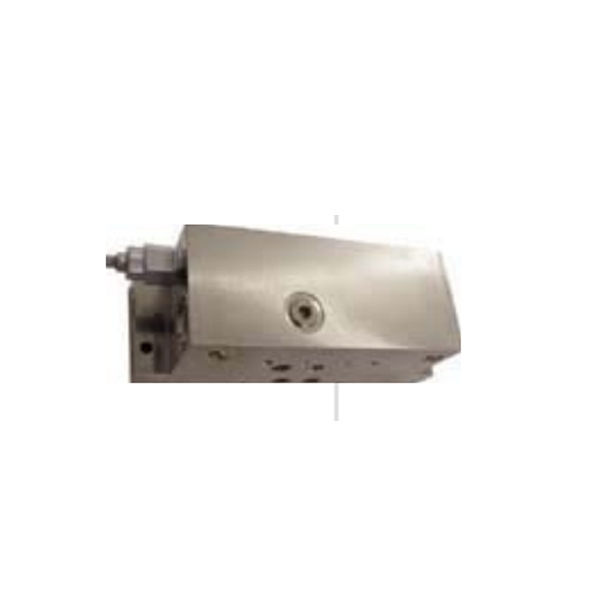

Product Name: Short Stop Filter Assembly (40k-60k-94k) – Part No. 400096-1

Description:
This component is a high-pressure inline "Short Stop" filter assembly, specifically engineered for waterjet cutting systems operating at 40,000 to 94,000 PSI (approximately 2,758 to 6,480 bar) . It is designed as the final filtration stage, installed directly at the cutting head mounting collar, where the high-pressure water line connects to the cutting head assembly .

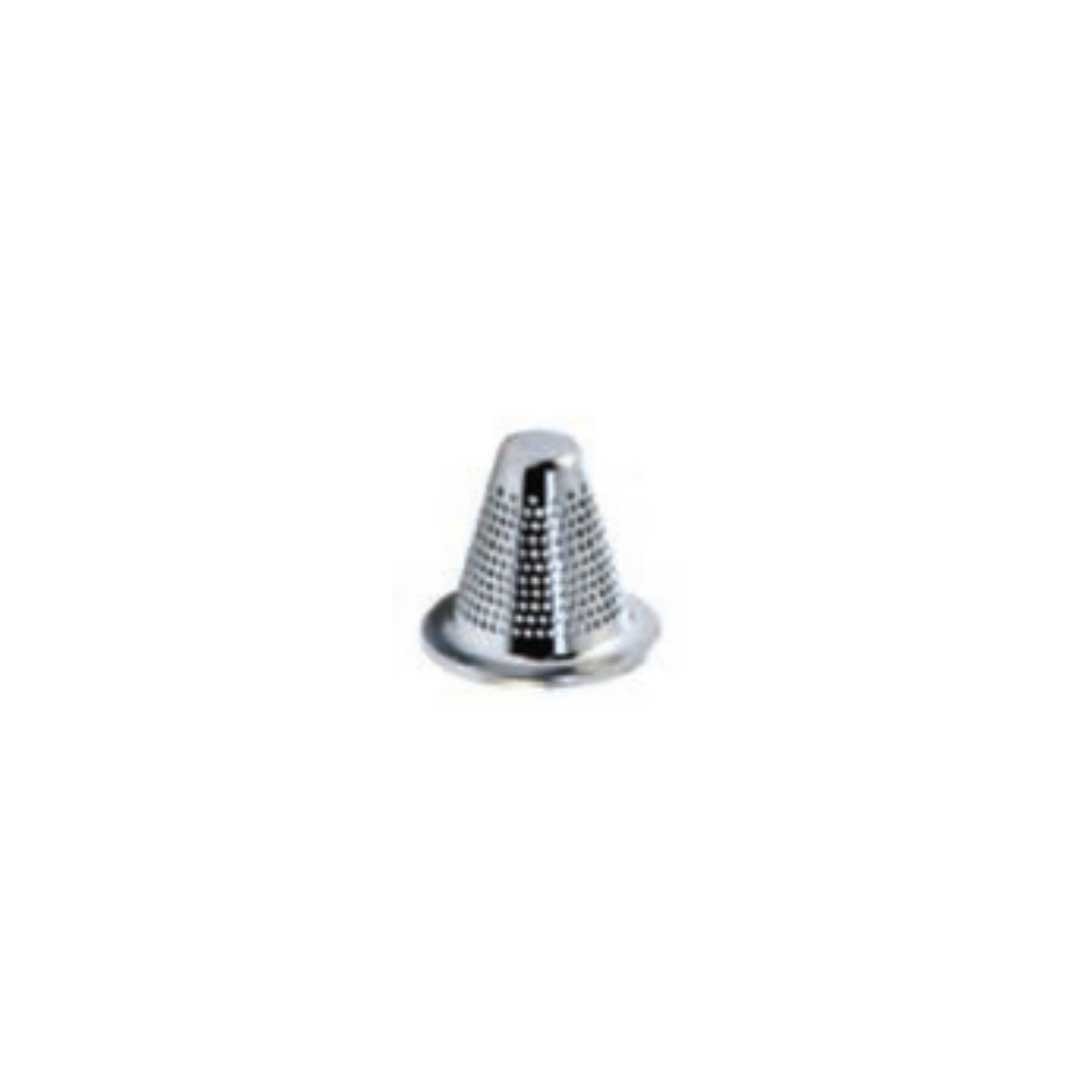

The filter assembly contains a fine mesh screen element that captures microscopic contaminants, stray particles, and debris present in the high-pressure water line before they can enter and damage the cutting head orifice . These contaminants, if not filtered, can block or erode the precision jewel orifice (sapphire or diamond), leading to poor cutting performance, shortened orifice life, and increased maintenance costs .

This filter is a critical protective component, especially recommended for use with diamond orifice cutting heads (such as IDE III assemblies) to ensure maximum orifice life and cutting precision . It is designed to catch particles larger than the orifice hole size, preventing them from impacting or blocking the nozzle . This specific part number (400096-1) is an OEM replacement filter assembly, cross-referenced with H2O Jet part numbers and other industry standards .

Applications:

• Installed at the cutting head mounting collar as the final filtration stage before the high-pressure water enters the orifice assembly

• Protects the cutting head orifice (sapphire or diamond) from contamination-induced damage, blockage, and premature wear

• Extends the service life of diamond orifices (such as those in IDE III cutting heads)

• Suitable for ultra-high pressure waterjet systems operating at 40k, 60k, and 94k PSI

• Compatible with H2O Jet, Jet Edge, and other standard waterjet cutting systems

Features:

• High-Pressure Rating: Engineered for continuous operation at pressures up to 94,000 PSI (6,480 bar)

• Fine Mesh Filtration: Captures microscopic contaminants and stray particles that can damage or block the precision orifice

• Critical Protection Component: Serves as the last line of defense for the cutting head orifice, preventing debris from entering the nozzle

• Direct OEM Replacement: Interchangeable with H2O Jet #400096-1 and other industry standard part numbers

• Inline Design: Installs directly in the high-pressure water line at the cutting head for convenient access and service

Maintenance:

Failure Diagnosis (When to Replace or Service):

• Gradual Pressure Drop: A slow decline in cutting pressure may indicate a clogged filter element restricting water flow

• Premature Orifice Wear or Blockage: Frequent replacement of jewel orifices or poor cutting performance suggests the filter element is allowing contaminants to pass through or is not being serviced regularly

• Degraded Cut Quality: Unusual edge quality or reduced cutting speed may indicate that debris is reaching the orifice due to a clogged or damaged filter

• Visible Contamination: During inspection, if the filter element or housing shows significant debris accumulation

Replacement and Inspection Guidelines:

• Regular Inspection and Cleaning: The filter element should be inspected and cleaned periodically; the mesh screen can be cleaned and reused unless damaged

• Preventive Replacement: Even with cleaning, the filter element should be replaced on a regular schedule based on operating hours and water quality to prevent clogging and ensure optimal protection

• Full Depressurization (Critical): Before any maintenance, fully depressurize the waterjet system, disconnect the high-pressure water supply, and follow lockout/tagout procedures to prevent severe injury from accidental high-pressure water release

• Housing Inspection: When servicing, inspect the stainless steel filter housing for cracks, corrosion, or thread damage

• Seal Replacement: Always replace any O-rings or seals associated with the filter housing during service to prevent external high-pressure water leaks

• Proper Installation: Verify the filter is installed with the correct orientation in the high-pressure line as indicated on the housing

• Water Quality Impact: Poor water quality (contaminants, hardness, inadequate primary filtration) accelerates filter clogging; maintain proper primary filtration and water treatment to extend filter service life

• Storage: Store spare filter assemblies in a clean, dry environment to prevent contamination before use
