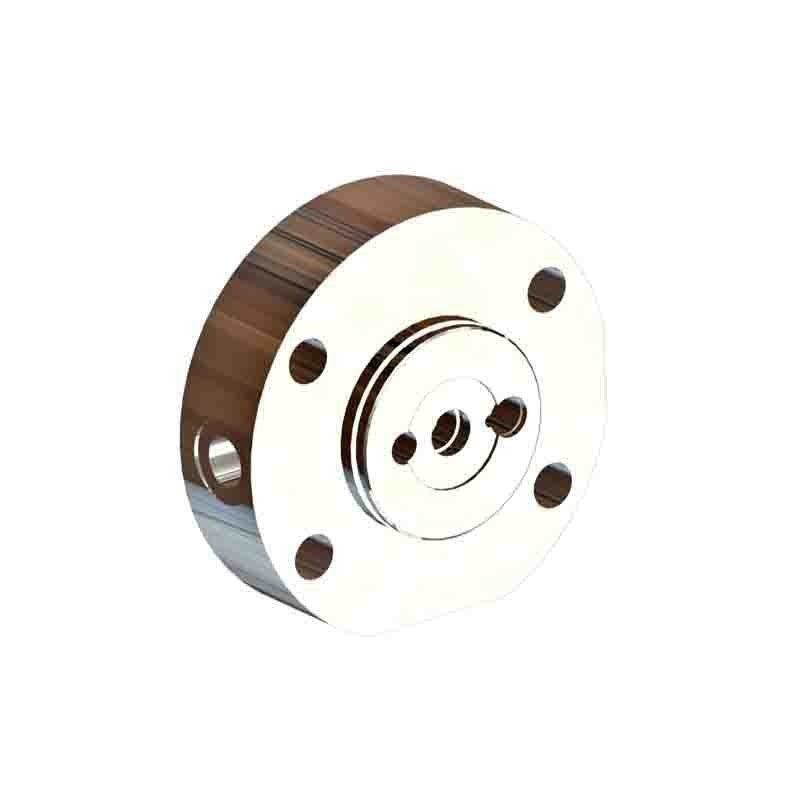

Product Name: Connection Flange / Flange Adapter (Part No. HT022009/172)

Description:
This component is a high-strength metallic connection flange designed for use in waterjet intensifier pump assemblies. It serves as a structural mounting and fluid interface component.

Applications:

• Used to connect the hydraulic cylinder to the high-pressure cylinder within the intensifier stack.

• Functions as a mounting base for pressure sensors, transducers, or ancillary hydraulic lines.

• Facilitates the secure assembly of the pump wet-end and fluid distribution manifolds.

Features:

• High-Strength Material: Constructed from corrosion-resistant stainless steel or hardened alloy to withstand the clamping forces and pressure cycling of the intensifier.

• Precision Machining: Machined to exact tolerances to ensure perfect alignment of the cylinder bores.

• Sealing Surfaces: Features precision-machined mating surfaces and O-ring grooves for leak-free static sealing under high pressure (up to 60,000 PSI).

Maintenance:

Inspection:

• Check for Cracks: Inspect the flange body for cracks or stress fractures, especially around bolt holes.

• Inspect Sealing Face: Look for scratches, pitting, or erosion on the mating surfaces that could compromise the O-ring seal.

• Thread Check: Inspect mounting bolt threads for damage or corrosion.

Installation & Replacement:

• Full Depressurization: Always fully depressurize the system and lockout/tagout before removing bolts.

• Torque Compliance: When reinstalling, tighten mounting bolts in a crisscross pattern to the torque values specified in the service manual.

• Clean Surfaces: Ensure mating surfaces are clean and free of old sealant.

• Seal Replacement: Always replace the O-ring or gasket when reinstalling the flange.
