CP022012780-backup.117.3-1

Short Description:

Used for BFT/BHDT pump.
We enable precise cutting and protect your efficient production.
With genuine BFT parts, your waterjet system always runs like new.
1. Performance revitalized, costs halved.
2. Choose BFT, choose reliability.

INQUIRY

Details

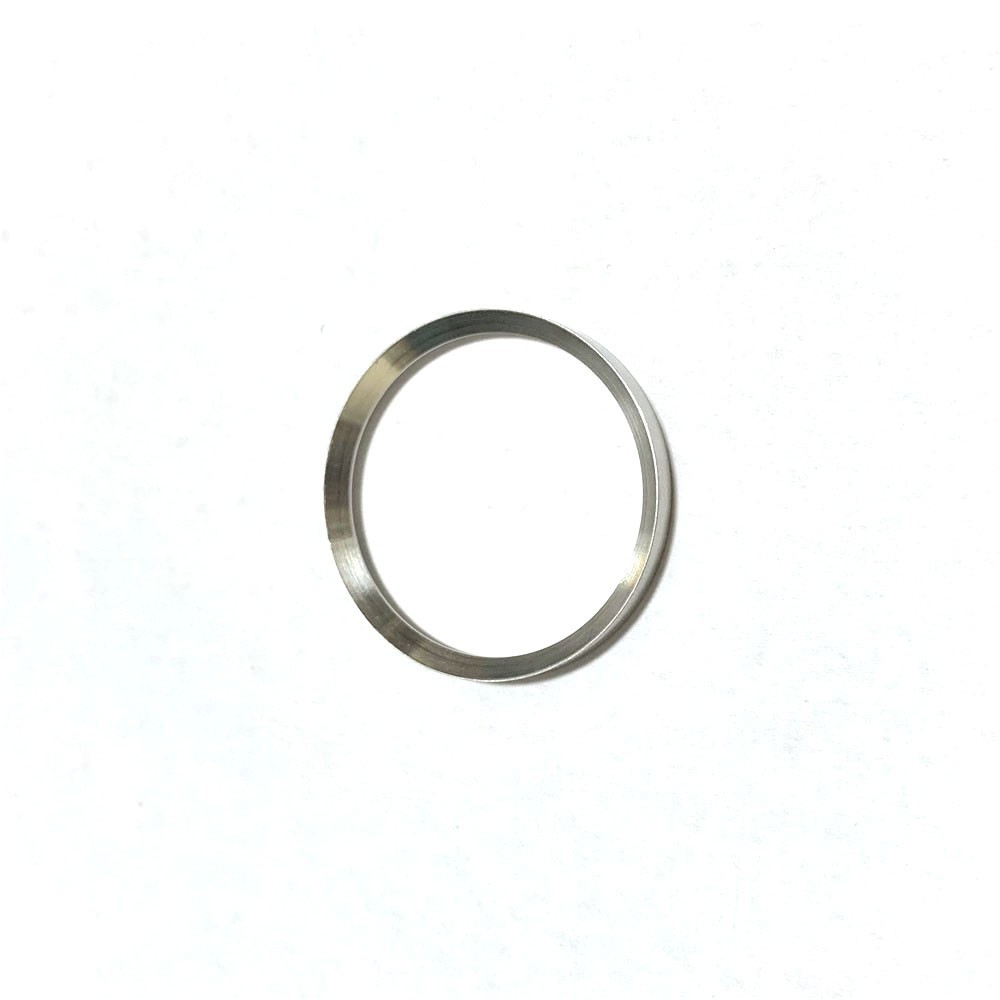

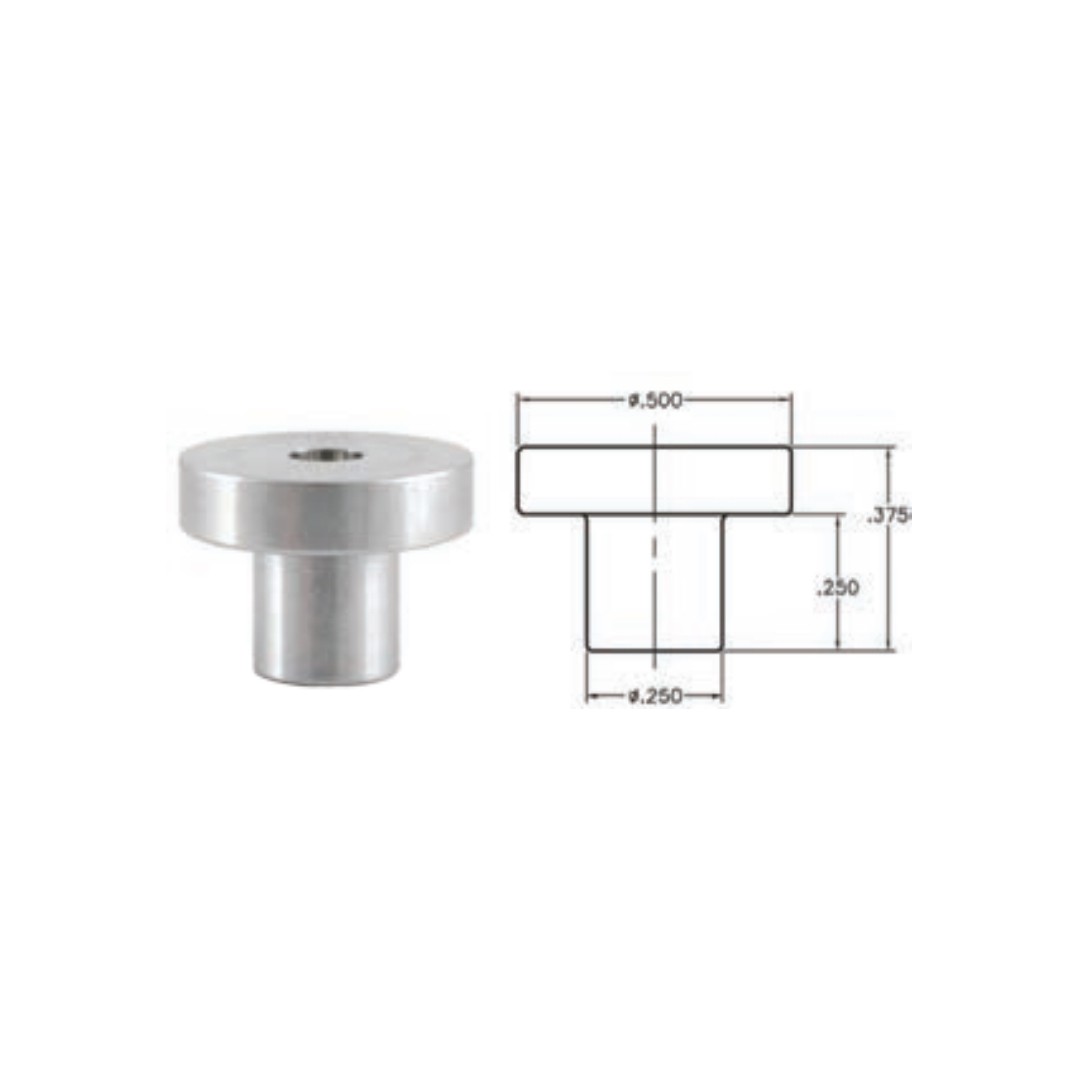

Product Name: Back Ring / Dynamic Backup Ring (Part No. CP022012/780)

Description:
This component is a precision back-up ring, specifically referred to as a dynamic backup ring or back ring, designed for BFT waterjet intensifier pumps . It is a rigid, precision-machined ring manufactured from high-strength materials such as PTFE, PEEK, or reinforced polymer.

Unlike a standard O-ring, which is flexible and deforms under pressure, the back-up ring is a rigid component. Its primary engineering function is to be installed adjacent to an O-ring within a seal groove to provide critical anti-extrusion support. By filling the clearance gap between the O-ring and the metal gland wall, the rigid back-up ring prevents the softer seal material from being forced into the gap under ultra-high pressure. This prevents rapid seal failure, pressure loss, and high-pressure water leaks.

This component is designed for dynamic sealing applications within the high-pressure cylinder and intensifier stack of BFT waterjet cutting systems. It is rated for continuous operation at up to 4,137 bar (approximately 60,000 PSI).

Applications:

Installed as a support component adjacent to O-rings in the high-pressure seal stack of BFT waterjet intensifier pumps.
Used in check valve assemblies, seal heads, and the main high-pressure cylinder interface.
Provides anti-extrusion protection for dynamic seals under extreme pressure cycling.
Suitable for ultra-high pressure waterjet systems operating at 60,000 PSI (4,137 bar) and above.
Compatible with BFT, BHDT, WJS, Maximator Jet, STM, and Intermac Primus waterjet intensifier systems.

Features:

Rigid Construction: Made from hard, non-deformable materials (PTFE, PEEK, composites) that withstand extrusion forces under extreme pressure.
Anti-Extrusion Function: Fills the extrusion gap, preventing the softer O-ring from being forced into the gap under high pressure.
Precision Dimensions: Machined to exact tolerances for a perfect fit in the designated seal groove.
Critical Consumable Component: Designed for periodic replacement; a worn or missing backup ring leads to immediate seal failure under high pressure.
OEM Compatibility: Direct replacement for BFT part number CP022012/780; cross-referenced with IP4010, 106013, 5300069, and HD400045.

Maintenance:

Failure Diagnosis (When to Replace):

External Water Leakage: Visible high-pressure water weeping from the pump weep hole or cylinder area indicates O-ring seal failure, at which point the backup ring must also be replaced.
Pressure Drop: Inability to maintain rated cutting pressure suggests internal seal failure, often involving extrusion damage to the O-ring caused by an unsupported gap.
Regular Overhaul Schedule: It is standard practice to replace the O-ring and its backup ring together as a set during any scheduled pump maintenance or seal replacement.
Visible Damage During Disassembly: When the pump is opened, inspect the backup ring for signs of deformation, cracking, splitting, or compression set. Any visible damage warrants immediate replacement.

Inspection and Replacement Guidelines:

Always Replace with O-Rings: This is a single-use consumable component. Always replace it with a new one whenever the adjacent O-ring is replaced.
Full Depressurization (Critical): Before any maintenance, place the main electrical disconnect in the OFF position, bleed down all high-pressure lines, and follow lockout/tagout procedures.
Clean Installation: Perform the rebuild in a designated clean area. Thoroughly clean the seal groove and all mating surfaces with a soft, lint-free cloth. Remove all debris, old seal residue, and mineral deposits.
Lubrication: Apply a thin, uniform layer of manufacturer-recommended high-pressure grease to the backup ring and O-ring during installation to prevent pinching, rolling, or tearing during assembly.
Groove Inspection: Inspect the seal groove for nicks, burrs, sharp edges, or damage that could compromise the seal stack.
Replace as a Set: When servicing the high-pressure sealing stack, it is recommended to replace all components (O-rings, backup rings, and dynamic seals) simultaneously using a complete repair kit.
