Product Name: Clamp Nut, IDE III (Part No. 100172-1)

Description:

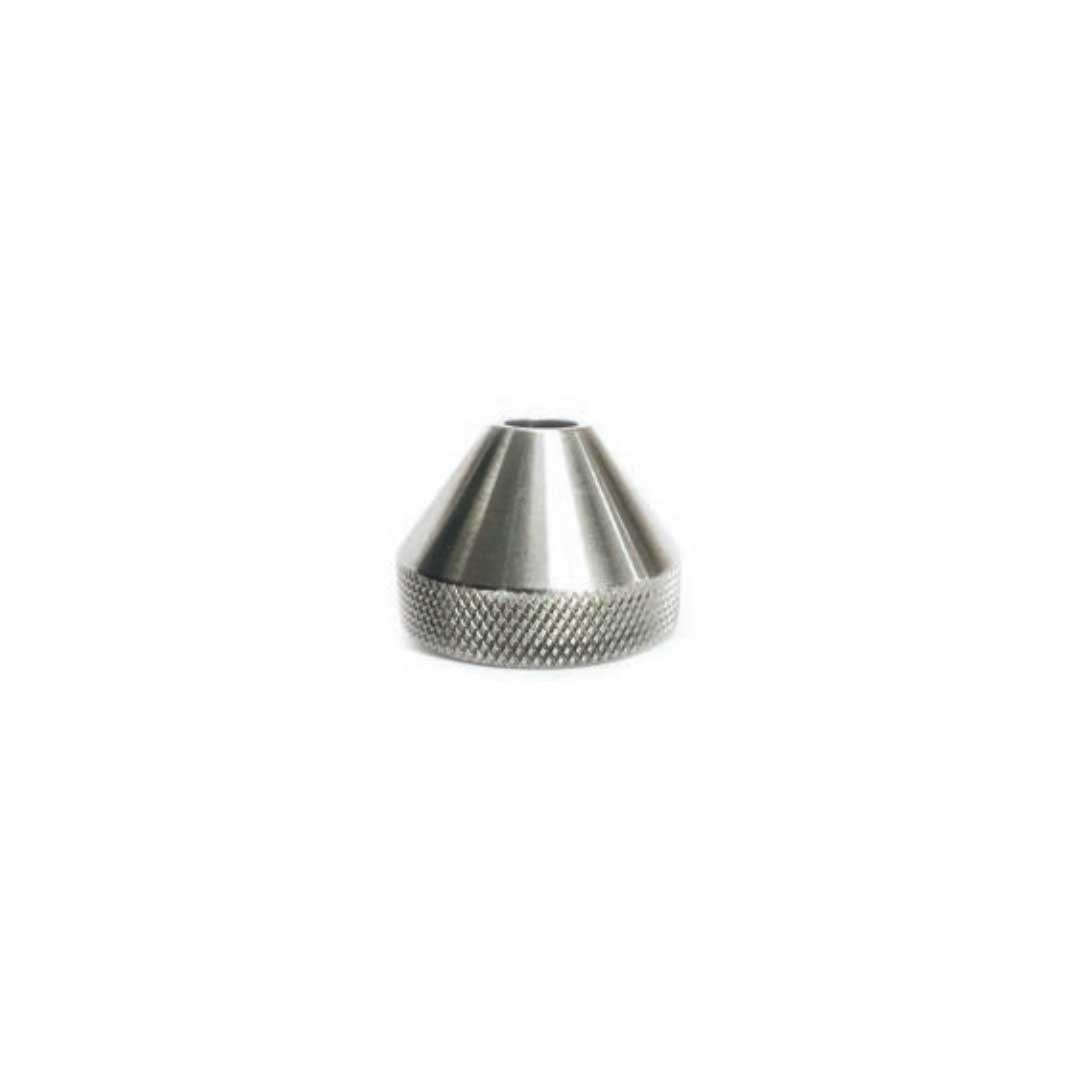

This component is a Clamp Nut, specifically manufactured for the IDE III (Integrated Diamond Eductor) series cutting head . It is a precision-machined fastener constructed from high-strength stainless steel, designed to securely connect the IDE III mixing chamber to the nozzle body of a high-pressure abrasive waterjet system. This component is a critical part of the cutting head assembly, rated for ultra-high pressure operation.

Applications:

• Secures the IDE III mixing chamber assembly to the nozzle body .

• Provides the necessary clamping force to maintain a leak-free, high-pressure seal at the junction of the cutting head components.

• Used on 60k PSI (approx. 4,137 bar) and higher-rated waterjet systems.

• Compatible with standard P-III style nozzle bodies .

Features:

• Stainless Steel Construction: Highly durable and resistant to corrosion in abrasive and high-moisture environments.

• Precision Machining: Manufactured to exact tolerances to ensure a perfect fit and consistent torque application.

• High Clamping Force: Designed to withstand intense system vibration and maintain a secure connection without loosening.

• Non-Wear Component: The clamp nut itself is not a wear part; however, its threads must be kept clean and damage-free for a proper seal.

Maintenance:

• Thread Inspection: Before each reinstallation, meticulously inspect the internal threads for any signs of galling, damage, or cross-threading. Replace the nut immediately if any defects are found.

• Hardware Security: Regularly check that the clamp nut remains tight during the daily leak-checking routine .

• Damage Prevention: If the mixing chamber becomes stuck, apply a small amount of penetrating lubricant to the threads and allow it to soak before attempting removal. Never use a pipe wrench or pliers directly on the nut as this will damage its finish and sealing capability. Always use the correctly sized wrench.

• Torque Compliance: Tighten the clamp nut to the manufacturer's specified torque setting. Hand-tighten initially, then use a torque wrench for the final turn. Over-tightening can damage the cone sealing surfaces and crack the mixing chamber or nozzle body; under-tightening will cause dangerous high-pressure water leaks .

• Lubrication: Apply a thin, even layer of high-performance anti-seize compound (e.g., "Blue Goop" or equivalent) to the threads before reassembly to prevent galling, reduce friction, and ensure accurate torque application .

• Full Depressurization (Critical): Before any maintenance, disassembly, or tightening of the clamp nut, the waterjet system must be fully depressurized . Place the main electrical disconnect in the OFF position and follow all lockout/tagout procedures.
