Port Adapter Assembly 300728

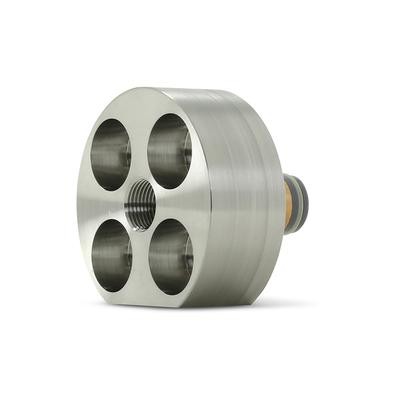

Product Name: Port Adapter Assembly (Part No. 300728)
Description:
The Port Adapter Assembly 300728 is a complete, pre-assembled high-pressure interface unit for waterjet intensifier pumps . It is designed to connect the pump's high-pressure manifold to other critical system components, ensuring a reliable and leak-free fluid pathway under ultra-high pressure (60,000+ PSI). The assembly integrates multiple individual components into a single, ready-to-install unit, which simplifies maintenance and guarantees correct component fitment .
Applications:
Connects the high-pressure manifold to other critical components in waterjet intensifier pumps.
Serves as a pressure interface within the high-pressure water circuit.
Suitable for ultra-high pressure waterjet systems operating at 60,000 PSI and above .
Ideal for installation during pump overhaul and scheduled maintenance.
Features:
Complete Assembly: Comes pre-assembled with all necessary internal components, simplifying installation .
Precision-Machined Housing: The outer housing is CNC-machined from high-grade stainless steel for maximum strength and corrosion resistance .
Pre-Installed Seals: Includes vital static seals and O-rings that are correctly seated within the assembly, reducing assembly errors and potential leak paths .
High-Pressure Rating: All internal components are engineered for continuous operation at 60,000 PSI (4,137 bar) .
Direct OEM Replacement: This pre-assembled design is engineered as a direct replacement, minimizing downtime .
Maintenance:
When to Replace (Failure Diagnosis):
Persistent External Leakage: Water weeping from the adapter body (not the connection threads) indicates a failed internal seal within the assembly .
Pressure Drop: A general loss of system pressure may be traced to a compromised internal flow path in the adapter assembly .
Scheduled Overhaul: It is standard practice to replace complete adapter assemblies during a major pump rebuild to ensure the long-term reliability of the entire high-pressure system .
Installation and Replacement Guidelines:
Full Depressurization (Critical): Before any maintenance, fully depressurize the high-pressure water system and hydraulic system, and follow lockout/tagout procedures .
Drop-in Replacement: Because this is a complete assembly, it is designed for simple removal and replacement, rather than requiring the technician to rebuild individual internal components .
Torque Compliance: When reinstalling, tighten the assembly's retaining nuts to the torque values specified in the equipment service manual .
Thread Preparation: Apply a thin layer of high-pressure thread lubricant to the mating threads before installation to prevent galling .
Replacement Criteria: Replace the entire assembly if the housing is cracked, threads are damaged, or if any internal leakage is detected after the unit has been removed from service .
