Port Adapter 300729

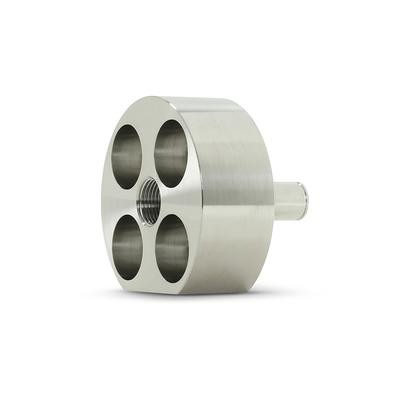

Product Name: Port Adapter (Part No. 300729)
Description:
This component is a high-precision port adapter, specifically designed as a connector for high-pressure components within waterjet intensifier pumps, manifolds, and tubing systems . It is a precision-machined fitting manufactured from premium-grade stainless steel, engineered to provide secure, leak-free connections under extreme operating pressures .
The Port Adapter 300729 is CNC-machined to exact OEM specifications, ensuring perfect fitment and alignment within the high-pressure water circuit . It features precision-threaded ends and polished sealing surfaces, designed to maintain stable water flow and pressure integrity while preventing micro-leaks . The adapter is engineered to withstand continuous pressure cycling up to 60,000 PSI (approximately 4,137 bar) and is fully compatible with major waterjet system configurations . It is commonly used with static seals (P/N 300726) and backup rings (P/N 300727) to ensure consistent and reliable sealing performance .
This port adapter is a direct OEM-equivalent replacement part for intensifier manifolds, inlet/outlet blocks, and high-pressure plumbing assemblies . It is compatible with KMT, FLOW, OMAX, WSI, BFT, and AccuStream waterjet systems .
Applications:
Connects high-pressure components within waterjet intensifier pumps, manifolds, and tubing systems
Provides secure interface between intensifier manifolds and inlet/outlet blocks
Suitable for ultra-high pressure waterjet systems operating at 60,000 PSI and above
Compatible with KMT, FLOW, OMAX, WSI, BFT, and AccuStream waterjet systems
Features:
Premium Stainless Steel Construction: Manufactured from corrosion-resistant stainless steel for exceptional durability
Precision-Machined: CNC-machined to exact OEM specifications for perfect fitment and alignment
High-Pressure Rating: Engineered for continuous operation at 60,000+ PSI (4,100+ bar)
Leak-Free Design: Precision-threaded ends and polished sealing surfaces eliminate micro-leaks
Component Integration: Designed for use with static seal (300726) and backup ring (300727) for reliable sealing
OEM Compatibility: Direct replacement for intensifier manifolds and high-pressure plumbing assemblies
Maintenance:
Inspection Procedures:
Regular Inspection: Check the port adapter for signs of thread wear, galling, corrosion, or surface damage during pump maintenance
Sealing Surface Condition: Inspect precision-polished sealing surfaces for nicks, scratches, or deformation. Any damage will compromise sealing integrity
Thread Condition: Verify threads are clean and free from damage, galling, or cross-threading
Replacement and Installation Guidelines:
Seal Replacement: Always replace the static seal (300726) and backup ring (300727) when reinstalling the port adapter to ensure leak-proof connection
Torque Compliance: Tighten the port adapter to the specific torque value listed in the equipment service manual to avoid damaging the housing or causing leaks
Thread Lubrication: Apply a thin layer of high-pressure thread lubricant or anti-seize compound to threads during reassembly to prevent galling
Full Depressurization: Always fully depressurize the waterjet system and follow lockout/tagout procedures before removing or servicing the port adapter
Replacement Criteria: Replace the port adapter immediately if cracks, thread damage, severe corrosion, or sealing surface damage is detected
Use Proper Tools: Use correctly sized wrenches to avoid damaging the adapter surfaces
Cross-Reference Information:
