Product Name: HP Seal Kit / High Pressure Seal Rebuild Kit (Part No. 20458773)
Description:

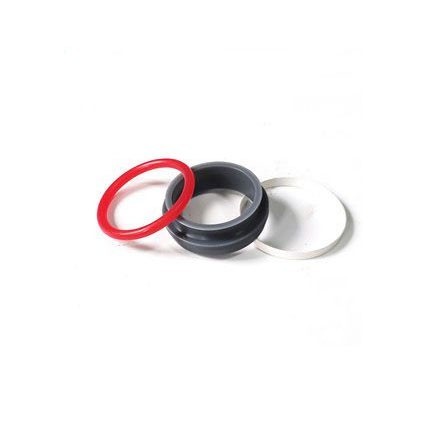

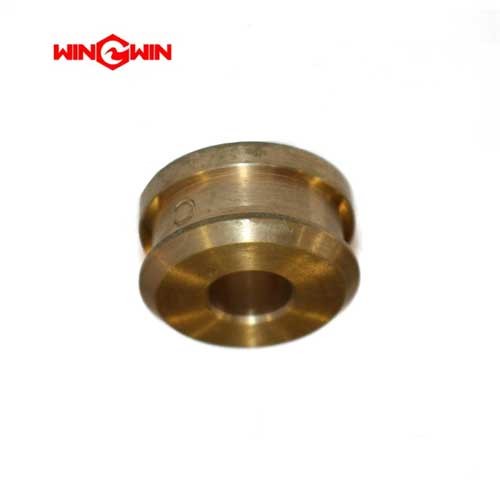

The HP Seal Kit 20458773 is a comprehensive rebuild kit containing the high-pressure dynamic seals and components necessary to service the intensifier pump in a waterjet cutting system. This kit is designed to replace the critical sealing elements that prevent high-pressure water from bypassing the reciprocating plunger within the high-pressure cylinder. It is commonly referred to as a "High Pressure Seal Assembly" and is a required consumable for maintaining pump efficiency and preventing leaks. The kit typically includes multiple sealing components made from a combination of bronze and specialized plastic materials.
Applications:
Rebuilding the high-pressure cylinder assembly in waterjet intensifier pumps
Servicing both sides of the intensifier during scheduled maintenance
Replacing worn seals when water leakage is detected from the cylinder end cap detection hole
Features:
Complete Kit: Contains all necessary components for a full high-pressure seal replacement
Precision-Machined Components: Tight tolerance on internal diameters prevents seal extrusion between the plunger and buttress
Unique Grooved Design: Features grooves on the outside edge for easier gripping and removal during maintenance
Consumable Classification: Recognized as a high-wear component with a typical service life of 3-5 months under normal operating conditions
Cross-Reference Compatibility: Interchangeable with part numbers 302004-1, TL-001001-1, and FW001198-1
Maintenance:
When to Replace (Failure Diagnosis):
Water Leakage from Detection Hole: According to manufacturer documentation, when the detection hole of the cylinder end cover leaks water, the high-pressure seal must be replaced immediately.
Pressure Drop: Inability to maintain rated cutting pressure indicates internal seal wear.
Scheduled Preventive Replacement: Due to the short service life (typically 3-5 months), seals should be replaced on a regular schedule rather than waiting for failure.
Water Contamination in Hydraulic Oil: Milky hydraulic oil indicates water has bypassed the seals.
Installation and Replacement Guidelines:
Special Tools Required: A specific intensifier assembly tool is required to disassemble and reassemble the high-pressure cylinder.
Use the Complete Kit: It is recommended to replace the entire set of seals (all three parts in the kit) rather than individual components.
Inspect Associated Components: Before installing new seals, inspect the high-pressure cylinder bore for wear or damage. If the inner hole is worn or damaged, the cylinder must be repaired or replaced, otherwise new seals will fail quickly.
Plunger Surface Check: Inspect the ceramic plunger for scoring or longitudinal scratches. A damaged plunger must be polished or replaced.
Water Quality Impact: The quality of the water directly affects the service life of the high-pressure water seal. Poor water quality (contaminants, hardness) significantly accelerates seal wear. Customers are advised to replace the water filter element frequently.
Full Depressurization (Critical): Always fully depressurize the waterjet system and follow lockout/tagout procedures before servicing the pump.
Clean Installation: Perform maintenance in a clean area. Clean the cylinder bore thoroughly of water scale, debris, and old seal residue.
