05109087-Autoline-TM-Sapphire-Orifice-0008-0203-mm.962.3-1
Title Translation:
Blade Cutting Equipment Accessory, Name/Code: 05109087-Autoline-TM-Sapphire-Orifice-0008-0203-mm.962.3-1
Introduction:

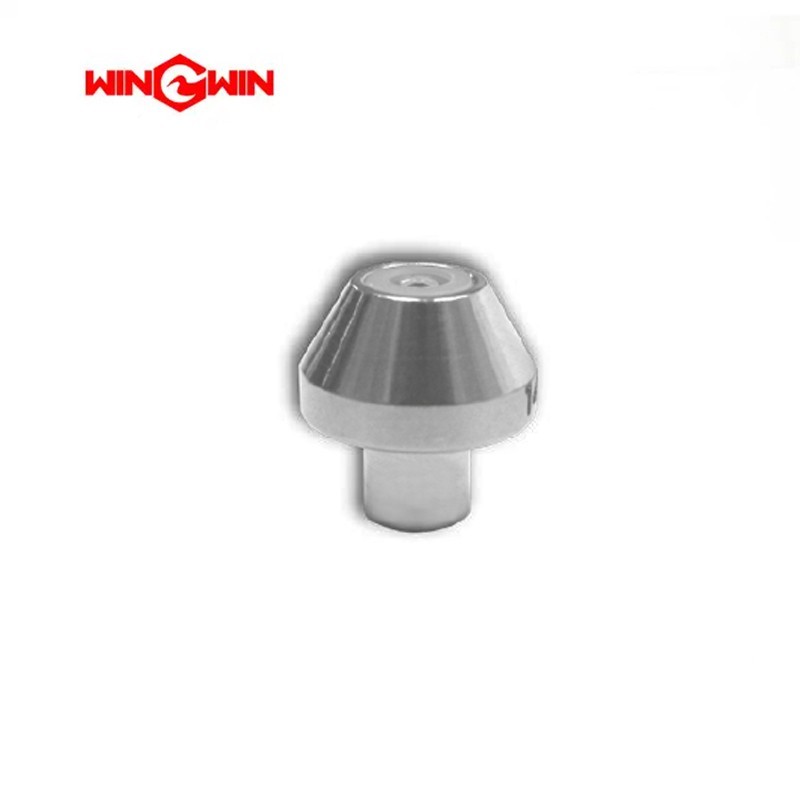

This accessory is a precision sapphire orifice designed for blade cutting equipment. It is used to control the flow of cutting fluids such as coolants or lubricants in automated cutting lines. The sapphire material provides exceptional durability and precision.
Applications:
Used in high-precision blade cutting systems to deliver a consistent and focused fluid jet to the cutting zone. Commonly applied in dicing, slicing, or grooving of hard materials like ceramics, glass, or semiconductors.
Features:
Made from synthetic sapphire for extreme hardness and wear resistance.
High thermal and chemical stability for use with aggressive cutting fluids.
Precise orifice diameter ensures uniform fluid flow and cutting accuracy.
Low friction surface reduces clogging and improves fluid efficiency.
Maintenance:
Regularly inspect for cracks, wear, or blockages under magnification.
Clean using ultrasonic or non-abrasive methods with appropriate solvents.
Do not use metal tools that may scratch or chip the orifice.
Replace immediately if flow pattern becomes irregular or if damage is visible.
Not repairable; replacement part only.
