05045364-Gear-Pump-Hydraulic-Power-Package-Waterjet-Parts.879.3-1

Short Description:

The company is a world-leading manufacturer of high-pressure water jet pumps.
The SL-VI 50HP pump is a highly classic and popular industrial high-pressure pump.
We offer original accessories and professional technical support.

INQUIRY

Details

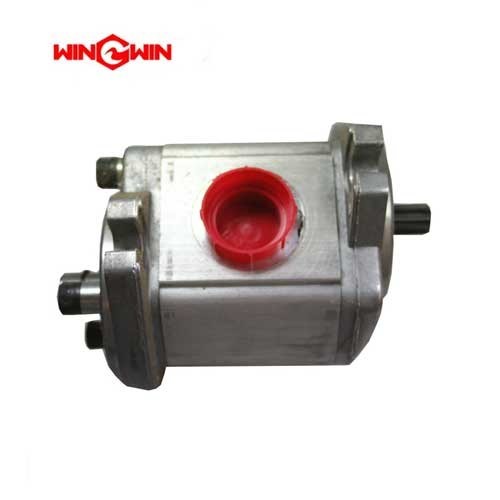

Product Name: Gear Pump (Hydraulic Power Package) – Part No. 05045364

Description:
This component is a gear pump specifically designed for the hydraulic power package (power unit) of a high-pressure waterjet cutting system. It is a positive displacement hydraulic pump responsible for providing the essential flow of pressurized hydraulic fluid needed to drive the main intensifier pump .

The pump operates by using meshing gears to draw in and pressurize hydraulic fluid from the reservoir. It is not the ultra-high pressure component (the intensifier), but rather the core power source for the low-pressure hydraulic circuit. The performance of this gear pump directly affects the operation of the entire waterjet system; if it fails to maintain charge pressure, it will cause erratic intensifier cycling and a loss of cutting pressure .

This specific part number is listed in the official parts diagram for the Hydraulic Power Package (P/N 72154447), where it is designated as Item 1 . It is a direct OEM replacement part.

Applications:

Primary hydraulic fluid mover in the power unit of waterjet cutting systems.
Supplies pressurized oil to drive the high-pressure intensifier pump.
Used in Hydraulic Power Packages for KMT, AccuStream, H2O Jet, and other standard waterjet systems.
Rated for continuous heavy-duty operation in industrial cutting environments.

Features:

Positive Displacement Design: Provides a constant, predictable flow of hydraulic fluid to the intensifier regardless of backpressure.
Durable Construction: Engineered to withstand the high-cycle, high-pressure demands of continuous waterjet operation.
Direct OEM Replacement: Interchangeable with the original manufacturer's part, ensuring a perfect fit and reliable performance.
Critical System Component: The gear pump is essential for building the initial hydraulic pressure required to start the intensifier cycle.

Maintenance:

Failure Diagnosis (When to Inspect/Replace):

Loss of Cutting Pressure: If the intensifier fails to reach operating pressure but the electric motor is running, the gear pump may be worn or damaged .
Excessive Pump Noise: Unusual whining, growling, or rattling sounds from the hydraulic power unit indicate internal wear or cavitation.
Metal Contamination: Discovery of metal particles in the hydraulic fluid or filters is a strong indicator of internal pump failure.
External Leakage: Significant hydraulic oil leakage from the pump shaft seal or the pump body indicates failure.
Erratic Intensifier Cycling: The intensifier pump may cycle irregularly or "overstroke" due to insufficient flow from the gear pump.

Inspection and Replacement Guidelines:

Check Fluid Level First: Before condemning the pump, ensure the hydraulic reservoir is filled to the correct level with clean, recommended hydraulic oil. Low fluid levels starve the pump, causing cavitation and noise.
Suction Strainer Inspection: A clogged suction strainer on the reservoir inlet is a common cause of pump cavitation. Clean or replace the strainer if clogged .
Coupling Alignment: Verify the alignment of the gear pump with the electric motor drive. Misalignment can cause vibration, seal failure, and bearing wear.
Full Depressurization (Critical): Before any maintenance, fully depressurize the hydraulic system, shut down the high-pressure water system, and follow lockout/tagout procedures.
Component Cleanliness: During replacement, maintain absolute cleanliness. Any debris entering the hydraulic system will cause rapid failure of the new pump, valves, and seals.
Torque Compliance: When reinstalling, tighten all mounting bolts and hydraulic line connections to the specific torque values listed in the equipment service manual.
Preventive Maintenance: The hydraulic oil and return line filters should be changed at the manufacturer's recommended intervals (e.g., every 1,000-2,000 hours) to maximize pump life . Contaminated oil is the leading cause of pump wear and premature failure.
