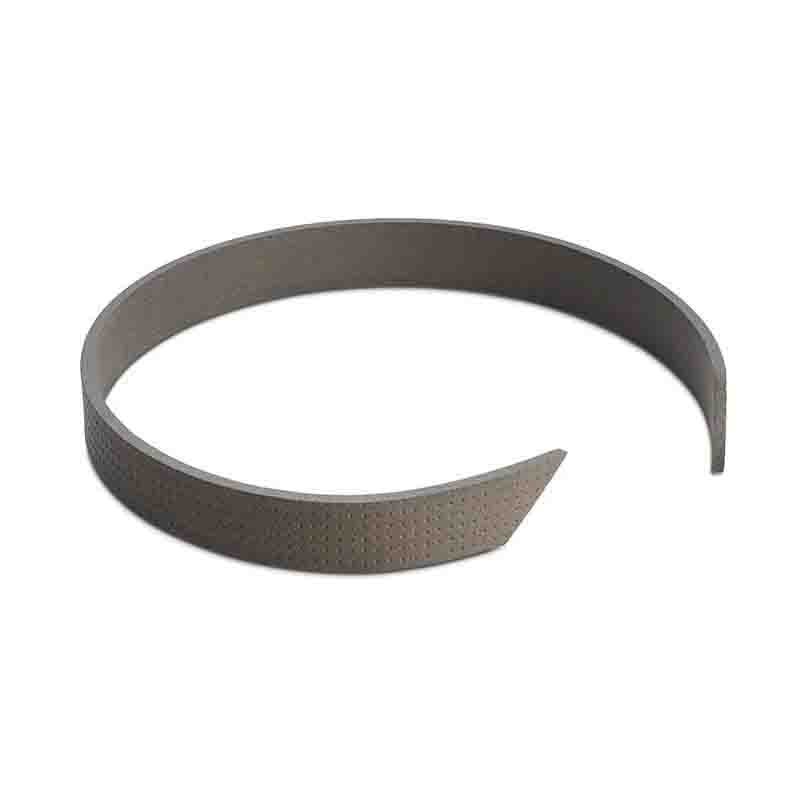

Product Name: Wear Ring / Guide Ring (Part No. XF56/220)

Description:
This component is a precision guide ring, also known as a wear ring or bearing ring, specifically designed for BFT waterjet intensifier pumps. It is a rigid, low-friction component typically manufactured from advanced polymer materials such as PTFE (polytetrafluoroethylene) or reinforced polyamide, often with a bronze or other wear-resistant filler.

According to BFT intensifier parts diagrams, this wear ring is listed as Item 4 in both the CP022001/2 and HT022012/172 assemblies . It is installed in the hydraulic piston assembly, where it works in conjunction with the piston sealing (XK121/220) and piston (CP022031/069) components . Unlike a dynamic seal, the wear ring's primary function is not to contain fluid but to provide radial support and guidance for the reciprocating piston within the hydraulic cylinder bore.

By maintaining precise piston-to-cylinder wall clearance, the wear ring absorbs lateral loads, reduces friction, and prevents metal-to-metal contact between the piston and the cylinder bore during high-pressure operation. This critical function protects the more expensive cylinder and piston components from scoring and wear, while also ensuring smooth piston movement under extreme pressure cycling. The wear ring is classified as a consumable wear component and requires periodic inspection and replacement during scheduled pump maintenance.

Applications:

• Provides radial support and guidance for the hydraulic piston within the cylinder bore

• Absorbs lateral loads to prevent metal-to-metal contact between the piston and cylinder wall

• Reduces friction and heat generation during high-cycle pump operation

• Installed as part of the hydraulic piston assembly alongside piston sealing (XK121/220)

• Used during scheduled preventive maintenance, major pump overhauls, or when piston wear is detected

• Compatible with BFT intensifier assemblies CP022001/2 and HT022012/172

Features:

• Low-Friction Material: Manufactured from PTFE or reinforced polymer for minimal friction and excellent wear resistance

• Precision Dimensions: Machined to exact tolerances for proper fit within the cylinder bore and correct piston alignment

• Critical Guidance Function: Maintains precise piston-to-cylinder clearance, preventing metal-to-metal contact

• Sacrificial Wear Component: Designed to wear preferentially, protecting the more expensive cylinder and piston components

• High-Pressure Rating: Engineered for continuous operation at 60,000-94,000 PSI (approximately 4,137-6,480 bar)

• Direct OEM Replacement: Listed as Item 4 in CP022001/2 parts list and Item 4 in HT022012/172 parts list

Maintenance:

Failure Diagnosis (When to Replace):

• Reduced Cutting Pressure: A worn wear ring can allow the piston to wobble, breaking the oil film seal and causing loss of high pressure

• Excessive Vibration or Noise: Unusual knocking or rattling from the pump area indicates excessive clearance in the piston-to-cylinder fit

• Premature Seal Failure: Frequent failure of piston seals often suggests a worn wear ring allowing too much piston deflection

• Visible Damage During Disassembly: Inspect the wear ring for scoring, galling, cracking, uneven wear, or loss of thickness

• Metal Particles in Hydraulic Oil: Metallic debris in the oil or filters may indicate that the wear ring has failed and allowed metal-to-metal contact

• Scheduled Preventive Maintenance: Standard practice to inspect and replace wear rings during major pump overhauls or when the piston assembly is serviced

Inspection and Replacement Guidelines:

• Full Depressurization (Critical): Before any maintenance, fully depressurize the waterjet system (high-pressure water, hydraulic system, and air supply) and follow lockout/tagout procedures

• Disassembly: Remove the hydraulic piston assembly from the cylinder bore to access the wear ring

• Clean Installation: Perform the rebuild in a designated clean area. Thoroughly clean the piston, cylinder bore, and all mating surfaces with a soft, lint-free cloth

• Dimensional Inspection: Measure the wear ring thickness and piston outside diameter using precision measuring tools. Compare to manufacturer specifications to detect wear

• Cylinder Bore Inspection: When replacing the wear ring, inspect the hydraulic cylinder bore for scoring, pitting, or out-of-round wear. A damaged cylinder will rapidly wear out new rings

• Lubrication: Apply a thin, uniform layer of manufacturer-recommended high-pressure grease or clean hydraulic oil to the wear ring and cylinder bore during assembly

• Installation: Slide the new wear ring onto the piston assembly. Use a ring compressor to properly size the ring so it fits into the cylinder bore

• Replace as a Set: When servicing the hydraulic piston assembly, replace all wear rings and seals simultaneously using a complete repair kit

• Torque Compliance: When reinstalling the piston assembly and end bells, tighten tie rod nuts to the torque values specified in the equipment service manual

• Storage: Store spare wear rings in a clean, dry environment to prevent surface damage before use

Cross-Reference Information:

• BFT #: XF56/220

• Also known as: Wear Ring, Guide Ring, Piston Wear Ring, Bearing Ring

• Item 4 in Intensifier Assembly CP022001/2

• Item 4 in Intensifier Assembly HT022012/172

• Works with: Piston Sealing (XK121/220), Piston (CP022031/069), Cylinder (CP022002/190)

• Rated Pressure: 60,000-94,000 PSI (4,137-6,480 bar)
