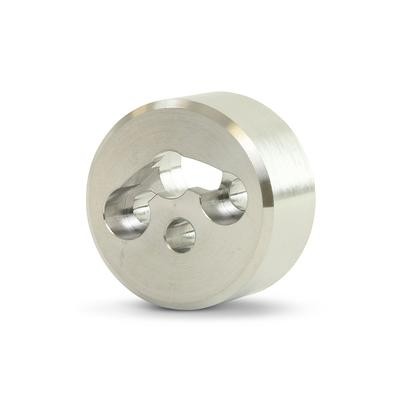

Product Name: Check Valve Retainer, Manifold-side / Outlet Check Valve Retainer (Part No. 301873)

Description:
This component is a manifold-side check valve retainer, also known as an outlet check valve retainer, specifically designed for the check valve assembly in high-pressure waterjet cutting systems . It is a precision-machined retaining component that secures the internal sealing elements—including the check valve ball, seat, spring, and seals—within the check valve body on the manifold side of the assembly. The retainer is typically manufactured from high-strength, corrosion-resistant stainless steel and features a unique design with a central cavity to receive the valve element and multiple surrounding flow passages that conduct high-pressure fluid through the retainer when the valve is open . This component is critical for maintaining proper alignment and preload of the sealing stack, ensuring leak-free, one-way flow control. It is rated for continuous operation at 60,000–94,000 PSI (approximately 4,137–6,480 bar) and is compatible with OMAX , AccuStream, and other standard waterjet intensifier systems .

Applications:

• Retains internal check valve components (ceramic ball, seat, spring, seals) within the manifold-side of the check valve assembly

• Provides a secure interface between the check valve body and the outlet manifold of the waterjet intensifier pump

• Conducts high-pressure fluid through multiple flow passages surrounding the central retainer cavity when the valve ball is displaced open

• Suitable for ultra-high pressure waterjet systems operating at 60,000 PSI and above

• Compatible with OMAX, AccuStream, and other standard waterjet intensifier systems

Features:

• High-Strength Stainless Steel Construction: Provides excellent corrosion resistance and structural integrity under extreme pressure cycling

• Specialized Flow Design: Features a retainer cavity for receiving the valve ball and multiple (typically four) surrounding flow passages that conduct high-pressure fluid through the retainer when the valve is open

• Annular Bearing Surface: Includes a precision-machined annular bearing surface on the first end that forms a substantially liquid-tight seal against the seat plate without requiring lapped or specially finished surfaces

• Precision-Machined Threads: Ensures smooth engagement with the check valve body and accurate torque application for proper seal compression

• OEM Compatibility: Direct replacement part for OMAX #301873, AccuStream, and other standard check valve assemblies

• Outlet Side Design: Specifically configured for the manifold-side (outlet) of the check valve assembly, as opposed to the inlet/cylinder-side retainer

Maintenance:

Failure Diagnosis:

• External Water Leakage: Visible water weeping from the manifold-side connection indicates the retainer may be loose or the sealing stack is compromised

• Pressure Drop: Inability to maintain rated cutting pressure may indicate the retainer is not properly securing the check valve ball and seat

• Thread Damage: Stripped, galling, or cross-threaded threads prevent proper tightening and sealing

• Difficulty Tightening: If the retainer requires excessive force or feels gritty during threading, threads may be damaged

• Visible Cracks or Deformation: Any cracking or distortion of the retainer warrants immediate replacement

Inspection and Replacement Procedures:

• Regular Inspection: Periodically inspect the retainer for signs of thread wear, galling, or surface damage during pump maintenance

• Flow Passage Check: Inspect the surrounding flow passages for any debris or blockage that could restrict fluid flow

• Thread Care: Before reassembly, carefully inspect threads for wear, corrosion, or damage. Clean threads thoroughly with a soft brush

• Torque Compliance: Tighten the retainer to the specific torque value listed in the equipment service manual to ensure proper seal compression without damaging threads

• Thread Lubrication: Apply a thin layer of high-pressure thread lubricant or anti-seize compound to threads during reassembly to prevent galling

• Replace if Damaged: Replace the retainer immediately if threads are damaged, cracks are visible, or the retainer shows signs of deformation

• Full Depressurization: Always fully depressurize the waterjet system and follow lockout/tagout procedures before loosening or removing the retainer

• Use Proper Tools: Use the correctly sized wrench on the retainer's wrench flats. Do not use pipe wrenches or pliers that could damage the surfaces

• Seal Replacement: When reinstalling, always replace associated O-rings and seals to ensure leak-free operation

• Component Note: This retainer works in conjunction with the check valve body (303251), ceramic ball (200904), and valve seat (300640) as part of the complete manifold-side check valve assembly
