IP016008527-Bearing-Bush.2005.3-1

Short Description:

Used for BFT/BHDT pump.
We enable precise cutting and protect your efficient production.
With genuine BFT parts, your waterjet system always runs like new.
1. Performance revitalized, costs halved.
2. Choose BFT, choose reliability.

INQUIRY

Details

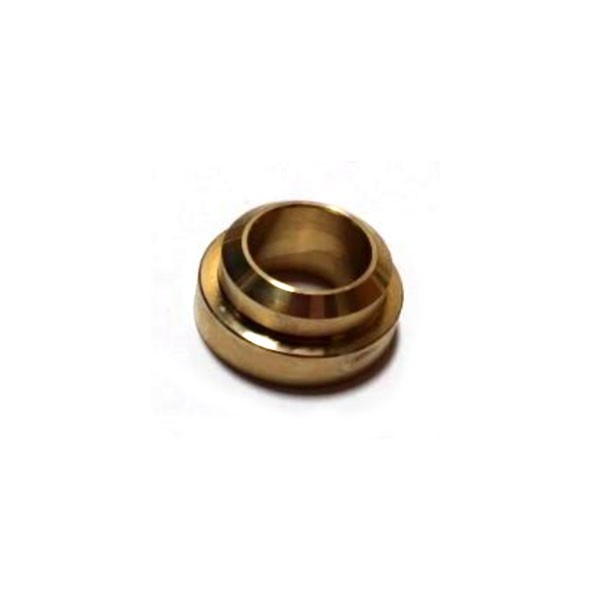

Product Name: IP016008527 Bearing Bush / Support Bushing

Description:
This component is a precision bearing bush (also referred to as a support bushing or guide sleeve) specifically designed for the high-pressure intensifier pump in waterjet cutting systems. It is manufactured from high-strength, wear-resistant material such as bronze or hardened steel. Its primary function is to provide a low-friction bearing surface that guides the reciprocating plunger or piston rod, ensuring precise axial alignment and smooth linear motion under extreme pressure cycling.

Applications:

Provides radial support and alignment for the reciprocating plunger or piston rod in waterjet intensifier pumps.
Maintains critical coaxial alignment between the plunger and the high-pressure cylinder bore.
Used during scheduled preventive maintenance, major pump overhauls, or when alignment issues or excessive wear are detected.
Suitable for ultra-high pressure waterjet systems operating at 60,000-94,000 PSI (approx. 4,137-6,480 bar).

Features:

Wear-Resistant Material: Constructed from high-grade bronze or hardened steel for exceptional durability under continuous reciprocating motion.
Precision-Machined Tolerances: Manufactured to exacting specifications for a perfect fit within the cylinder bore and correct alignment of the plunger.
Low-Friction Surface: Provides a smooth bearing surface that minimizes friction and heat generation during high-cycle operation.
Critical Alignment Component: Directly responsible for maintaining plunger concentricity, which is vital for seal life and pressure stability.
Semi-Wear Component: Subject to mechanical wear over thousands of hours but is more durable than elastomeric seals.
Direct OEM Replacement: Interchangeable with BHDT part number IP016008527.

Maintenance:

When to Inspect or Replace:

Reduced Cutting Pressure: A worn bush allows the plunger to wobble, breaking the oil film seal and causing a loss of high pressure.
Excessive Vibration or Noise: Unusual knocking or rattling from the pump area indicates excessive clearance in the bearing or plunger assembly.
Premature Seal Failure: Frequent seal failures (e.g., U-cup, backup rings) often suggest the bearing bush is allowing too much plunger deflection.
Visible Damage During Disassembly: During major pump overhauls, inspect the inner surface for scoring, galling, flaking, or ovality.
Scheduled Preventive Maintenance: Inspect the bearing bush during major pump overhauls (typically every 4,500-5,000 operating hours) and replace it if any wear is detected.

Inspection and Replacement Guidelines:

Full Depressurization (Critical): Before any maintenance, fully depressurize the waterjet system and follow lockout/tagout procedures.
Disassembly: Remove the high-pressure cylinder and plunger assembly to access the bearing bush inside the cylinder bore.
Dimensional Measurement: Measure the inside diameter of the bush; if it exceeds the manufacturer's specified limit for plunger clearance, it must be replaced.
Replace as a Set: It is often advisable to inspect the plunger simultaneously. A worn plunger will rapidly wear out a new bush.
Lubrication: Apply a thin, uniform layer of manufacturer-recommended high-pressure grease during installation.
Torque Compliance: Ensure the cylinder end cap is torqued to the specification in the service manual; improper torque can distort the cylinder bore and pinch the bearing bush.
