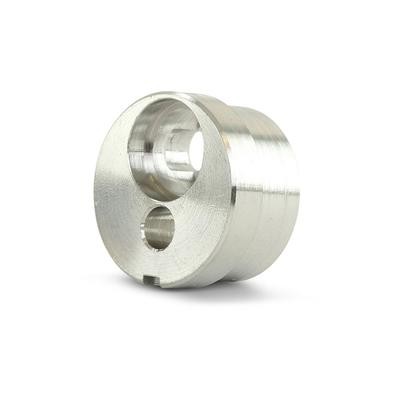

Product Name: Check Valve Retainer, Cylinder-side / Inlet Check Valve Retainer (Part No. 303252)

Description:
This component is a cylinder-side check valve retainer, also known as an inlet check valve retainer, specifically designed for the check valve assembly in high-pressure waterjet cutting systems . It is a precision-machined retaining component that secures the internal sealing elements—including the ceramic ball, valve seat, spring, and seals—within the check valve body on the side that connects directly to the high-pressure cylinder. The retainer is typically manufactured from high-strength, corrosion-resistant stainless steel and is engineered to withstand extreme pressure cycling (60,000–94,000 PSI). This component is critical for maintaining proper alignment and preload of the sealing stack, ensuring leak-free, one-way flow control.

Applications:

• Retains internal check valve components (ceramic ball, seat, spring, seals) within the cylinder-side (inlet side) of the check valve assembly

• Provides a secure interface between the check valve body and the high-pressure cylinder

• Suitable for ultra-high pressure waterjet systems operating at 60,000 PSI and above

• Compatible with OMAX, AccuStream, and other standard waterjet intensifier systems

Features:

• High-Strength Stainless Steel Construction: Provides excellent corrosion resistance and structural integrity under extreme pressure cycling

• Precision-Machined Threads: Ensures smooth engagement with the check valve body and accurate torque application for proper seal compression

• Cylinder-Side Design: Specifically configured for the inlet interface between the check valve assembly and the high-pressure cylinder

• OEM Compatibility: Direct replacement part with OEM number 303252; also cross-referenced under part number VP9112 in aftermarket catalogs

• Critical Retaining Function: Secures the internal sealing stack, maintaining proper preload for leak-free check valve operation

Maintenance:

Failure Diagnosis:

• External Water Leakage: Visible water weeping from the cylinder-side connection indicates the retainer may be loose or the sealing stack is compromised

• Pressure Drop: Inability to maintain rated cutting pressure may indicate the retainer is not properly securing the check valve ball and seat

• Thread Damage: Stripped, galling, or cross-threaded threads prevent proper tightening and sealing

• Difficulty Tightening: If the retainer requires excessive force or feels gritty during threading, threads may be damaged

• Visible Cracks or Deformation: Any cracking or distortion of the retainer warrants immediate replacement

Inspection and Replacement Procedures:

• Regular Inspection: Periodically inspect the retainer for signs of thread wear, galling, or surface damage during pump maintenance

• Thread Care: Before reassembly, carefully inspect threads for wear, corrosion, or damage. Clean threads thoroughly with a soft brush

• Torque Compliance: Tighten the retainer to the specific torque value listed in the equipment service manual to ensure proper seal compression without damaging threads

• Thread Lubrication: Apply a thin layer of high-pressure thread lubricant or anti-seize compound to threads during reassembly to prevent galling

• Replace if Damaged: Replace the retainer immediately if threads are damaged, cracks are visible, or the retainer shows signs of deformation

• Full Depressurization: Always fully depressurize the waterjet system and follow lockout/tagout procedures before loosening or removing the retainer

• Use Proper Tools: Use the correctly sized wrench on the retainer's wrench flats. Do not use pipe wrenches or pliers that could damage the surfaces

• Seal Replacement: When reinstalling, always replace associated O-rings and seals to ensure leak-free operation

• Component Note: This retainer works in conjunction with the check valve body, ceramic ball (200904), and valve seat as part of the complete cylinder-side (inlet) check valve assembly
