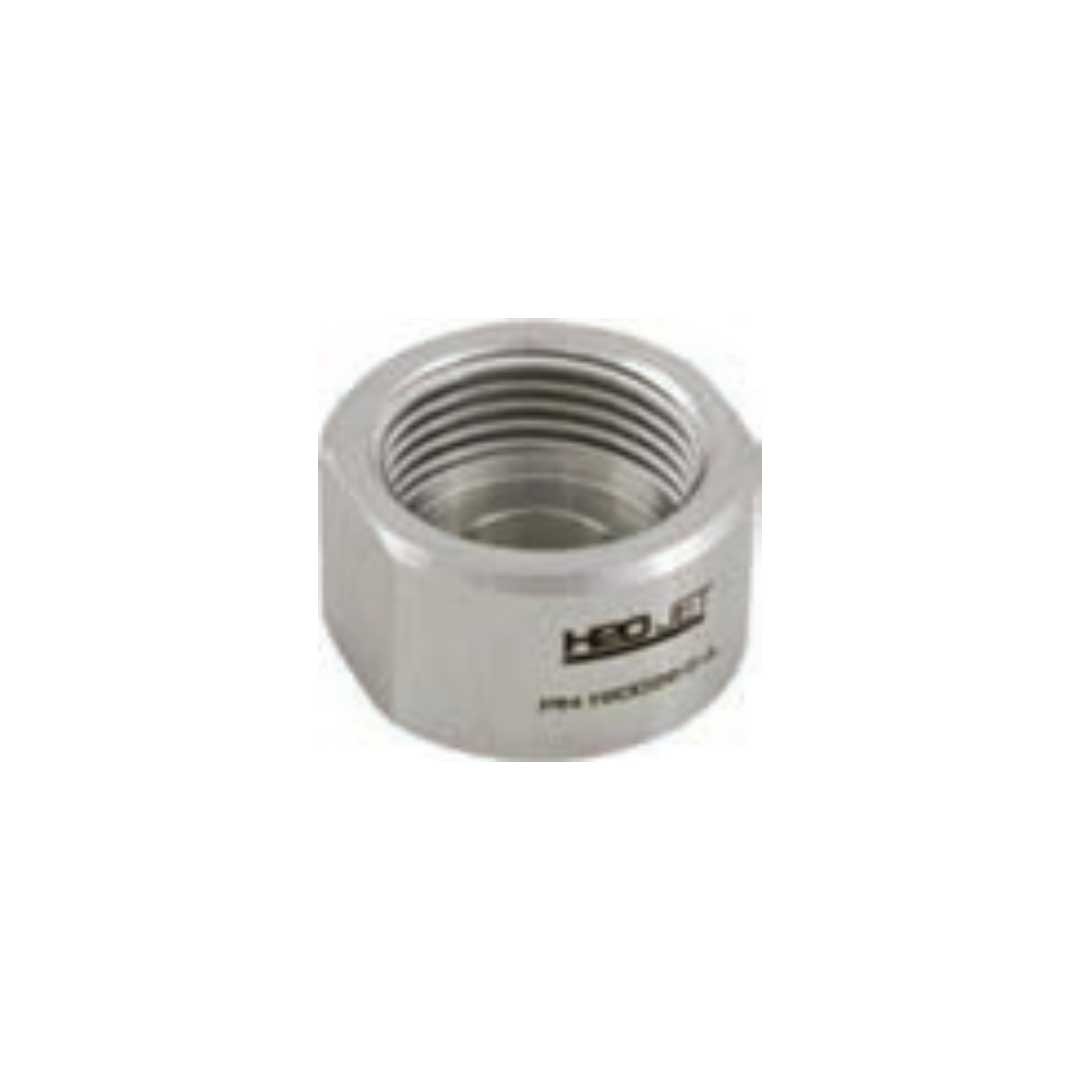

Product Name: Advantage EP Gland Nut (Nozzle Body to Mini Valve) – Part No. 190026-3

Description:
This component is a high-strength gland nut (also referred to as a retaining nut or coupling nut) specifically engineered for the Advantage EP series waterjet cutting system. It is designed to secure the connection between the nozzle body and the mini valve assembly, creating the mechanical clamping force required for a leak-tight, metal-to-metal high-pressure seal. Manufactured from hardened stainless steel, it is rated for extreme pressure operation up to 94,000 PSI (approximately 6,480 bar) and provides the necessary compression to secure internal sealing elements and O-rings, preventing high-pressure water leaks and maintaining system integrity.

Applications:

• Secures the nozzle body to the mini valve assembly on Advantage EP waterjet cutting heads

• Provides the clamping force for high-pressure sealing between cutting head components

• Works in conjunction with the EP Collar and other sealing components to form a leak-tight assembly

• Suitable for 94,000 PSI (6,480 bar) ultra-high pressure waterjet systems

Features:

• Extreme Pressure Rating: Engineered for continuous operation at 94,000 PSI / 6,480 bar

• Stainless Steel Construction: Provides excellent corrosion resistance and structural integrity in waterjet environments

• Precision-Machined Threads: Ensures smooth engagement with mating components for consistent clamping force

• Vibration Resistance: Designed to maintain secure connections under high-frequency pressure cycling

• Leak-Free Sealing: Essential for maintaining system pressure integrity at the nozzle body to mini valve interface

• Direct OEM Replacement: Interchangeable with H2O Jet #190026-3 and WE000198

Maintenance:

Failure Diagnosis (When to Inspect/Replace):

• External Water Leakage: High-pressure water weeping from the connection area indicates the gland nut may be loose, threads are damaged, or sealing surfaces are compromised

• Thread Damage: Stripped, galled, or cross-threaded threads prevent proper tightening and will cause high-pressure leaks

• Visible Cracks or Deformation: Any cracking or distortion of the stainless steel body warrants immediate replacement

• Difficulty Tightening: If the gland nut feels gritty or binds during threading, threads may be damaged

• Hardware Security: If the connection becomes loose during operation due to vibration, inspect threads for wear and replace if necessary

Installation and Inspection Guidelines:

• Full Depressurization (Critical): Before any maintenance, place the main electrical disconnect in the OFF position, bleed down all high-pressure lines, and observe Lockout/Tagout procedures. Severe injury can result if the machine is not properly locked out

• Immediate Leak Repair: All high-pressure leaks must be repaired immediately. If leakage occurs at a sealing surface, high-pressure water is released through weep holes

• Two-Wrench Method: Use two appropriately sized wrenches (one to counter-hold the component, one to turn the gland nut) to avoid twisting stress on the assembly

• Thread Inspection: Before reassembly, carefully inspect threads for wear, galling, corrosion, or damage. Clean threads thoroughly

• Thread Lubrication: Apply a thin, even layer of high-pressure anti-seize lubricant to the threads during reassembly to prevent galling and ensure accurate torque application

• Torque Compliance: Tighten the gland nut to the specific torque value listed in the equipment service manual (e.g., 50 ft-lbs / 68 Nm for 3/8" HP connections). Over-tightening can damage threads; under-tightening will cause high-pressure leaks

• Clean Installation: Perform assembly in a clean area. Thoroughly clean all mating surfaces and threads with a soft cloth and compatible solvent before installation

• Replace if Damaged: Replace the gland nut immediately if threads are damaged, cracks are visible, the nut shows signs of deformation, or persistent leakage occurs despite correct installation

• Seal Replacement: When reinstalling the gland nut, always replace the associated O-rings, backup rings, and seal assemblies to ensure leak-free operation

• Cross-Reference Information: Interchangeable with H2O Jet #190026-3 and WE000198
