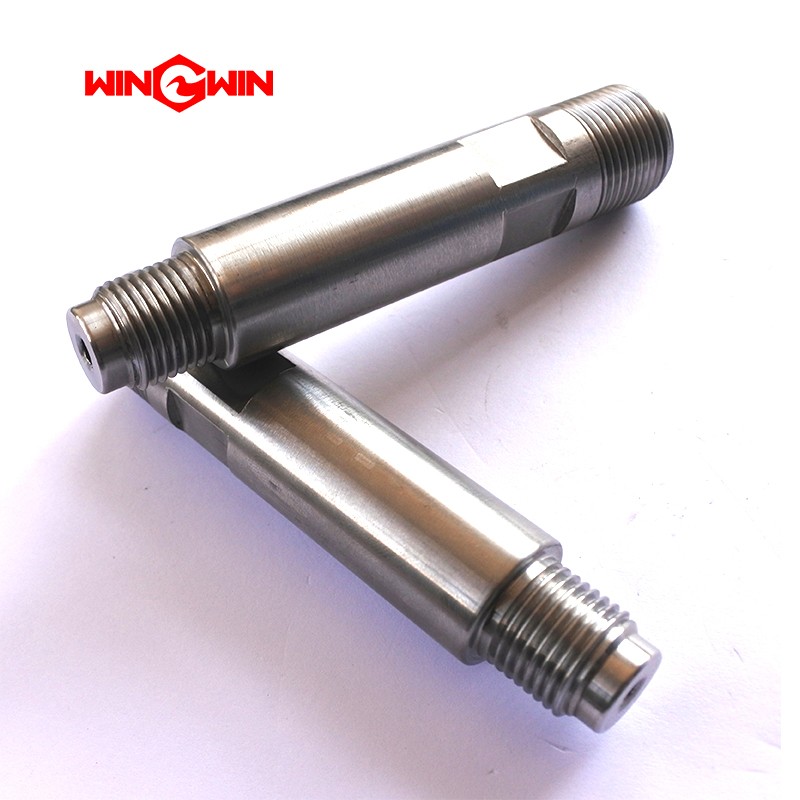

Product Name: Nozzle Body (Cutting Head Component)

Description:
This component is the nozzle body, a core structural component of the waterjet cutting head assembly . It serves as the main housing that integrates and positions critical cutting head elements including the water orifice (sapphire nozzle), mixing chamber, abrasive inlet, and focusing tube (mixing tube) . The nozzle body provides precise alignment between these components to ensure a coherent, high-velocity cutting jet .

The nozzle body is typically manufactured from hardened stainless steel or wear-resistant alloy to withstand the erosive effects of high-pressure water and abrasive particles. It is rated for continuous operation at ultra-high pressures up to 60,000 PSI (approximately 413 MPa) . The APW nozzle body is identified by BOM code 06S-02-07 and has an expected service life of approximately 1000 operating hours under normal conditions .

Applications:

• Used as the main housing in abrasive waterjet cutting head assemblies

• Supports both pure water cutting and abrasive waterjet configurations

• Provides structural mounting for the water orifice, mixing chamber, and focusing tube

• Suitable for ultra-high pressure waterjet systems operating at 60,000 PSI (approximately 4,137 bar / 413 MPa)

• Compatible with APW series cutting heads and standard 3-axis and 5-axis configurations

Features:

• Precision-Machined Construction: Manufactured to exacting tolerances for perfect coaxial alignment between the water orifice and focusing tube, which is critical for jet coherence and cutting accuracy

• High-Strength Material: Constructed from hardened stainless steel or wear-resistant alloy to withstand high-velocity water flow and abrasive erosion

• Integrated Design: Houses multiple internal components including the mixing chamber, abrasive inlet port, and seal interfaces in a single unit

• Venturi Effect Compatibility: Internal geometry designed to create vacuum for abrasive suction through the side inlet port

• 60,000 PSI Pressure Rating: Engineered for continuous operation at ultra-high pressure

• Long Service Life: Expected service life of approximately 1000 operating hours before replacement is typically required

Maintenance:

• Service Life Expectancy: The nozzle body typically requires replacement after approximately 1000 hours of operation . This is significantly longer than other consumable components such as seals, needles, poppet seats, and O-rings which require replacement every 200-500 hours

• Erosion Inspection: Regularly inspect the internal bore and mixing chamber for signs of erosion, wear grooves, or diameter enlargement caused by abrasive particles . Excessive wear will degrade mixing efficiency and cut quality

• Alignment Verification: During reassembly, ensure that the water orifice, mixing chamber, and focusing tube are perfectly coaxial. Misalignment leads to rapid focusing tube wear and poor cut quality

• Seal Replacement: Always replace associated O-rings and high-pressure seals when servicing the nozzle body to prevent high-pressure water leaks

• Debris Cleaning: During cutting head maintenance, thoroughly clean internal passages to remove any compacted abrasive debris or residual particles that could cause blockages

• Orifice-to-Tube Ratio: For optimal performance, maintain a proper diameter ratio between the water orifice and focusing tube as specified in the machine parameters

• Nozzle Diameter Selection: The appropriate nozzle diameter (e.g., 0.25mm, 0.30mm, 0.33mm, 0.36mm, or 0.57mm) depends on the specific pump model and cutting requirements

• Full Depressurization: Always fully depressurize the waterjet system and follow lockout/tagout procedures before disassembling or servicing the nozzle body

• Replacement Criteria: Replace the nozzle body if internal bore erosion exceeds manufacturer-specified limits, if cracks are detected, or if sealing surfaces are compromised

• Quality Assurance: APW nozzle bodies are manufactured under quality control procedures following PDCA continuous improvement processes to ensure safety, efficiency, and stability

• Compatibility Check: When replacing a nozzle body, verify compatibility with the specific cutting head model and pump specifications

•
