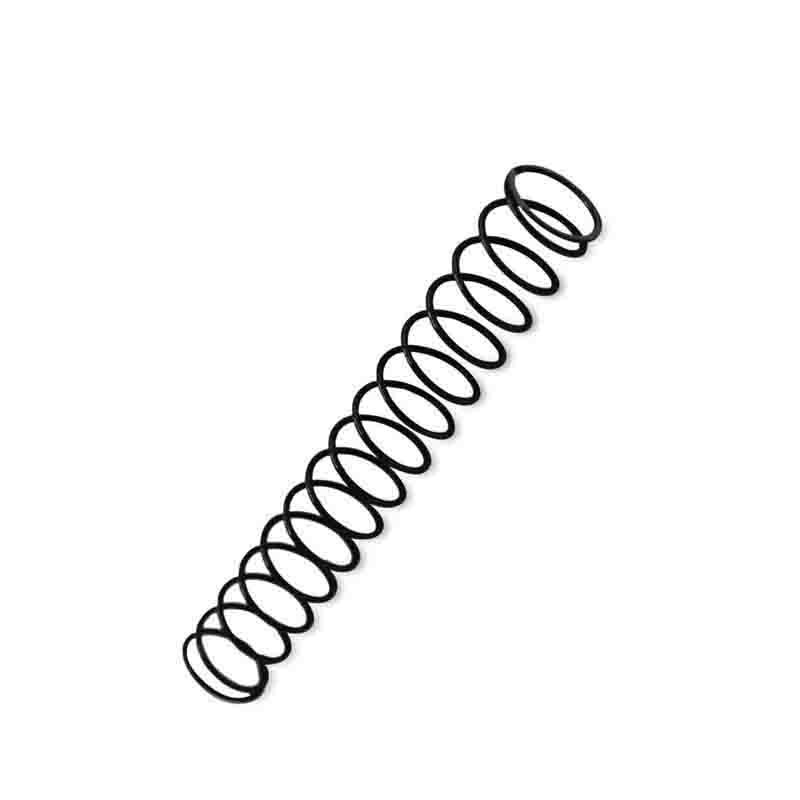

Product Name: Helical Spring / Compression Spring (Part No. CP020034/255)

Description:
The Helical Spring CP020034/255 is a precision-wound compression spring specifically designed for the intensifier pump of BFT waterjet cutting systems . According to BFT parts diagrams for intensifier assemblies CP022001/2 and HT022012/172, this helical spring is listed as a standard component within the hydraulic control section of the intensifier pump .

The spring works in conjunction with another helical spring (CP020033/255) to provide balanced compressive force for proper valve operation, seal support, and directional control within the intensifier assembly . The designation "255" in the part number refers to the spring's specific dimensional and load characteristics as per BFT OEM specifications.

This component is manufactured from high-grade spring steel or stainless steel to withstand the extreme vibration, temperature fluctuations, and continuous pressure cycling inherent in ultra-high pressure waterjet systems operating at 60,000-94,000 PSI (approximately 4,137-6,480 bar). It plays a vital role in maintaining consistent hydraulic pressure and ensuring smooth reciprocating motion of the intensifier piston and precise valve timing.

Applications:

• Provides compressive force in the hydraulic control section of BFT waterjet intensifier pumps

• Works in conjunction with CP020033/255 helical spring for balanced spring force and precise valve timing

• Supports valve operation, seal seating, and directional control within the intensifier assembly

• Used during scheduled preventive maintenance, major pump overhauls, or when spring fatigue is detected

• Compatible with BFT intensifier assemblies CP022001/2 and HT022012/172

Features:

• High-Grade Spring Material: Manufactured from durable spring steel or stainless steel for long-term fatigue life under cyclic loading

• Precision-Wound Design: Manufactured to exact tolerances to ensure consistent spring force and reliable operation under high cycle rates

• Critical Timing Component: Works with CP020033/255 to affect precise operation of intensifier's hydraulic control and shift timing

• Lightweight: Approximately 0.001 kg (1 gram) for easy handling during maintenance

• Cross-Reference Compatibility: Listed as Item 21 in CP022001/2 parts list and Item 20 in HT022012/172 parts list

Maintenance:

When to Replace (Failure Diagnosis):

• Erratic Intensifier Shifting: If the intensifier fails to shift direction properly, cycles irregularly, or exhibits inconsistent timing, a fatigued or broken spring may be the cause

• Pressure Fluctuations: Inability to maintain stable cutting pressure or pressure oscillations may indicate spring fatigue

• Valve Malfunctions: Slow or incomplete valve actuation can result from a compression spring that has lost its elasticity

• External Leakage: Worn springs can lead to incomplete valve seating, resulting in high-pressure water leaks

• Visible Damage During Disassembly: When the intensifier is opened for maintenance, inspect the spring for signs of permanent deformation (shortening), cracking, or corrosion. Compare its free length to manufacturer specifications

• Scheduled Preventive Maintenance: This is a high-cycle wear component. It should be replaced during major pump overhauls (typically based on operating hours) or immediately if the intensifier exhibits erratic shifting behavior

Inspection and Replacement Guidelines:

• Always Replace Worn Springs: A compression spring that has lost tension or shows signs of fatigue cannot be restored and must be replaced

• Full Depressurization (Critical): Before any maintenance, place the main electrical disconnect in the OFF position, bleed down all high-pressure lines, and follow lockout/tagout procedures

• Clean Installation: Ensure the spring cavity is clean and free of debris before inserting the new spring

• Replace as Part of Complete Set: When servicing the hydraulic control section, it is recommended to inspect and potentially replace both helical springs (CP020033/255 and CP020034/255) simultaneously to ensure balanced performance

• Torque Compliance: When reassembling the intensifier, tighten all retaining components to the torque values specified in the equipment service manual

• Cross-Reference Information: This helical spring is listed as Item 21 in BFT intensifier CP022001/2 parts list and Item 20 in HT022012/172 parts list
