Product Name: Helical Spring / Compression Spring (Part No. CP020033/255)

Description:

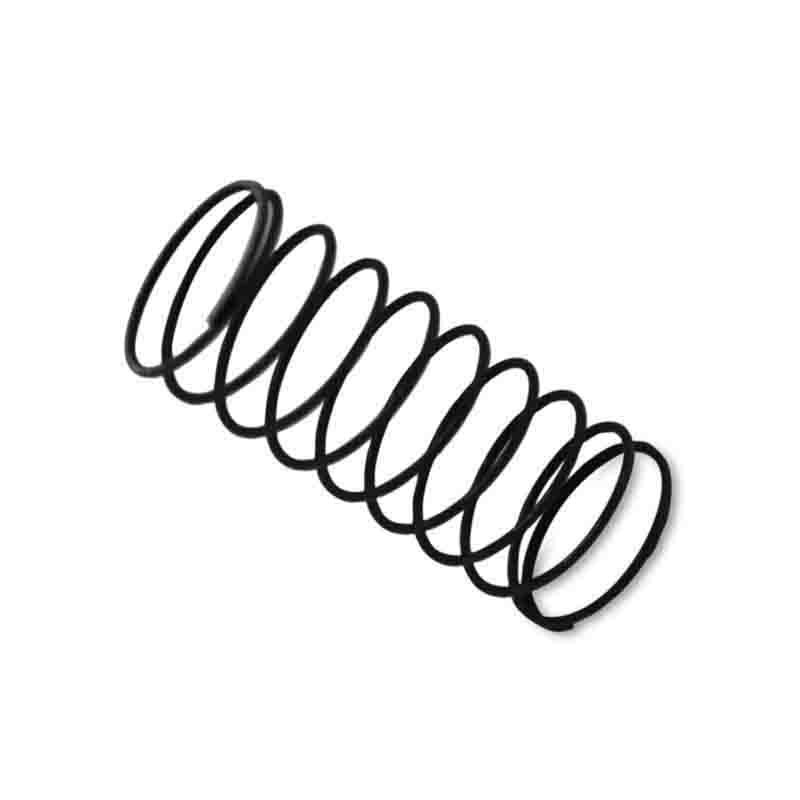

The Helical Spring CP020033/255 is a precision-wound compression spring specifically designed for BFT waterjet intensifier pumps . This component is a critical internal part used in the hydraulic control section of the intensifier pump, where it provides a consistent compressive force to ensure proper valve operation, seal support, and directional control .

Manufactured from high-grade stainless steel, this spring is engineered to withstand the extreme vibration, temperature fluctuations, and continuous pressure cycling inherent in ultra-high pressure waterjet systems operating up to 60,000-94,000 PSI (approximately 4,137-6,480 bar) . According to BFT parts diagrams for intensifier assemblies CP022001/2 and HT022012/172, the helical spring CP020033/255 is listed as Item 18 and works in conjunction with components such as the CP020034/255 helical spring, piston, bushing, and supporting ring .

This spring plays a vital role in maintaining consistent hydraulic pressure and ensuring smooth reciprocating motion of the intensifier piston. It is typically installed in the hydraulic control section alongside complementary springs (such as CP020034/255) to provide balanced spring force for precise valve timing and shift control .

Applications:

• Provides compressive force in the hydraulic control section of BFT waterjet intensifier pumps

• Supports valve operation, seal seating, and directional control within the intensifier assembly

• Used during scheduled preventive maintenance, major pump overhauls, or when spring fatigue is detected

• Suitable for ultra-high pressure waterjet systems operating at 60,000-94,000 PSI

• Compatible with BFT intensifier assemblies CP022001/2 and HT022012/172

Features:

• Stainless Steel Construction: Manufactured from high-grade, corrosion-resistant stainless steel for long-term fatigue life under cyclic loading

• Precision-Wound Design: Manufactured to exact tolerances to ensure consistent spring force and reliable operation under high cycle rates

• Critical Timing Component: Directly affects the precise operation of the intensifier's hydraulic control and shift timing

• Lightweight: Approximately 0.001 kg (1 gram) for easy handling during maintenance

• Cross-Reference Compatibility: Interchangeable with part numbers listed in BFT intensifier assemblies

Maintenance:

When to Replace (Failure Diagnosis):

• Erratic Intensifier Shifting: If the intensifier fails to shift direction properly, cycles irregularly, or exhibits inconsistent timing, a fatigued or broken spring may be the cause

• Pressure Fluctuations: Inability to maintain stable cutting pressure or pressure oscillations may indicate spring fatigue

• Valve Malfunctions: Slow or incomplete valve actuation can result from a compression spring that has lost its elasticity

• External Leakage: Worn springs can lead to incomplete valve seating, resulting in high-pressure water leaks

• Visible Damage During Disassembly: When the intensifier is opened for maintenance, inspect the spring for signs of permanent deformation (shortening), cracking, or corrosion. Compare its free length to manufacturer specifications

• Scheduled Preventive Maintenance: This is a high-cycle wear component. It should be replaced during major pump overhauls (typically based on operating hours) or immediately if the intensifier exhibits erratic shifting behavior

Inspection and Replacement Guidelines:

• Always Replace Worn Springs: A compression spring that has lost tension or shows signs of fatigue cannot be restored and must be replaced

• Full Depressurization (Critical): Before any maintenance, place the main electrical disconnect in the OFF position, bleed down all high-pressure lines, and follow lockout/tagout procedures

• Clean Installation: Ensure the spring cavity is clean and free of debris before inserting the new spring

• Replace as Part of Complete Set: When servicing the hydraulic control section, it is recommended to inspect and potentially replace all springs in the assembly simultaneously to ensure balanced performance

• Torque Compliance: When reassembling the intensifier, tighten all retaining components to the torque values specified in the equipment service manual

• Cross-Reference Information: This helical spring is listed as Item 18 in BFT intensifier CP022001/2 parts list
