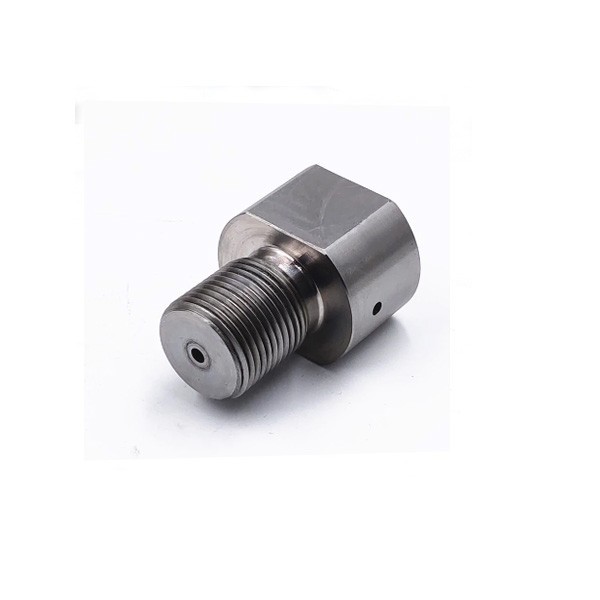

Product Name: High-Pressure Adapter / Waterjet Adapter (Part No. WJ100037/152)

Description:
This component is a high-pressure adapter specifically designed for waterjet cutting systems. It is a precision-machined stainless steel fitting used to connect and adapt between different high-pressure components, ensuring stable fluid transfer and a secure, leak-free seal in ultra-high pressure environments up to 60,000 PSI (approximately 4,137 bar) and higher .

The adapter serves as a critical interface within the high-pressure water circuit, connecting components such as the on/off valve (water switch), check valve body, intensifier pump outlet, and high-pressure tubing or cutting head assemblies . It is also described as an "adapter insert" that may have a specialized internal geometry for guiding water flow . The part number WJ100037/152 is an OEM replacement for BFT/H2O Jet waterjet systems and may be cross-referenced with other industry part numbers .

Applications:

• Connects the water on/off valve body to the cutting head assembly or high-pressure water lines

• Serves as an interface adapter between the check valve body and high-pressure tubing or outlet plumbing

• Installed between the high-pressure pump outlet and manifolds, valves, or cutting head inlet ports

• Used during initial machine installation, system modifications, or when replacing damaged or leaking adapters

• Compatible with BFT, H2O Jet, KMT, Flow, OMAX, and other standard waterjet systems

Features:

• High-Strength Stainless Steel Construction: Provides excellent corrosion resistance and structural integrity under extreme pressure cycling

• Precision-Machined Threads and Sealing Surfaces: CNC-machined to exact tolerances for a perfect fit and reliable metal-to-metal sealing

• High-Pressure Rating: Engineered for continuous operation at 60,000–94,000 PSI (approximately 4,137–6,480 bar)

• Semi-Wear Part Classification: While not a regular consumable like seals, the adapter is subject to thread wear, sealing surface damage, cracking, or deformation over time due to ultra-high pressure, vibration, mechanical stress, and repeated installation cycles

• Direct OEM Replacement: Interchangeable with manufacturer OEM specifications for a reliable fit in standard waterjet assemblies

Maintenance:

Failure Diagnosis (When to Inspect/Replace):

• External Water Leakage: Visible high-pressure water weeping from the adapter connections indicates thread damage, cone seat wear, or improper torque. All high-pressure leaks must be repaired immediately .

• Pressure Drop: Inability to maintain rated cutting pressure may indicate internal leakage or damaged sealing surfaces

• Thread Damage: Stripped, galled, or corroded threads prevent proper tightening and will cause high-pressure leaks

• Visible Cracks or Deformation: Any cracking, bending, or distortion of the stainless steel body warrants immediate replacement

• Cone Seat Damage: Nicks, galling, pitting, or deformation on the 60-degree cone sealing surface will compromise the seal

• Difficult Assembly: If the adapter feels gritty or binds during threading, threads may be damaged

• Scheduled Preventive Maintenance: It is recommended to inspect adapters during major pump overhauls or periodic maintenance; if signs of wear or leakage are detected, the adapter should be replaced promptly

Inspection and Replacement Guidelines:

• Full Depressurization (Critical): Before any maintenance, place the main electrical disconnect in the OFF position, bleed down all high-pressure lines, and follow lockout/tagout procedures. Never service a pressurized HP line

• Visual Inspection: Before installation, thoroughly inspect the adapter body, threads, and cone sealing surfaces for nicks, galling, corrosion, or damage. Examine for any signs of cracking or deformation

• Thread Cleaning: Clean all threads thoroughly with a soft brush and compatible solvent. Remove all debris, old sealant, and mineral deposits

• Lubrication: Apply a thin, even layer of high-pressure anti-seize lubricant (e.g., “Blue Goop” or “Silver Grade”) to the male threads only. Do not apply lubricant to the cone sealing surfaces

• Torque Compliance (Critical): Tighten the adapter to the specific torque value listed in the equipment service manual using a calibrated torque wrench. Use a second wrench to counter-hold the adapter body to prevent twisting stress

• Proper Seating: Ensure the adapter is fully seated and correctly oriented before tightening

• Replacement Criteria: Replace the adapter immediately if threads are damaged, cone seats are pitted or deformed, cracks are visible, or persistent leakage occurs despite correct installation . Do not attempt to repair a cracked or severely damaged adapter

• Inspect Mating Components: When replacing the adapter, inspect the mating port threads and sealing surfaces on the valve body or manifold for damage

• Storage: Store spare adapters in a clean, dry environment to protect precision threads and sealing surfaces from damage before use

Cross-Reference Information:

• BFT / H2O Jet #: WJ100037/152

• Also known as: HP Adapter, Waterjet Adapter, Adapter Insert , Check Valve Adapter

• Component of BFT/H2O Jet waterjet intensifier systems

• Rated Pressure: 60,000–94,000 PSI (4,137–6,480 bar)

• Material: High-grade stainless steel
