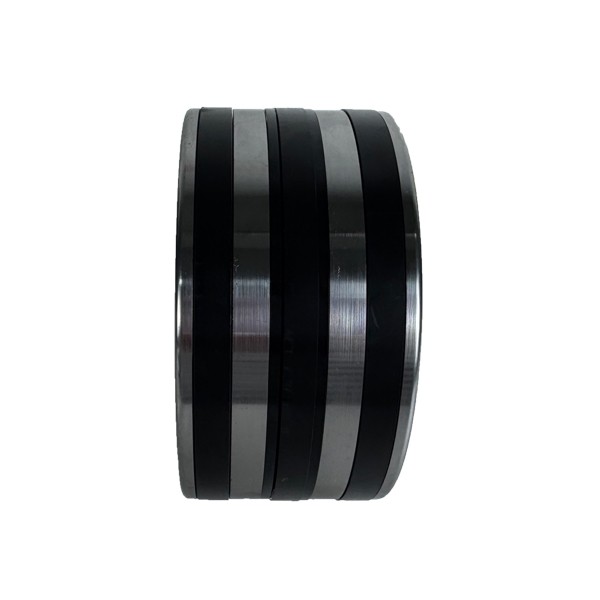

Product Name: APW Piston Seal Assembly / Hydraulic Piston Seal Kit

Description:

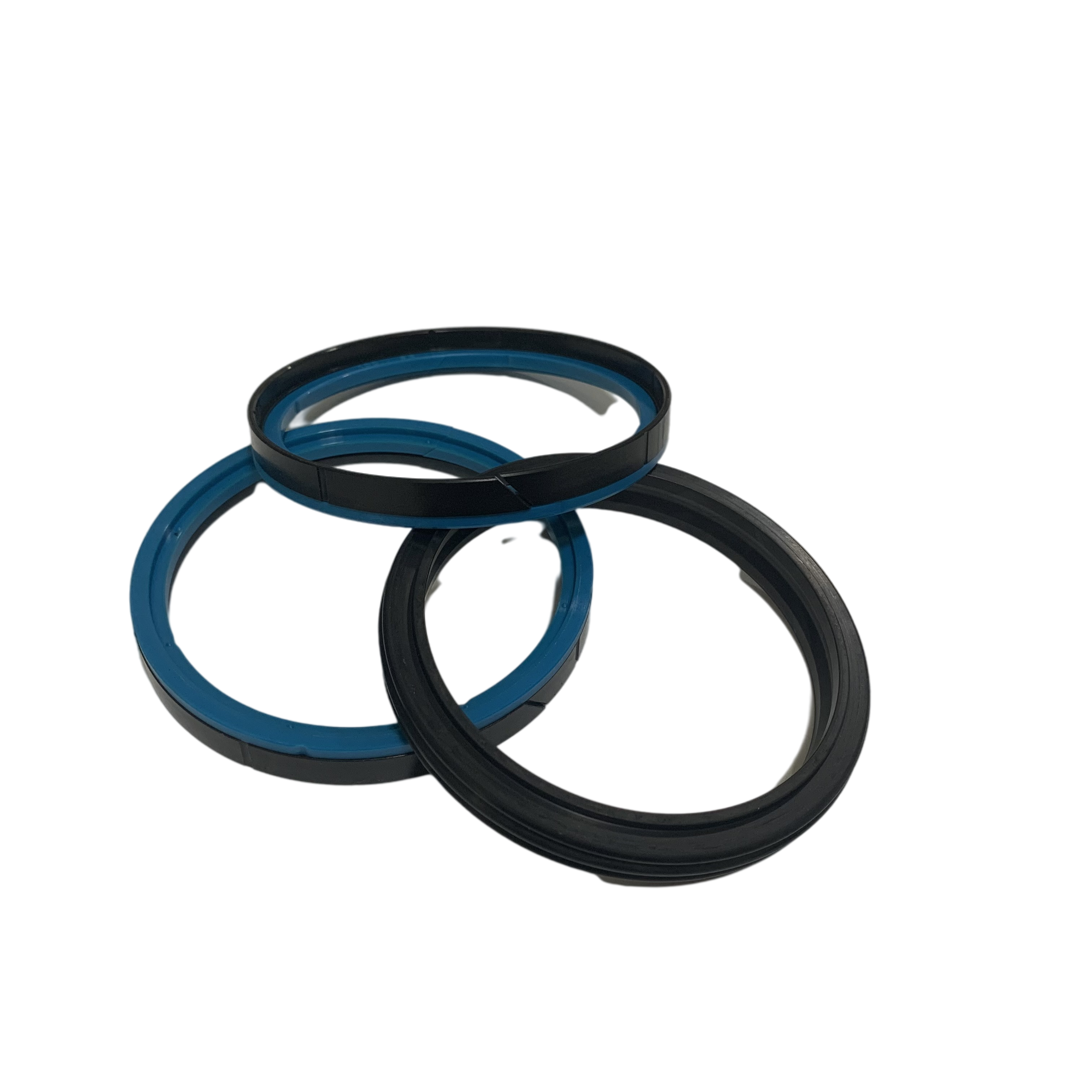

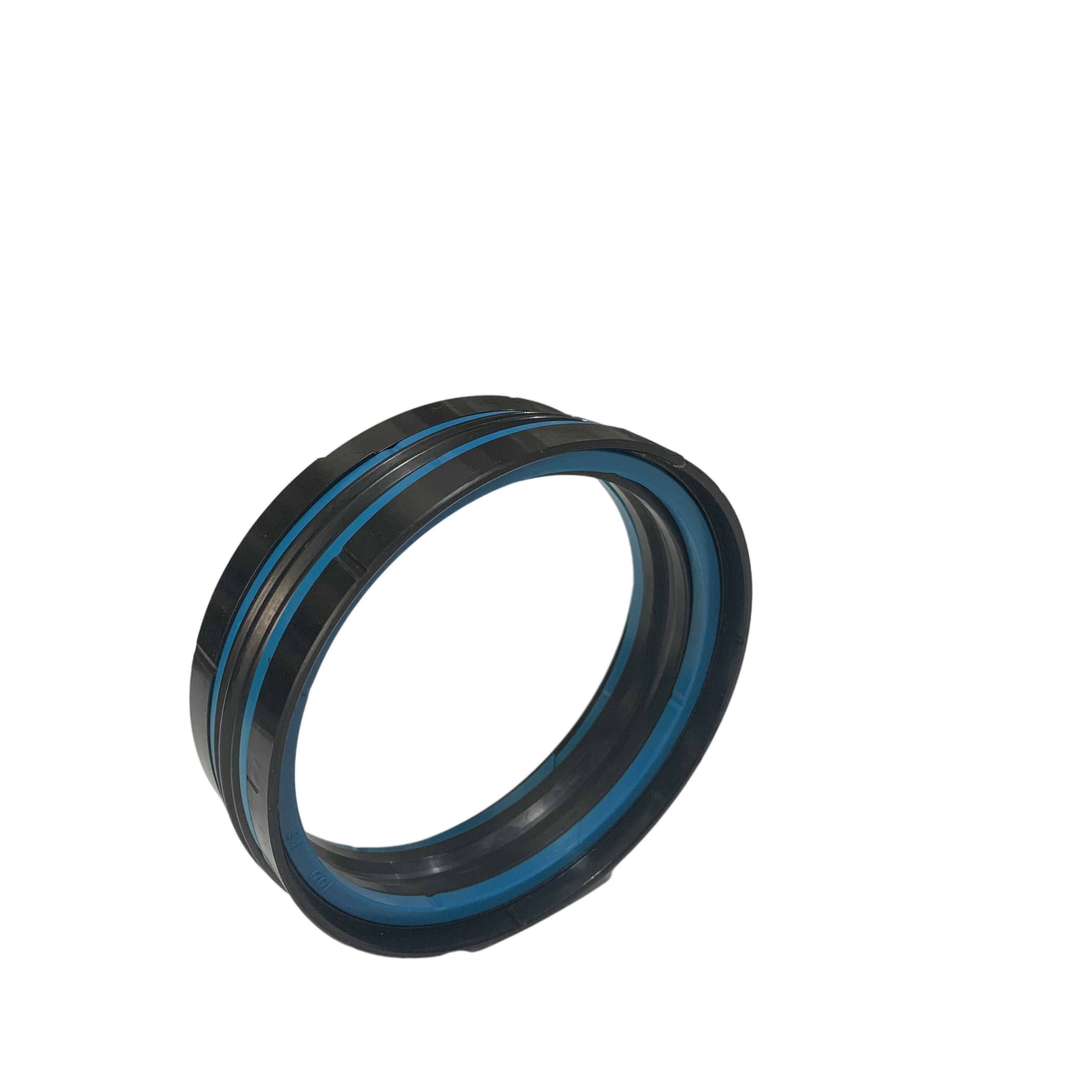

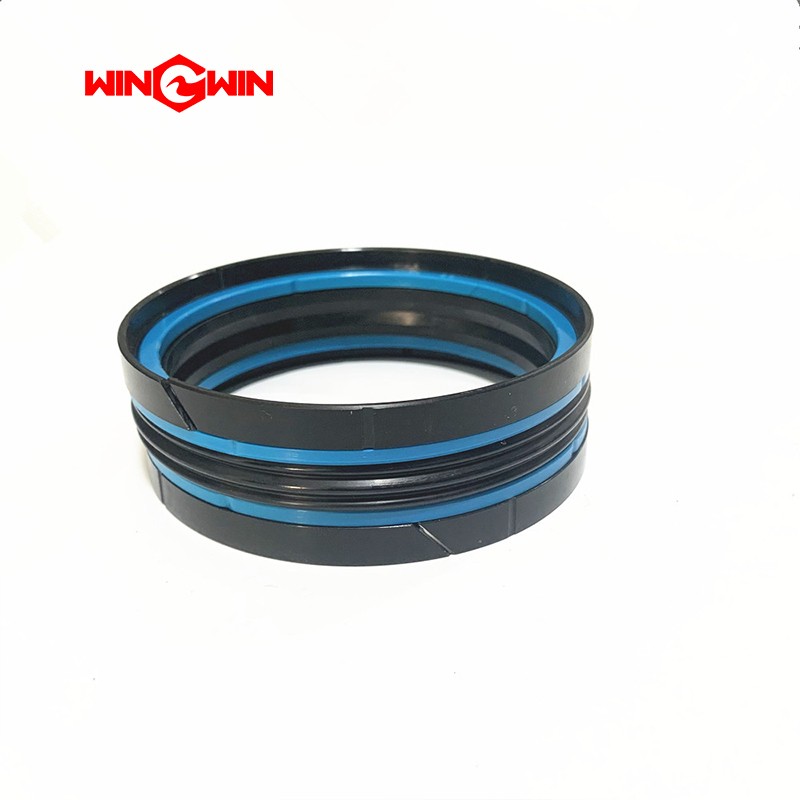

This component is a piston seal assembly, also known as a hydraulic piston seal kit or plunger seal assembly, specifically designed for APW series waterjet intensifier pumps. It is a critical sealing component that provides leak-free dynamic sealing between the reciprocating hydraulic piston and the cylinder bore within the intensifier pump. The assembly typically includes multiple sealing elements such as U-rings, T-seals, O-rings, backup rings, and wear guides made from high-performance materials.

In waterjet intensifier operation, the piston is positioned at the center of the pressure system, where hydraulic pressure drives the piston to compress water to ultra-high cutting pressures. The piston seal assembly is critical for preventing hydraulic oil leakage and maintaining system efficiency.

Applications:

• Provides dynamic sealing between the hydraulic piston and cylinder bore in APW waterjet intensifier pumps

• Prevents hydraulic oil bypass and maintains system pressure during reciprocating piston motion

• Suitable for ultra-high pressure waterjet systems operating at 60,000 PSI (approximately 4,137 bar)

• Compatible with APW series intensifier pumps of various power ratings

Features:

• Complete Seal Kit: Includes all necessary sealing components for a full piston seal replacement, typically including U-rings, T-seals, O-rings, backup rings, and wear guides

• Multi-Material Construction: Manufactured from high-performance materials including polyurethane, rubber, and specialized elastomers for optimal wear resistance and sealing performance

• High-Pressure Rating: Engineered for continuous operation at ultra-high pressure without seal extrusion or failure

• Low-Friction Design: Precision-machined sealing surfaces minimize friction and heat generation during reciprocating motion

• Durable Construction: Designed to withstand high cycle rates and extreme pressure conditions typical of waterjet intensifier operation

• OEM Compatibility: Direct replacement part for APW waterjet systems

Maintenance:

• Expected Service Life: Under normal operating conditions, piston seals typically require replacement every 200-500 operating hours. However, actual service life depends on operating pressure, cycle frequency, hydraulic oil cleanliness, and water quality

• Performance Monitoring Indicators: Replace the piston seal assembly when any of the following symptoms appear:

• Visible hydraulic oil leakage from the pump

• Inability to maintain rated cutting pressure

• Erratic pump cycling or slow reversal

• Increased hydraulic oil consumption

• Oil contamination in the water system or water in the hydraulic oil

• Inspection During Overhaul: When replacing piston seals, thoroughly inspect the piston surface and cylinder bore for scoring, pitting, scratching, or uneven wear. A damaged piston or cylinder will rapidly destroy a new seal assembly

• Hydraulic Oil Cleanliness (Critical): Maintain proper hydraulic oil cleanliness to prevent premature seal wear. Contaminated oil with impurities will severely wear the piston seal and cylinder bore

• Proper Installation: During installation, lubricate new seals generously with manufacturer-recommended hydraulic oil or assembly lubricant to prevent dry startup and reduce initial friction. Use proper installation tools to avoid twisting, pinching, or cutting seals

• Full Depressurization: Always fully depressurize both the hydraulic system and the high-pressure water system before removing or servicing the piston seal assembly. Follow lockout/tagout procedures

• Surface Preparation: Thoroughly clean the piston, cylinder bore, and seal grooves using a soft cloth and clean hydraulic oil before installing new seals. Remove all debris, old seal residue, and contaminants

• Complete Kit Replacement: Replace all seals in the kit as a complete set. Do not reuse individual seals from an old assembly or mix old and new components

• Torque Compliance: When reinstalling piston components, tighten all retaining nuts and hardware to the specific torque values listed in the equipment service manual

• Storage: Store spare seal assemblies in a clean, dry environment in sealed protective packaging away from direct sunlight, ozone, heat, and chemicals to prevent material degradation before use

• Quality Note: APW piston seal assemblies are manufactured under quality control procedures following PDCA continuous improvement processes to ensure safety, efficiency, and stability
