English Translation of Title:
Flat Washer for Water Jet Cutting Machine Parts – M10, Model No. 49883580-Flat-Washer-M10.1276.3-1

Introduction, Application, Features, and Maintenance:

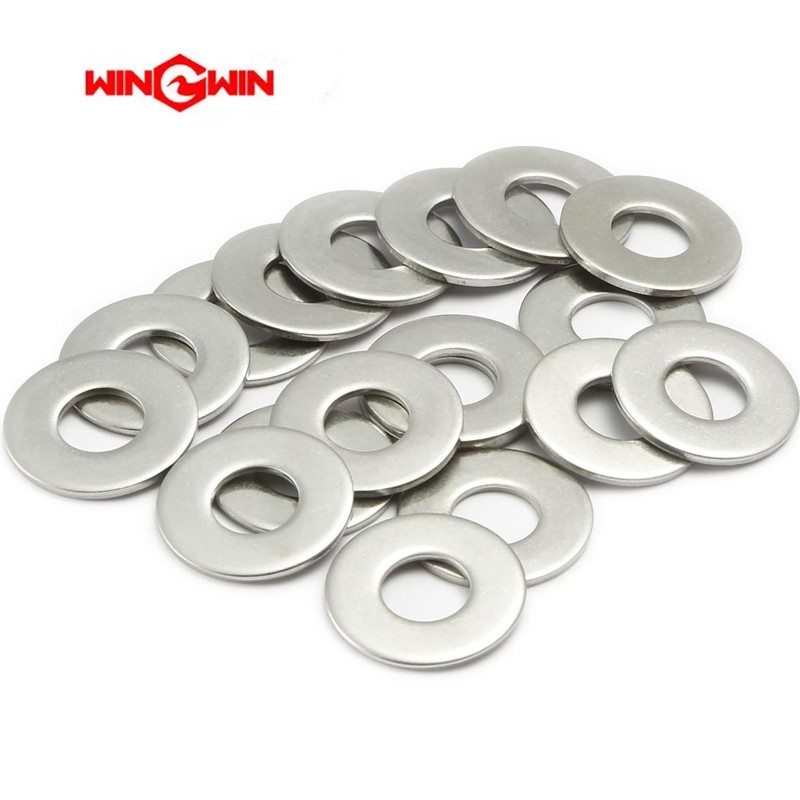

This component is a flat washer designed for water jet cutting systems. It is a thin, disc‑shaped fastener with a central hole, sized for M10 bolts or screws, used to distribute load, reduce friction, and prevent damage to mating surfaces.

Application:
Used under bolt heads or nuts in water jet cutting machines to provide a smooth bearing surface, prevent loosening, and protect components from damage. Typical installations include mounting brackets, pump assemblies, covers, guards, and structural frame connections.

Features:

• Sized for M10 bolts or screws (10 mm nominal diameter).

• Distributes clamping load evenly over a larger surface area.

• Prevents surface damage to components from bolt heads or nuts.

• Manufactured from high‑strength, corrosion‑resistant material suitable for harsh water jet environments.

• Reduces friction during tightening for accurate torque application.

• Standard dimensions ensure compatibility with M10 fasteners.

Maintenance:

• Regularly inspect the washer for signs of corrosion, deformation, or wear.

• Check for proper seating under bolt heads or nuts.

• Replace immediately if the washer is deformed, cracked, or corroded.

• Ensure the washer is the correct size for the bolt being used.

• Use a new washer when reassembling components to ensure proper load distribution.
