English Translation of Title:

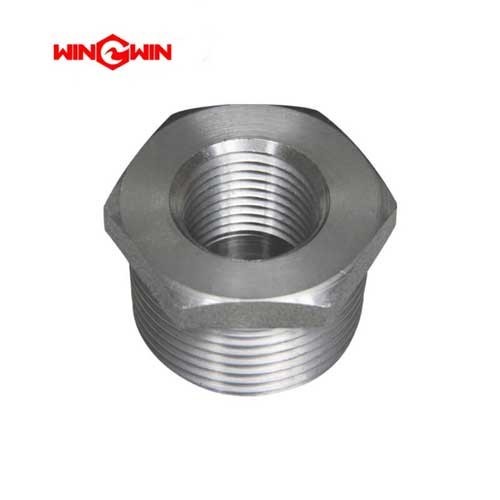

Pipe Bushing for Water Jet Cutting Machine Parts – 75 x 50, Model No. 10103448-Bushing-Pipe-75-x-50.1329.3-1

Introduction, Application, Features, and Maintenance:

This component is a pipe bushing designed for water jet cutting systems. It is a threaded reducing fitting used to connect two pipes or fittings of different sizes, reducing from a larger 75 mm connection to a smaller 50 mm connection.

Application:
Used to adapt and connect high-pressure or low-pressure piping of mismatched sizes in water jet cutting machines. Typical installations include pump discharge lines, cooling water circuits, abrasive slurry return lines, or drainage systems where a size reduction from 75 mm to 50 mm is required.

Features:

• Designed for low to high-pressure applications depending on system configuration.

• Reduces from 75 mm to 50 mm nominal size.

• Threaded ends allow secure, leak-proof connections with compatible fittings.

• Manufactured from high-strength, corrosion-resistant material suitable for water and abrasive slurry exposure.

• Compact design minimizes additional space requirements.

• Straight-through design maintains flow with minimal pressure loss.

Maintenance:

• Regularly inspect the bushing body and threads for signs of erosion, cracking, thread damage, or corrosion.

• Check both connection ends for leakage during machine operation.

• Replace immediately if any surface pitting, deformed threads, or leakage is detected.

• Use appropriate thread sealants or tapes as recommended for the connection type.

• Follow specified torque values when tightening adjacent fittings.
