English Translation of Title:

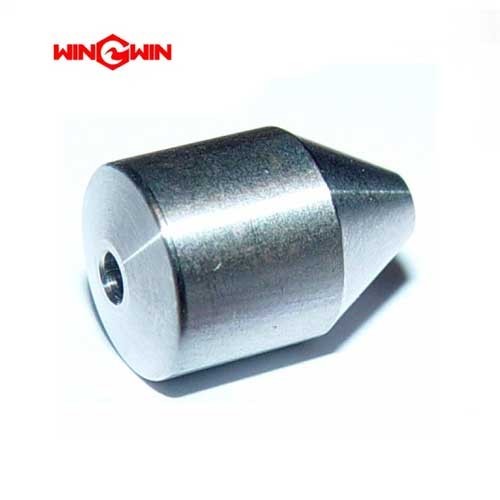

High-Pressure Cone Adapter for Water Jet Parts – 25 mm, Model No. 10116333-Waterjet-Parts-HP-Cone-Adapter--25.944.3-1

Introduction, Application, Features, and Maintenance:

This component is a high-pressure cone adapter designed for water jet cutting systems. It is a tapered fitting used to connect two high-pressure components with different connection types or sizes, featuring a conical sealing interface for reliable leak-free performance.

Application:
Used to adapt and seal connections between high-pressure lines, fittings, or components in water jet cutting machines. Typical installations include connecting the high-pressure pump outlet to the cutting head supply line, joining attenuator outlets to downstream piping, or adapting between different thread or port standards.

Features:

• Rated for extreme pressures common in water jet cutting, up to 6,000 bar (87,000 psi).

• Tapered cone design provides a metal-to-metal sealing interface for reliable high-pressure containment.

• Designed for 25 mm nominal size connections.

• Manufactured from high-strength, corrosion-resistant material suitable for abrasive water jet media.

• Precision-machined sealing surfaces ensure leak-free operation.

• Facilitates smooth transition between different connection types or standards.

Maintenance:

• Regularly inspect the cone sealing surfaces for signs of galling, erosion, deformation, or damage.

• Check both connection ends for high-pressure leakage during machine operation.

• Replace the adapter immediately if sealing surfaces are damaged or if pressure loss is observed.

• Do not reuse a damaged cone adapter, as proper sealing cannot be guaranteed.

• Always use compatible seals, washers, or mating components as required.

• Follow specified torque values when tightening connections.
