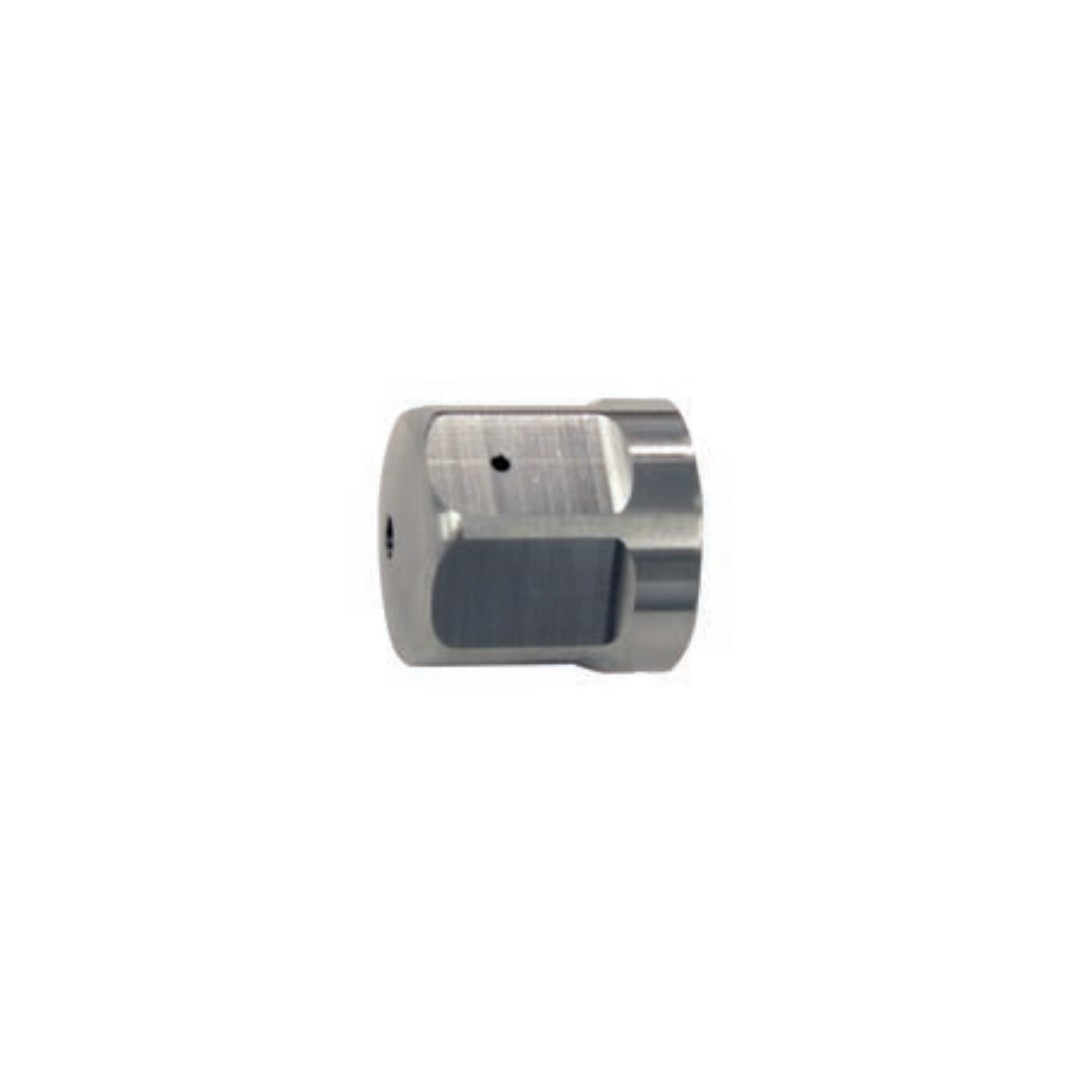

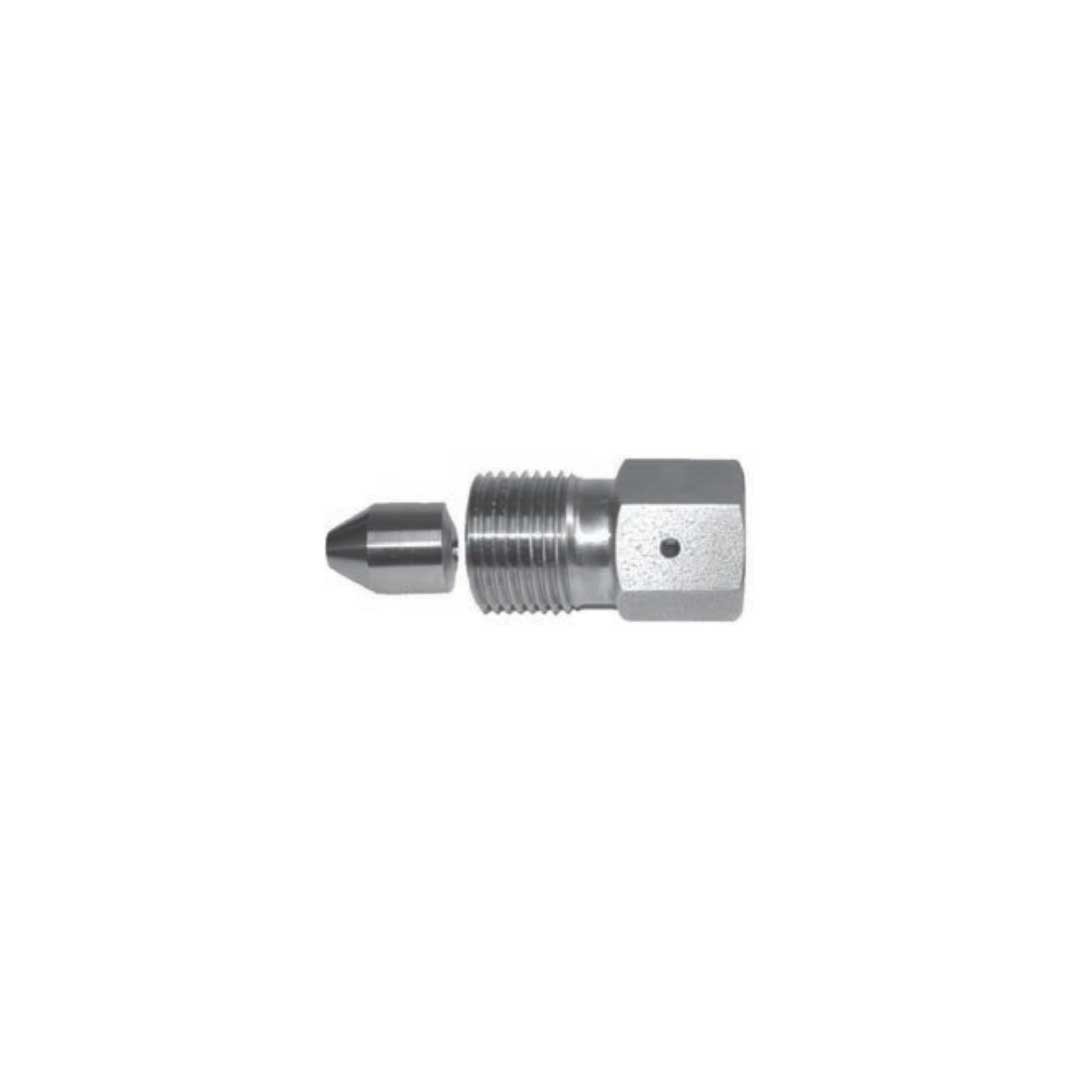

Product Name: Short Stop Filter Body (Part No. 301026-4)

Description:
This component is the main stainless steel housing for the Short Stop filter assembly used in waterjet cutting systems. It is installed at the cutting head mounting collar, positioned as the final filtration stage in the high-pressure water line immediately before the water enters the orifice assembly. The filter body is a critical protective component designed to capture microscopic contaminants and stray particles that could otherwise damage the waterjet's cutting head orifice. It works in conjunction with a removable fine mesh screen element. This part is an OEM replacement housing rated for continuous operation at 60,000 PSI (approximately 4,137 bar) and above.

Applications:

• Installed at the cutting head mounting collar as the final filtration stage before the orifice assembly

• Holds the removable mesh filter element that captures debris before it reaches the cutting head orifice

• Serves as the interface between the high-pressure water supply line and the cutting head orifice assembly

• Compatible with Short Stop filtration systems used on ultra-high pressure waterjet cutting equipment

Features:

• High-Strength Stainless Steel Construction: Manufactured from corrosion-resistant stainless steel to withstand harsh waterjet environments and extreme pressure cycling

• Final Stage Filtration Housing: Positions the mesh filter element as the last line of defense before water reaches the precision orifice

• Serviceable Design: Allows easy access to the internal filter element for regular cleaning or replacement

• Critical Protection Component: Essential for preventing orifice damage from microscopic debris

• Direct OEM Replacement: Specifically manufactured for Short Stop filter systems

Maintenance:

Failure Diagnosis:

• External Water Leakage: High-pressure water weeping from the filter body connections indicates seal failure or a cracked housing

• Gradual Pressure Drop: A slow decline in cutting pressure may indicate a clogged filter element inside the body, requiring cleaning or replacement

• Premature Orifice Wear: Frequent replacement of jewel orifices suggests the Short Stop filter is not being serviced regularly

• Visible Cracks or Deformation: Any cracking or distortion of the stainless steel body warrants immediate replacement

Inspection and Replacement Guidelines:

• Full Depressurization (Critical): Before any maintenance, fully depressurize the waterjet system, disconnect the high-pressure water supply, and follow lockout/tagout procedures

• Regular Cleaning: The mesh filter element inside the body should be cleaned periodically to maintain proper flow and protection

• Housing Inspection: During servicing, inspect the filter body bore and sealing surfaces for pitting, erosion, or scoring

• Seal Replacement: Always replace any O-rings or seals associated with the filter body during service to prevent external high-pressure water leaks

• Replacement Indicators: Replace the filter body immediately if cracks are visible, threads are damaged, the internal bore is severely eroded, or persistent leakage occurs

• Cross-Reference Part Numbers: This filter body is used with Short Stop filter elements and may be cross-referenced with other industry-standard part numbers
